40mm Flange Thickness Hydraulic Mechanical H Profile Steel Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-800
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic or Mechanical Type H Beam Straightener
- Max Flange Thickness：40mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1000mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
The flange straightening machine is a straightening equipment specially used for welding H-beam and T-beam steel structure.
Sand rust removal - spray paint, in order to complete the complete production line process.
The H-shaped steel structure plate goes through automatic slitting-CNC plasma flame cutting-automatic assembly--automatic submerged arc welding--flange straightening --web straightening-end face milling processing-sand blasting and rust removal-painting to complete the complete production line process.
Specification:
380V 50HZ(Can be customized)
Note:We can do customized machine,please feel free to tell us your H beam specification.
We will help you to choose suitable H beam flange automatic straightening machine.
With foundation or without is according to your needs.
The thickness and width as the following table, made of Q235A:

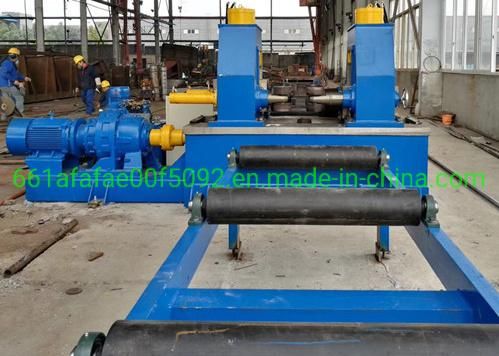

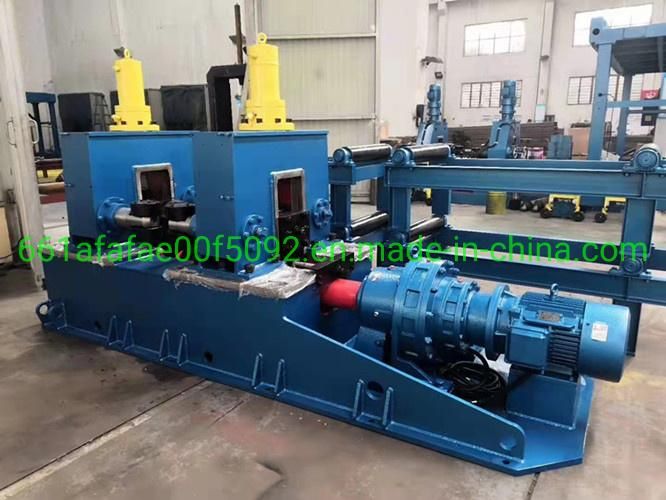

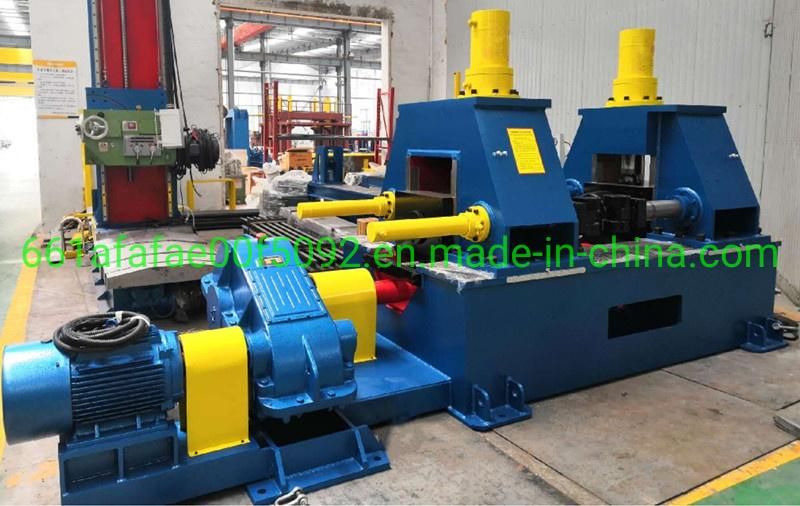

The flange straightening machine is compact in structure, easy to operate, and easy to maintain and repair.
Component:
Drive motor
Cycloid reducer
Upper roll device
Drive roller
Guide roller
Flange straightener frame and base
Electronic control devices, etc.
Installation steps of steel H-beam flange straightening machine:
1. The installer should clean and decontaminate the various parts of the H-beam flange plate straightening machine
2. Install the base according to the basic drawing we provide, and do the second glue filling
3. The roller surface of the driving roller must be 3-5mm higher than the front and rear roller surfaces
4. Check the lubricating parts before the test run, and carry out full lubricating work for the equipment
FAQ:
1. How to choose hydraulic type and mechanical type for H-beam flange plate straightening machine?
We can customize the H-beam flange plate straightening machine for you according to the size requirements of the H-beam.
Generally, the mechanical H-beam T-beam straightening machine is suitable for the thickness of the flange plate <=40mm, and the hydraulic steel structure straightening machine is suitable for the thickness of the flange plate 40mm~80mm.
2. In addition to the flange plate straightening machine, what other equipment is required for the production of H-beam and box-beam production lines?
The type of equipment and the quantity purchased need to be based on the layout of your company's on-site factory. Before purchasing the machine, we recommend that the customer send us the factory layout plan for design.

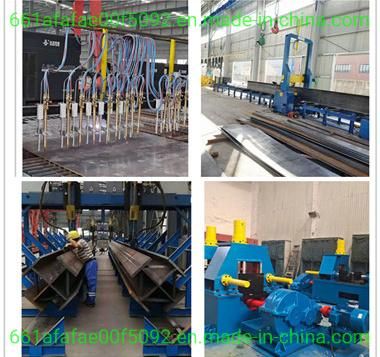

A complete H-beam box beam production line includes:
CNC Plasma Flame cutting machine-Automatic assembly machine with gas shield welder-Gantry type Submerged arc or gas shield welding machine-H beam flange straightener-End face milling machine.
If for Box beam production need Electroslag welding machine, Box beam assembly machine and spot welding machine, etc.
3. How to provide installation service?
Under normal circumstances, we will arrange engineers to go to your factory for on-site installation guidance. But for now, due to the global virus outbreak, we currently offer installation instruction manuals, as well as online video instructions. These installation manuals have been able to ensure that customers can successfully complete the installation and commissioning of the machine
4. How to visit your company?
We can pick you up from Shanghai Pudong International Airport, Hongqiao International Airport or Wuxi Airport. Or Wuxi Railway Station.
5. What should I do if the machine is broken?
The warranty period for our machines is 12 months. If the damaged parts cannot be repaired, we can send new parts to replace the damaged parts, but you need to pay for the courier yourself. After the warranty period, we can negotiate and provide technical support for the entire life cycle of the equipment.

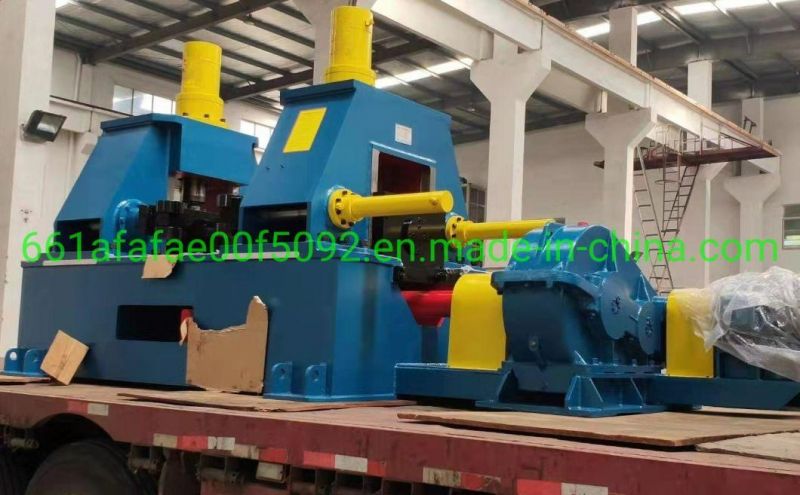

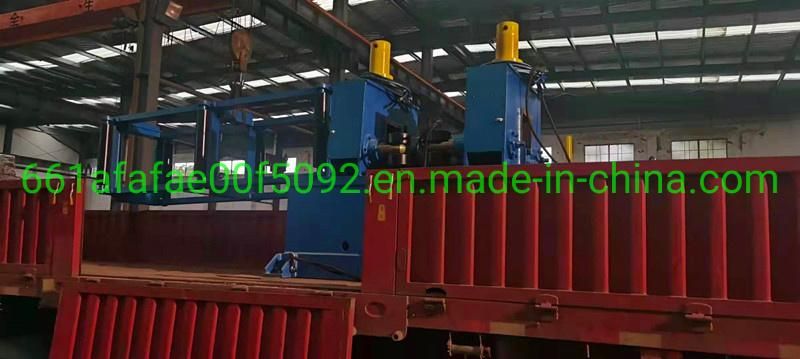

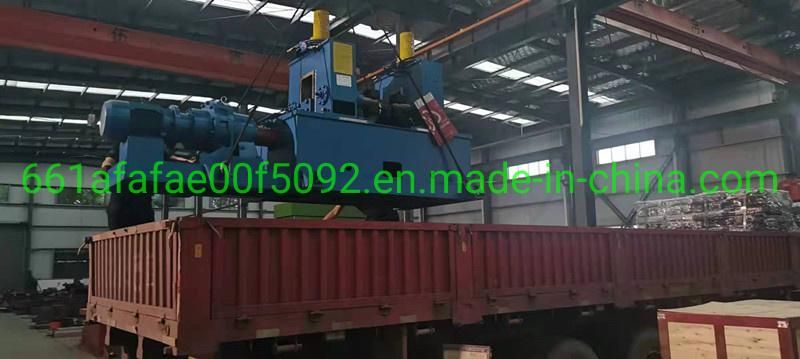

6. Can you be responsible for shipping?
Yes, please tell us the port of destination or address. We have rich experience in transportation. FOB, CIF or EXW will do price calculation according to your needs.
7. Do you provide OEM service?
Of course, we can design equipment based on the structural section data you provide. We are a professional designer and manufacturer of H-beam production line equipment and automatic pipe welding equipment.
