• Model NO.：60DF
• Output Allowable Redial Load (Kgf)：138
• Output Allowable Axial Load (Kgf)：140
• Input Allowable Redial Load (Kgf)：97
• Input Allowable Bending Moment (Kgf)：148
• Indexing Accuracy (Sec.)：+45 or -45
• Weight (Kg)：15
• Guarantee Period：One Year
• Usage：for Disk-Type Processing Machinery
• Motor Reducer：Matched
• Transport Package：Box
• Specification：60DF
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 60DF Output Allowable Redial Load (Kgf) 138 Output Allowable Axial Load (Kgf) 140 Input Allowable Redial Load (Kgf) 97 Input Allowable Bending Moment (Kgf) 148 Indexing Accuracy (Sec.) +45 or -45 Weight (Kg) 15 Guarantee Period One Year Usage for Disk-Type Processing Machinery Motor Reducer Matched Transport Package Box Specification 60DF Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1. 60DF Cam Indexer / Cam Index Drive / Rotary Indexer with Motor Reducer Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

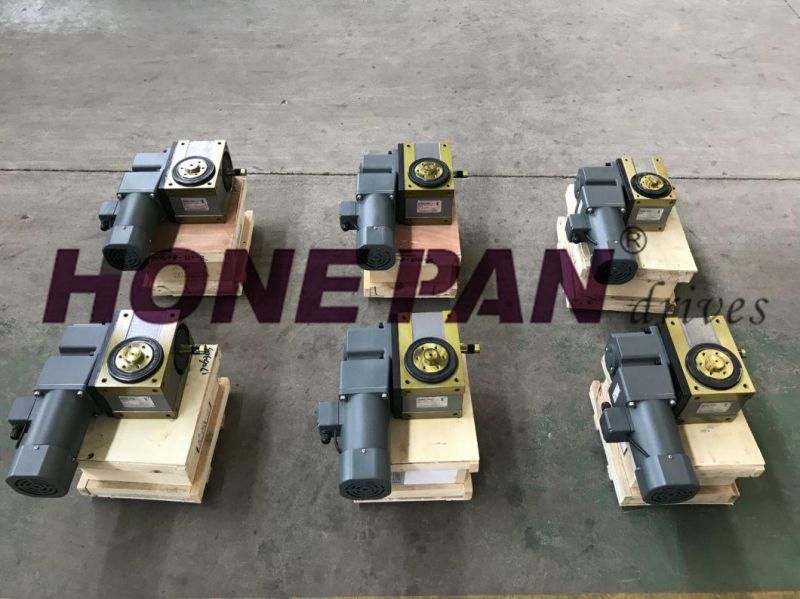

Cam Indexer / Cam Index Drive / Rotary Indexer  (DF) introduction:
The end of output is flange. It is suitable for all kinds of dial machines.

Cam Indexer / Cam Index Drive / Rotary Indexer with Motor Reducer  (DF) includes: 38DF, 45DF, 60DF, 63DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 150DF, 180DF, 200DF, 250DF, 350DF. .

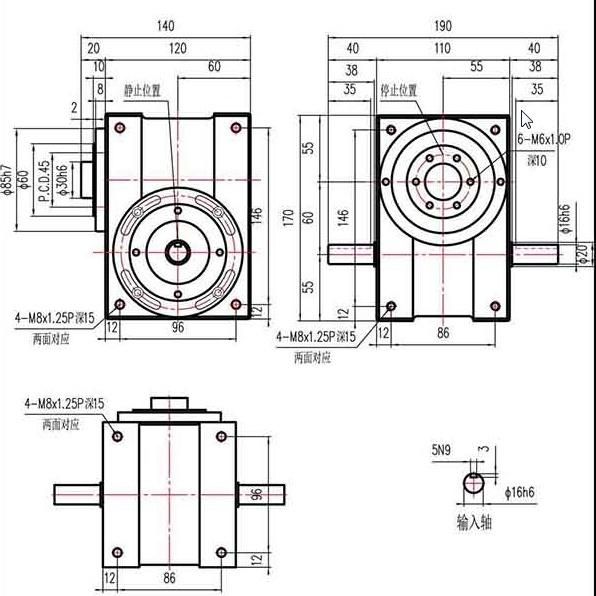

3.Specification of 60DF Cam Indexer / Cam Index Drive / Rotary Indexer:




Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	138
Output allowable axial load	C2	kgf	140
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	97
Input maximum bending moment	C4	Kgf	148
Input maximum torque	C5	Kgf-m	5.8
GD2 of input shaft (note 1)	C6	Kgf-m2	1.9×10-3
Indexing accuracy		Sec.	±45
Weight		Kg	15

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.
