• Model NO.：140DF
• Output Allowable Redial Load (Kgf)：755
• Output Allowable Axial Load (Kgf)：995
• Input Allowable Redial Load (Kgf)：545
• Input Allowable Bending Moment (Kgf)：705
• Indexing Accuracy (Sec.)：+30 or -30
• Weight (Kg)：92
• Guarantee Period：One Year
• Usage：for Automation Machines
• Transport Package：Box
• Specification：140DF
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 140DF Output Allowable Redial Load (Kgf) 755 Output Allowable Axial Load (Kgf) 995 Input Allowable Redial Load (Kgf) 545 Input Allowable Bending Moment (Kgf) 705 Indexing Accuracy (Sec.) +30 or -30 Weight (Kg) 92 Guarantee Period One Year Usage for Automation Machines Transport Package Box Specification 140DF Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

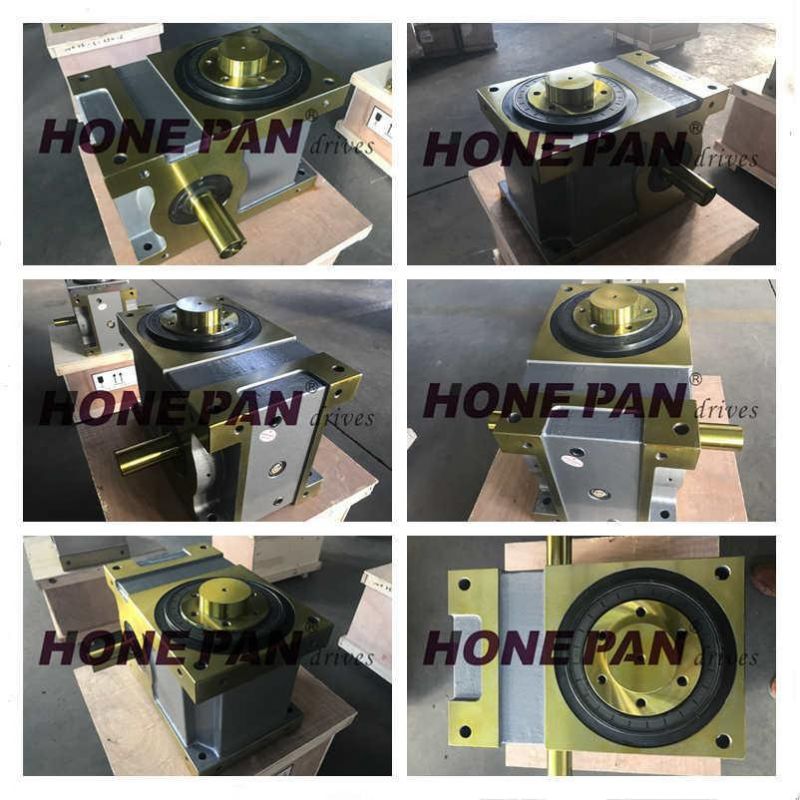

1. China High Precision Cam Indexer/ Rotary Cam Indexer/ Cam Indexing Drive 140DF (DF Series) Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

China High Precision Cam Indexer/ Rotary Cam Indexer/ Cam Indexing Drive (DF Series) introduction:
The end of output is flange. It is suitable for all kinds of dial machines.

China High Precision Cam Indexer/ Rotary Cam Indexer/ Cam Indexing Drive 140DF (DF Series) includes: 38DF, 45DF, 60DF, 63DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 150DF, 180DF, 200DF, 250DF, 350DF.

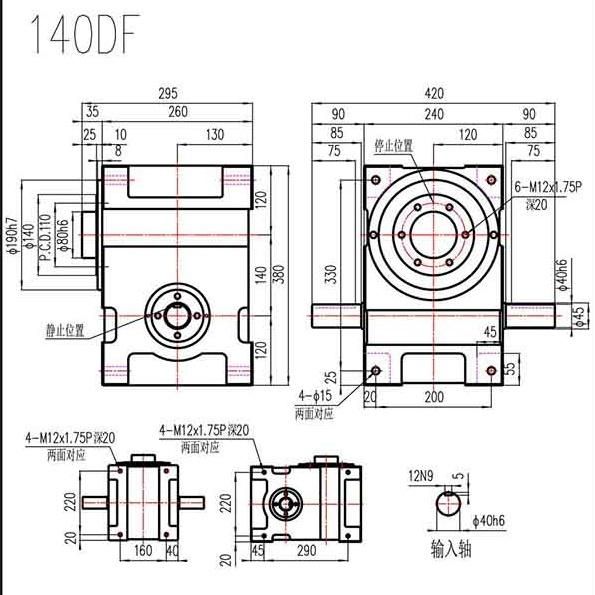

3.Specification of China High Precision Cam Indexer/ Rotary Cam Indexer/ Cam Indexing Drive 140DF:





Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	755
Output allowable axial load	C2	kgf	995
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	545
Input maximum bending moment	C4	Kgf	705
Input maximum torque	C5	Kgf-m	98
GD2 of input shaft (note 1)	C6	Kgf-m2	0.11
Indexing accuracy		Sec.	±30
Weight		Kg	92

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

4. Company, Packaging & Shipment



5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your  requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

3) how about the packaging and shipment?

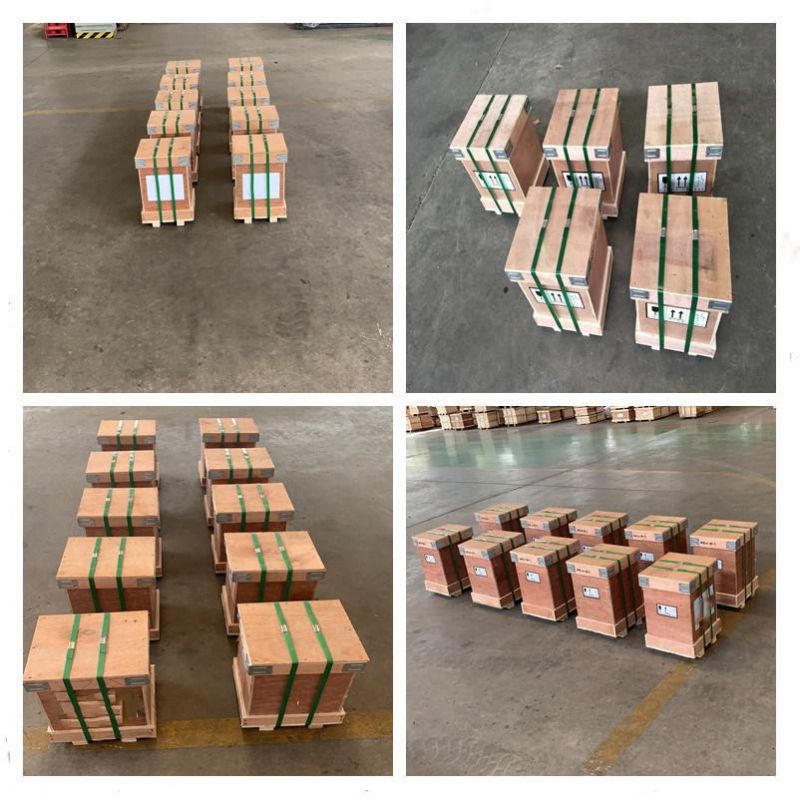

    Packaging : in box (wooden case).
