High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Powder Coating Booth
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Condition：New
- Name：Powder Coating Booth for Small Workpiece
- Size：W4900mm*H2000mm*D1500mm
- Powder Recovery System：Filter Cartridge for The Booth
- Filters Qty：4sets*2
- Solenoid Valves：4pieces*2
- Exhaust Fan：1set*2
- Fan Power：5.5kw*2
- Lights：1set
- Control Box：English,Chinese Panel, Other Languages for Option
- Drawings：Available
- User Manual：Available
- Installation Drawings：Available
- Voltage：380V,3f&220V,1f@50Hz, Others for Option
- Shipment：Assembled for Easy Transport.
- Transport Package：Standard Package for Sea Transport
- Specification：8cbm for LCL
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100sets Per Month
Description
Basic Info.
Condition New Name Powder Coating Booth for Small Workpiece Size W4900mm*H2000mm*D1500mm Powder Recovery System Filter Cartridge for The Booth Filters Qty 4sets*2 Solenoid Valves 4pieces*2 Exhaust Fan 1set*2 Fan Power 5.5kw*2 Lights 1set Control Box English/Chinese Panel, Other Languages for Option Drawings Available User Manual Available Installation Drawings Available Voltage 380V/3f&220V/1f@50Hz, Others for Option Shipment Assembled for Easy Transport. Transport Package Standard Package for Sea Transport Specification 8cbm for LCL Trademark Hongyuan Origin Shandong, China Production Capacity 100sets Per MonthProduct Description
Introduction of the powder coating spray technologyPowder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as household appliances, aluminum extrusions, drum hardware and automobile and bicycle parts.
Specification of the High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System
| Model | HY-PBM4900 |
| Booth Type | tunnel type, suitable for the aluminum profile, doors, windows |
| Operator dimensions | 4900width*1500depth*2000mmHeight |
| Overall dimensions | 4900width*1500depth*2700mmHeight |
| Cabin Material | galvanized steel, powder coated on the surface. |
| Weight | 1020kg |
| Power supply | Electric |
| Nominal power | 5.5kw*2 |
| Voltage | 220/380V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 4(325*600/325*900)*2 |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Type | Manual |
| Warranty | 12 months |

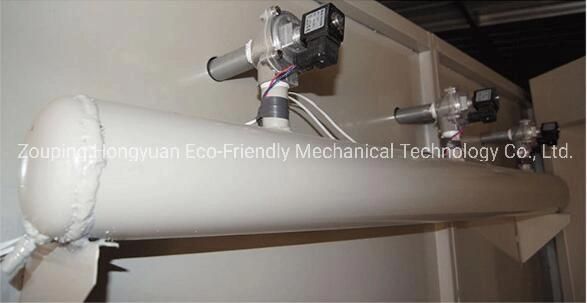

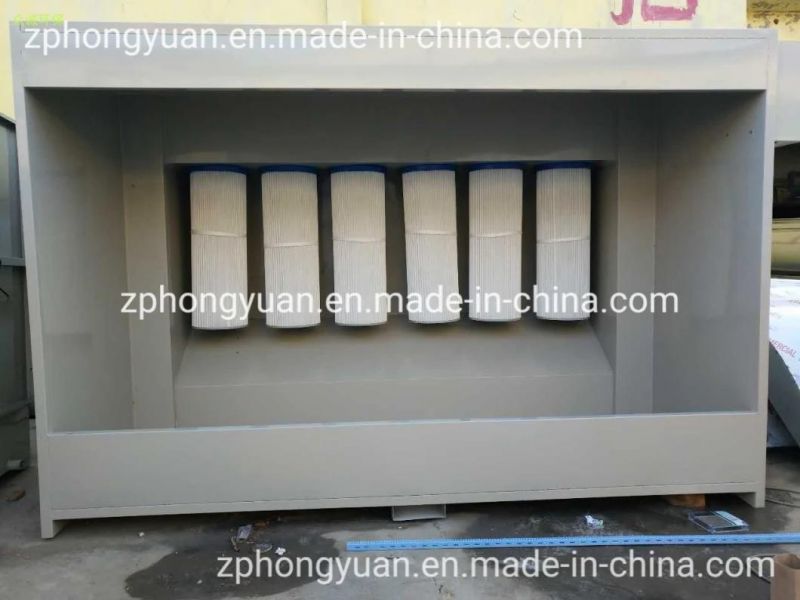

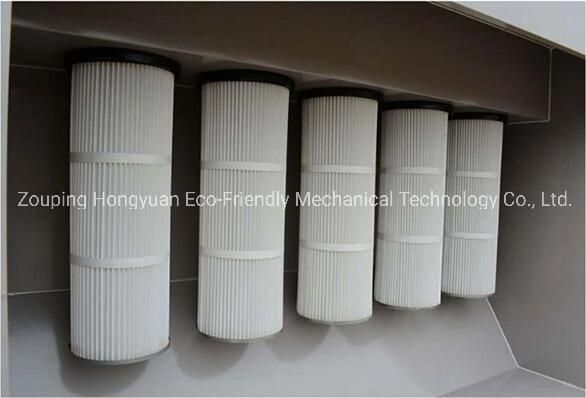

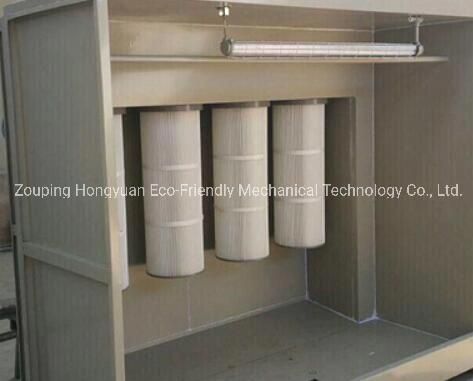

Parts show of the High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System

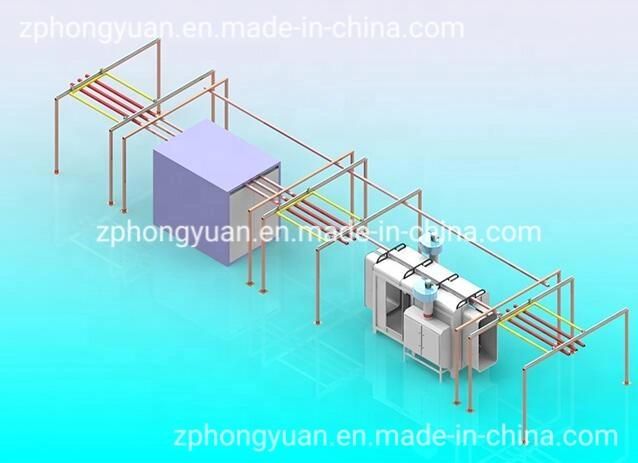

Production area and equipment for High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System
Package Show of High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about High Efficiency Manual Powder Coating Spray Paint Booth with Recovery System
