• Model NO.：HT-2400
• Wire Diameter：5-12mm
• Mesh Size：50*50-200*200mm
• Width：2500mm
• Welding Speed：30times,Min
• Voltage：According to Customer
• Power：150kVA*6
• Size：7500*3800*1750mm
• Weight：6.5ton
• Warranty：12 Months Free Warranty
• After Sales Service：Reply Within 24 Hours
• Current：AC
• Model：Hengtai
• Application：Construction, Fence Ect
• Transport Package：According to Customer′s Request
• Specification：2400mm
• Trademark：Hengtai
• Origin：China
• HS Code：8463300000
• Production Capacity：10sets,Month for Reinforcing Mesh Welding Machine

Basic Info.

Model NO. HT-2400 Wire Diameter 5-12mm Mesh Size 50*50-200*200mm Width 2500mm Welding Speed 30times/Min Voltage According to Customer Power 150kVA*6 Size 7500*3800*1750mm Weight 6.5ton Warranty 12 Months Free Warranty After Sales Service Reply Within 24 Hours Current AC Model Hengtai Application Construction, Fence Ect Transport Package According to Customer′s Request Specification 2400mm Trademark Hengtai Origin China HS Code 8463300000 Production Capacity 10sets/Month for Reinforcing Mesh Welding Machine

Product Description

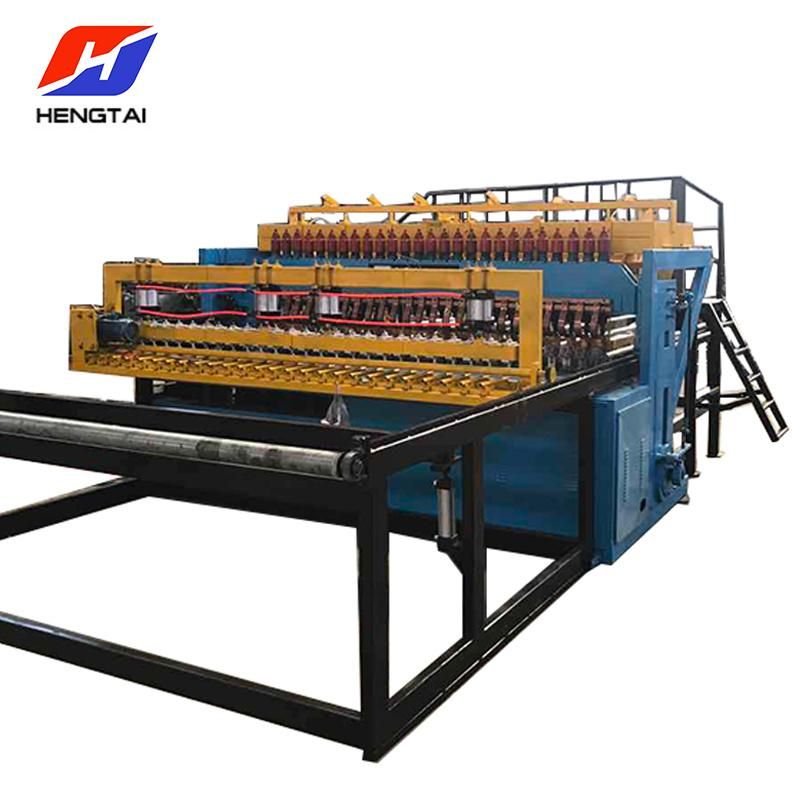

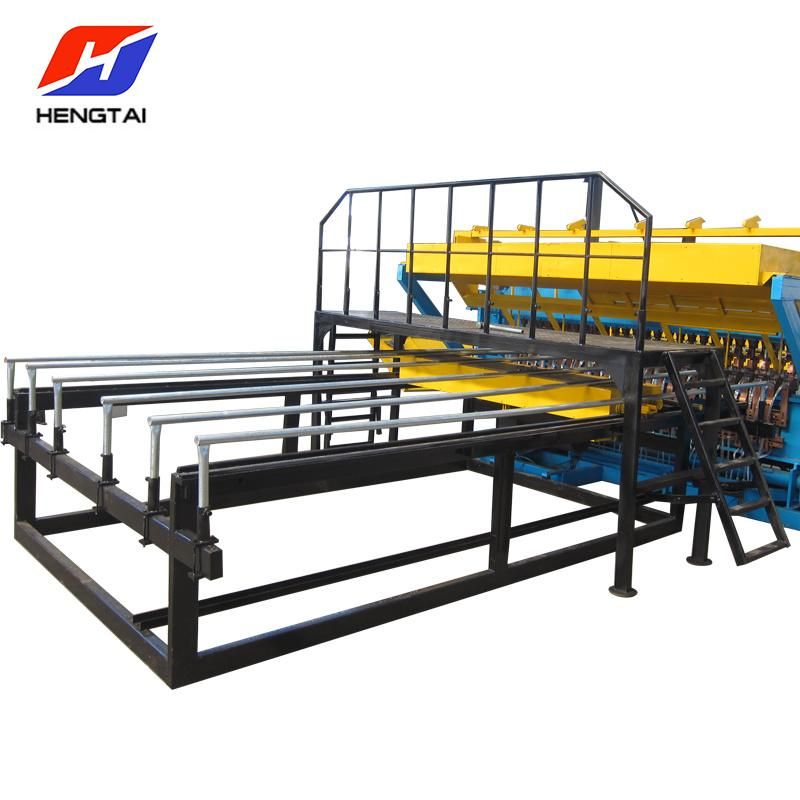

Automatic Reinforcing Wire Mesh Welding Machine

1.Function Characteristics:

It adopts synchronous control skill. The welding time and separate welding are controlled by computer based on windows operation system, which makes the operation more intelligentized. The longitudinal wires are fed continually in coils, which can be straightened, cut, welded, and placed in order automatically, mesh drawing system is controlled by servo motor which improves the precision of mesh opening size, meanwhile the longitudinal and transversal spacing are adjustable.

The magor feature of this machine is that is realizes continual welding in coil wires. In addition, it simplifies the process that every tensile spring has to be changed when the welding wire diameter is different. You only need to switch the control button of are cylinder to change the pressure of welding point.

Application: Highway, railway, bridge, enclosure mesh, fencing construction and so on.

2.Parameter


name	reinforcing mesh welding machine
wire diameter	5-12mm
welding aperture	100-300mm
width of mesh	2500mm(we can customize it for you)
welding speed	30 times/min
voltage	380v or as local standard
transformer	150kva*6

3.Hengtai Wire Mesh Machine Factory:

120 workers, 6800 square meter workshop, 14 years experience, ISO& CE certificated, half past two hour reach Tianjin port, this is how we keep superior quality and competitive offers for global valued customers.


We can design the machine according to customer's different request, if you want to know more information about the machine, please feel free to contact us anytime!

Delivery time of machine is 35days after you place order, package can be according to customer's request!

4.Our service:

1. With 12 months free warranty, reply within 24 hours after sales service.

2. As per your special requirements which are also welcome to discuss.

5.Payment term:

1.40% T/T in advance, The balance against the copy of the B/L

2. L/C is also acceptable

3. As per your special requirements which are also welcome to discuss
