• Model NO.：PE-CUT-A1
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Control Method：Use Extra PC to Control
• Usage：Used in Some Light and Common Industry
• Cutting Thickness：0.5-5mm
• Cutting Speed：0-6000mm,Min
• Plasma Current：60A
• Cooling Method：with Water Pump and Tank Provide Circulating Water
• Rail Guide：Precision Work Round
• Transmit Way：Taiwan Imported Ball Screw

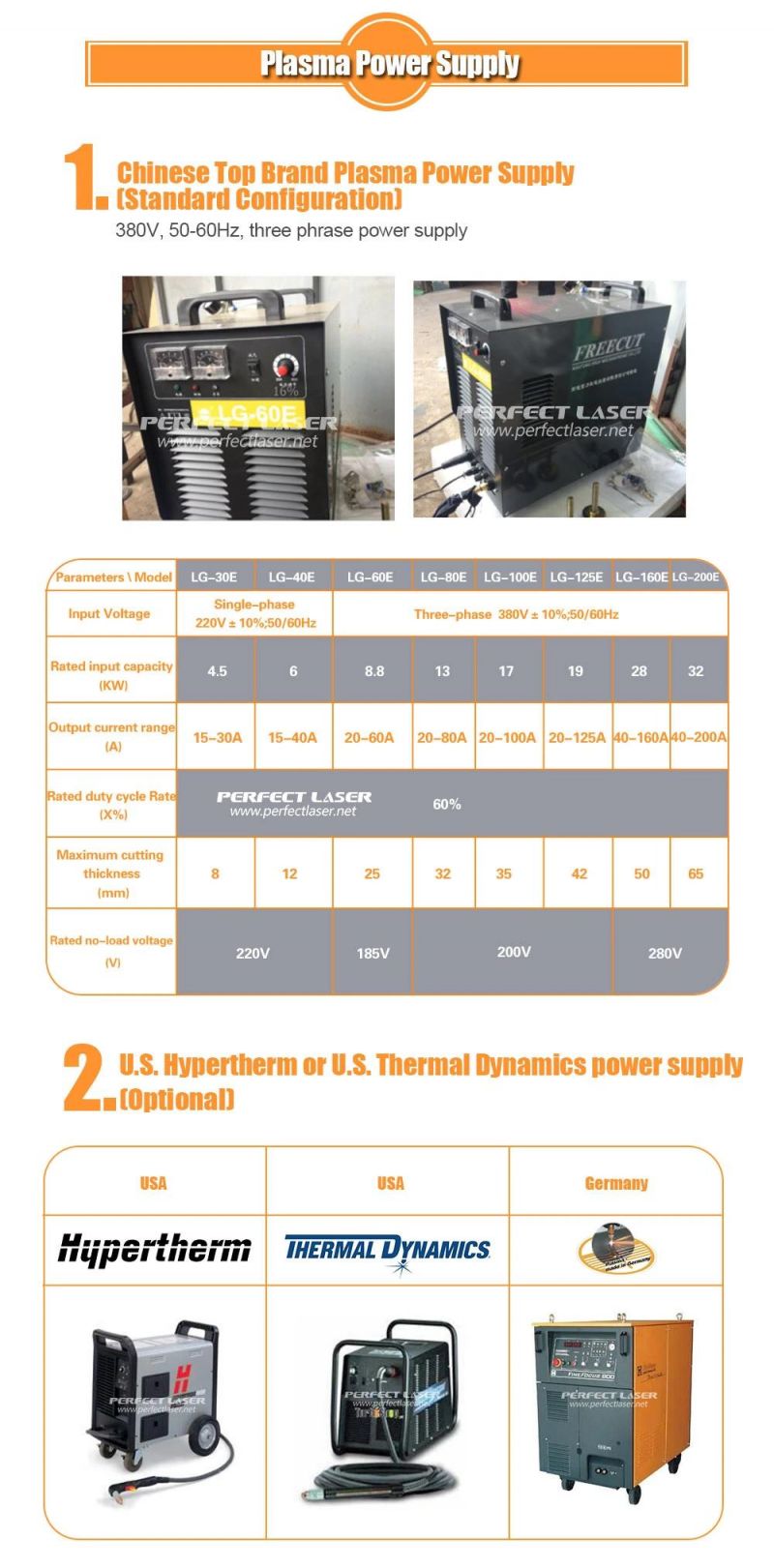

• Power Supply：Standard Item: 60A Chinese Top Brand Plasma Power

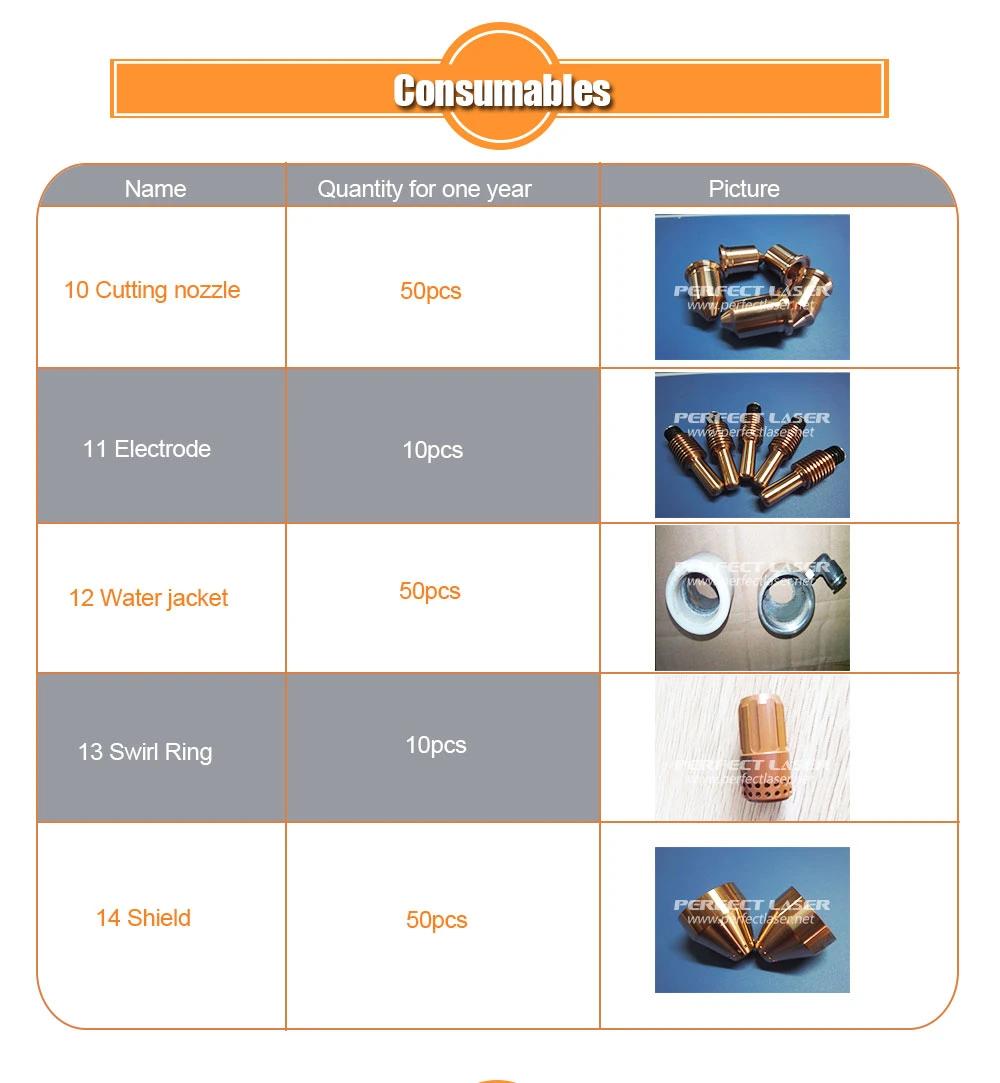

• Spare Parts：Electrode, Electricity Nozzle and Water Jacket
• Transport Package：Wooden Case
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456401000
• Production Capacity：500 Sets, Month

Basic Info.

Model NO. PE-CUT-A1 Power Source Electric Cutting Mode Plasma Cutting Control Method Use Extra PC to Control Usage Used in Some Light and Common Industry Cutting Thickness 0.5-5mm Cutting Speed 0-6000mm/Min Plasma Current 60A Cooling Method with Water Pump and Tank Provide Circulating Water Rail Guide Precision Work Round Transmit Way Taiwan Imported Ball Screw Power Supply Standard Item: 60A Chinese Top Brand Plasma Power Spare Parts Electrode, Electricity Nozzle and Water Jacket Transport Package Wooden Case Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456401000 Production Capacity 500 Sets/ Month

Product Description

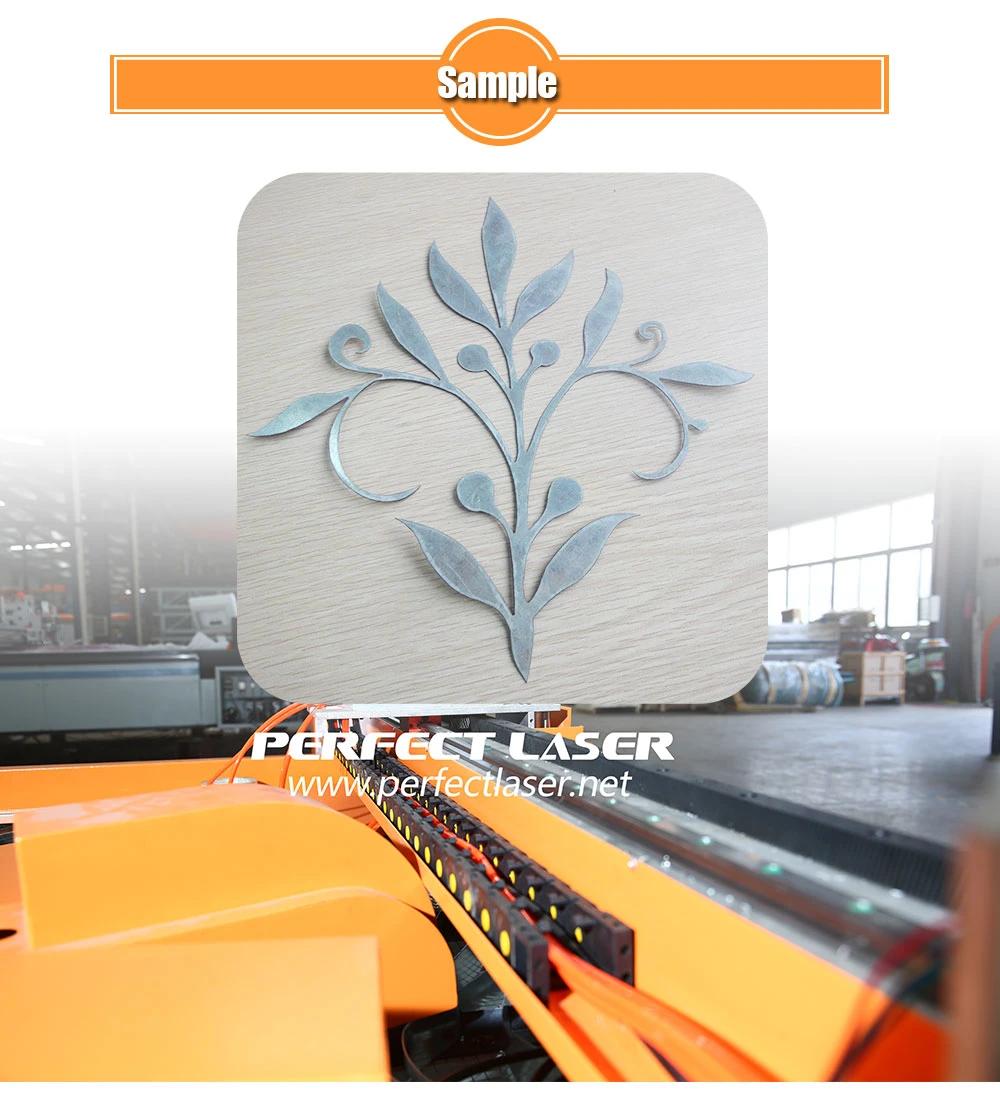

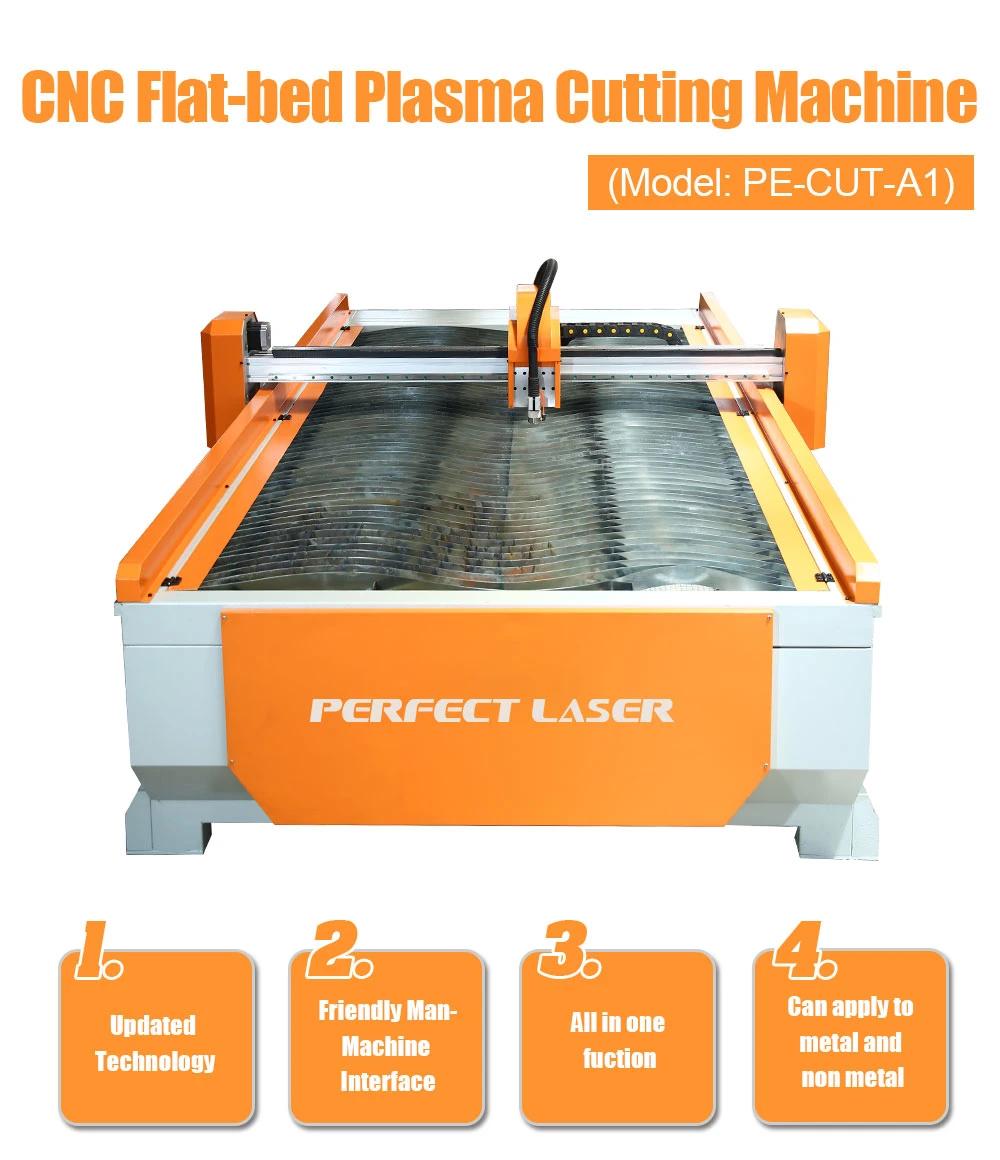

Automatic CNC Plasma Cutting Machine For 1-5MM Aluminum Ads Letters
 (Model:PE-CUT-A1)

Contact:Crystal
 Product Introduction of CNC Machine:
This new type CNC plasma cutting machine adopts light structure and auto height adjusting function to use laser cut letters. accu cutter can promote stability and improve work efficiency.

The CNC cutter consisting of 3 parts: flat bed machine body, advanced NC-studio control system and plasma power supply (optional item, the power can be choosed according to your demanding), CNC cutter has an advantage in cutting 1-5mm aluminum Ads letters.

Product Application of CNC Machine:
CNC cutter is automatic and high efficiency cutting equipment. CNC cutter is widely used in all kinds of plasma cutting aluminum, carbon steel, mild steel and nonferrous metal precision sheet metal cutting. It also can be called CNC cutter,laser cut letters,plasma cutter for sale or accu cutter.

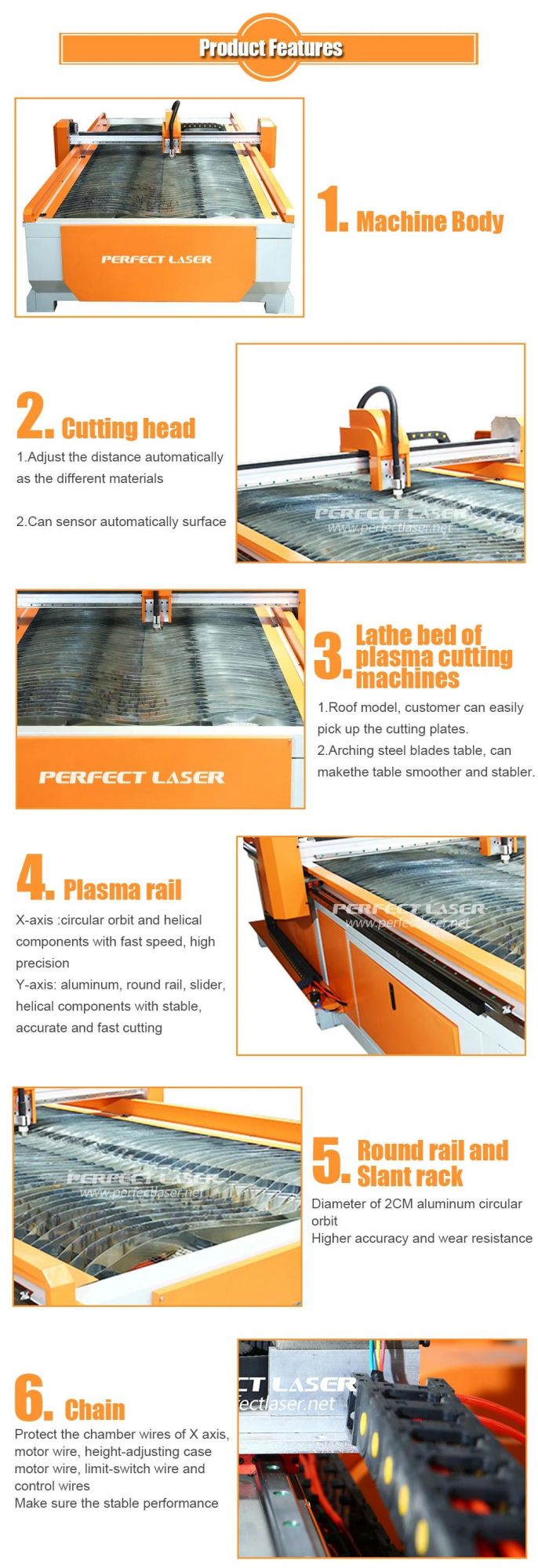

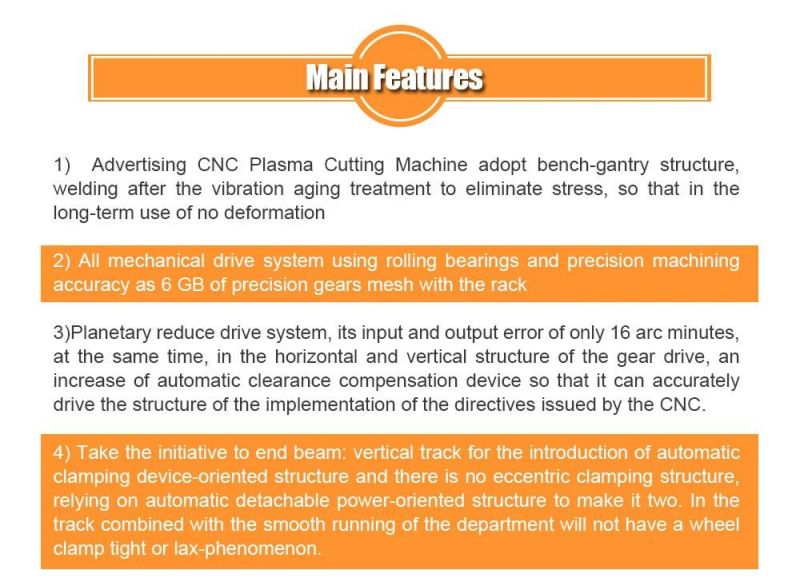

Main Features of CNC Machine:

1) Advertising CNC plasma cutting machine adopt flat bed machine body, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation

2) All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack
3) CNC cutter's planetary reduce drive system, plasma metal cutting input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive,an increase of automatic clearance compensation device so that CNC cutter can accurately drive the structure of the implementation of the directives issued by the CNC.

4) CNC cutter takes the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.

Technical Date of CNC Machine:

Model	PE-CUT-A1
Price	USD 4350
Working Area (mm)	2500 x 1300 mm
Auto-Inflame	1 set
NC Cutting	1 set
Controlled Switch	some
Lifting Height of Cutting	≤200mm
Cutting Speed	0-3500mm/min
Roughness of Cutting Surface	Ra≤12.5μm
Driving System	three-phase AC motor Single-driving

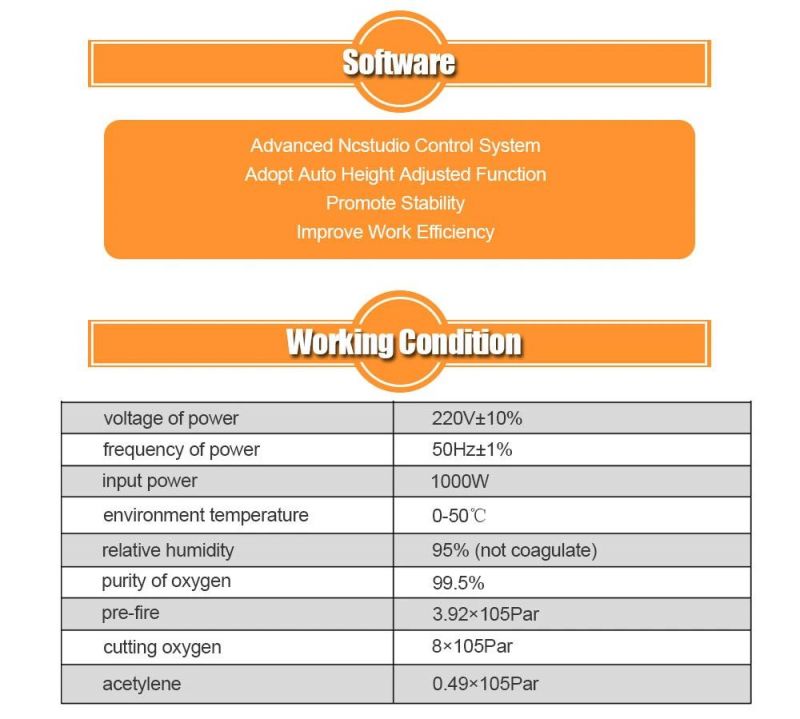

>>Working Condition:

voltage of power	220V±10%
frequency of power	50Hz±1%
input power	1000W
environment temperature	0-50ºC
relative humidity	95% (not coagulate)
purity of oxygen	99.5%
pre-fire	3.92×105Par
cutting oxygen	8×105Par
acetylene	0.49×105Par

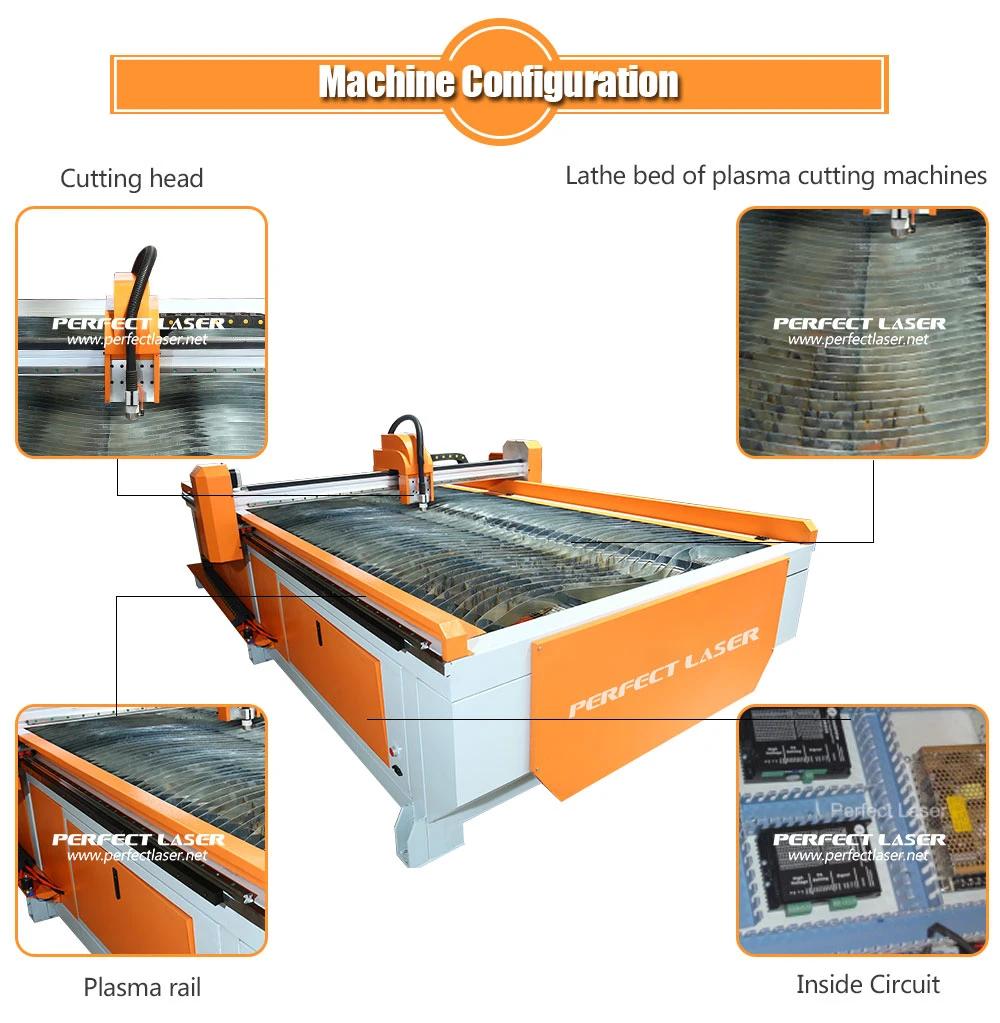

Machine Details of CNC Machine:
