• Model NO.：Carbide tips
• Customized：Both Customized & Non-Customized
• Material：Tungsten Carbide
• Application：Metal Recycling Machine, Metal Cutting Machine, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Casting Machinery, Mining, Metal Machining
• Wc+Co Powder：100% Virgin Material
• Cobalt Percentage：From 3% to 30% Based on Different Grades
• Grain Sizes Selection：Ultra Fine, Fine, Medium, Coarse
• Grades：K10,K20,K30,K40,P10,P20,Yg6,Yg6X,Yg8,Yt5,Yt15
• Tolerance：ISO2768-M
• Surface Finishing：Sand Blasting or Tumbling
• Main Using Purpose：for Cutting Tools
• Sintering Way：Hip Sinterred
• Using Purpose：Tips for Brazing Tools
• Transport Package：Standard Packing for Export
• Specification：WC+Co Powder
• Trademark：Laser mark available
• Origin：Zhuzhou City, Hunan, China

ISO GradeChina GradeDensity(g/cm³⁾HardnessBending Strength(N/mm²)Main Using purposeHRA
(ISO3738)Suitable for finishing and semi-finishing cast iron and Non-ferrous metal, also can be used for machining Manganese steel&Hardened steelEST-1014.891.72000K20YG614.990.52100Suitable for rough machining of cast iron, also used for milling of cast iron and low alloy steelK30YG814.889.72300M05YS813.892.51800Suitable for finishing of iron alloy, nickel alloy &High strength steel.M10YW113.1921600Suitable for finishing and semi-finishing of stainless steel & normal alloy steelEST3014.3912160M20YW213.0911800Suitable for semi-finishing of stainless steel & normal alloy steelP10YT1511.3921800Suitable for finishing and semi-finishing of steel & cast steel, medium feed and high cutting speedP20YT1411.591.52000Suitable for finishing and semi-finishing of steel & cast steelP30YT513.0912200Suitable for heavy duty rough turnning of steel & cast steel, high feed and low cutting speed under bad working condition

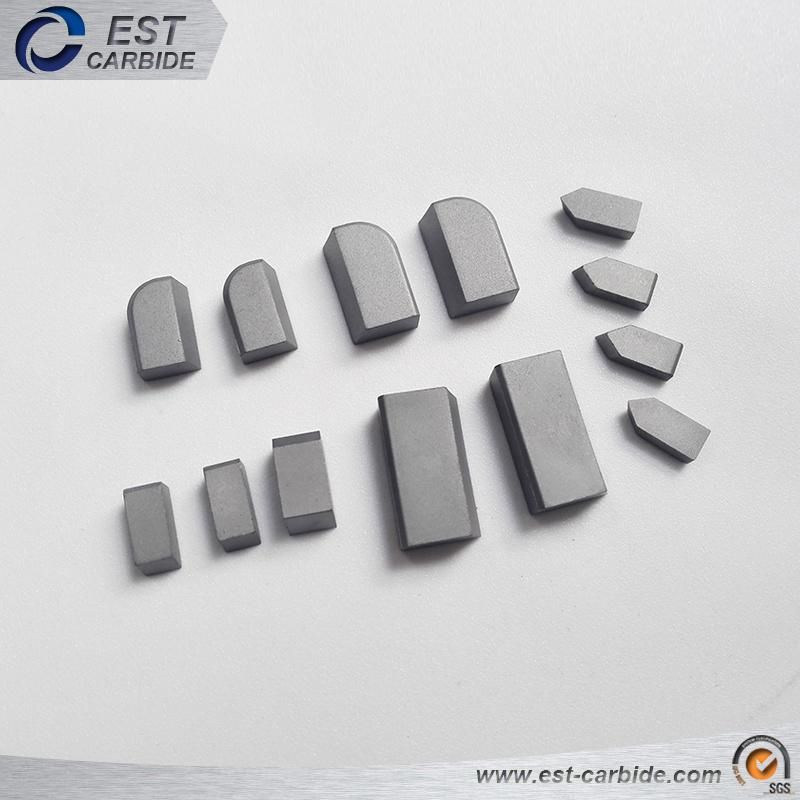

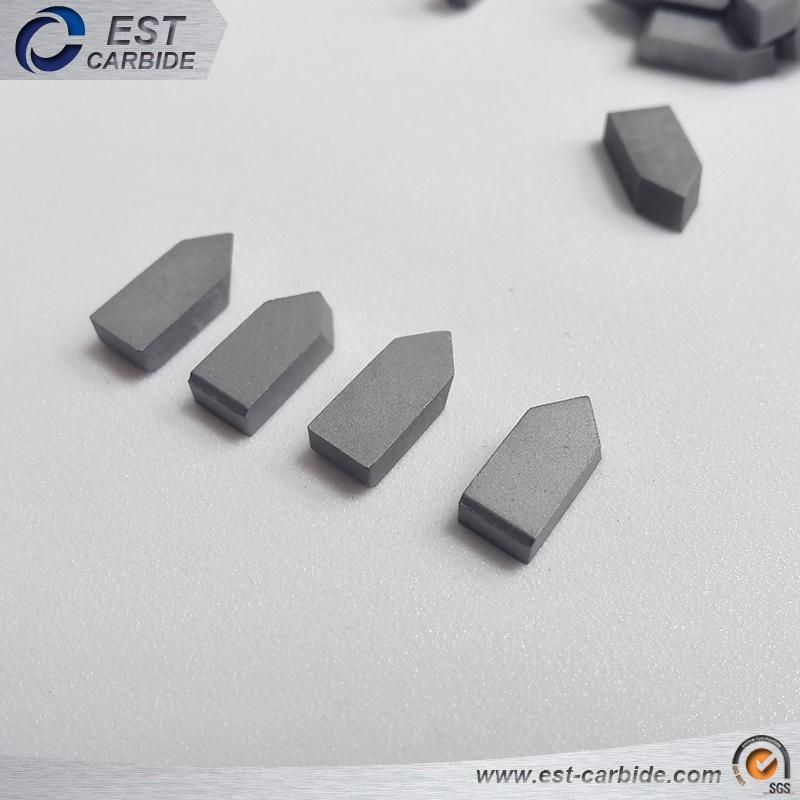

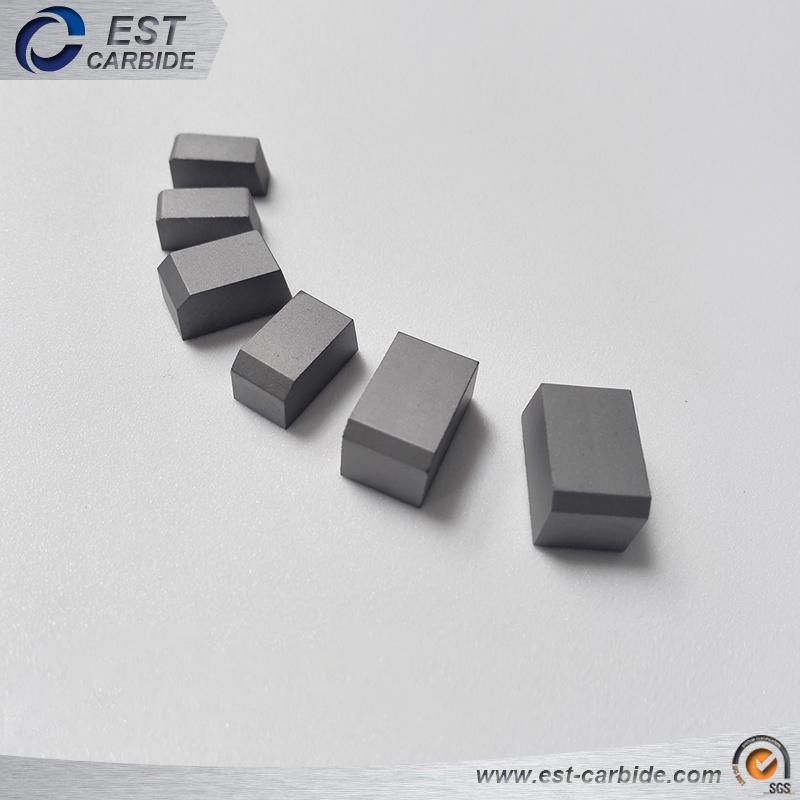

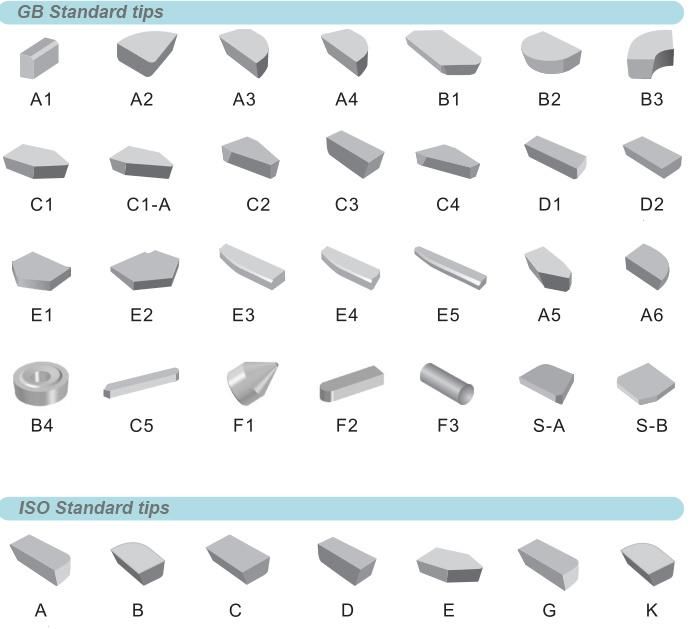

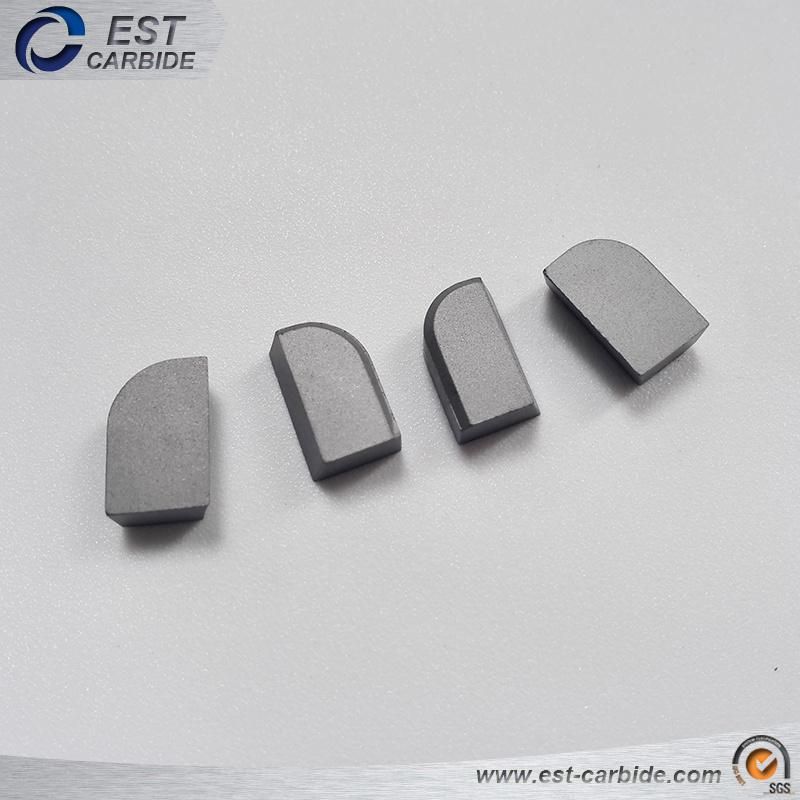

Main types of the carbide tips:

We also can produce the customized carbide tips, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.

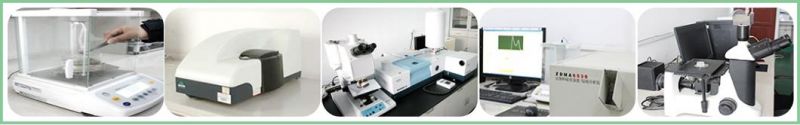

Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.

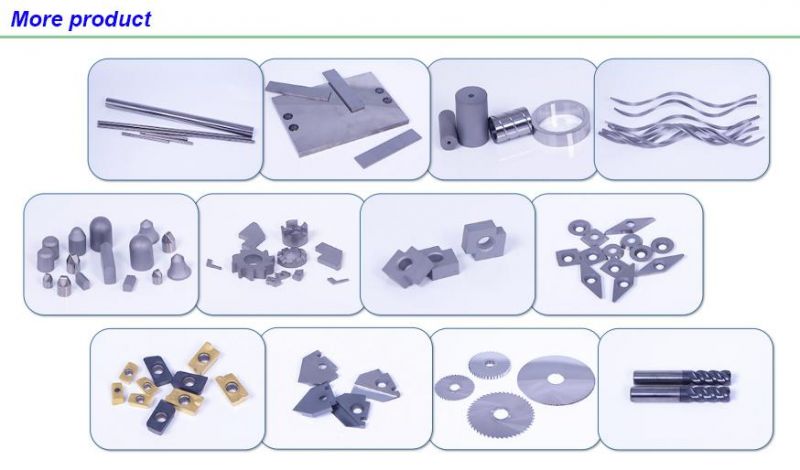

Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.





Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..
