Optiflex 2f Wx-K1 Powder Coating Equipment Electrostatic Powder Coating Gun with Pump
Jiangsu Xintu Machinery Co., Ltd.- Type:Powder Coating Machine
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO, SGS
- Condition:New
- Model:Wx-K1
Base Info
- Model NO.:WX-K1
- Feature:Pulse-Type
- Voltage:0-100kv Adjustable
- Advantage:Multifunctional
- Transport Package:Carton
- Specification:52*52*67cm
- Trademark:WANXIN
- Origin:Jiangsu, China
- HS Code:84243000
- Production Capacity:500 Sets,Month
Description
Basic Info.
Model NO. WX-K1 Feature Pulse-Type Voltage 0-100kv Adjustable Advantage Multifunctional Transport Package Carton Specification 52*52*67cm Trademark WANXIN Origin Jiangsu, China HS Code 84243000 Production Capacity 500 Sets/MonthProduct Description

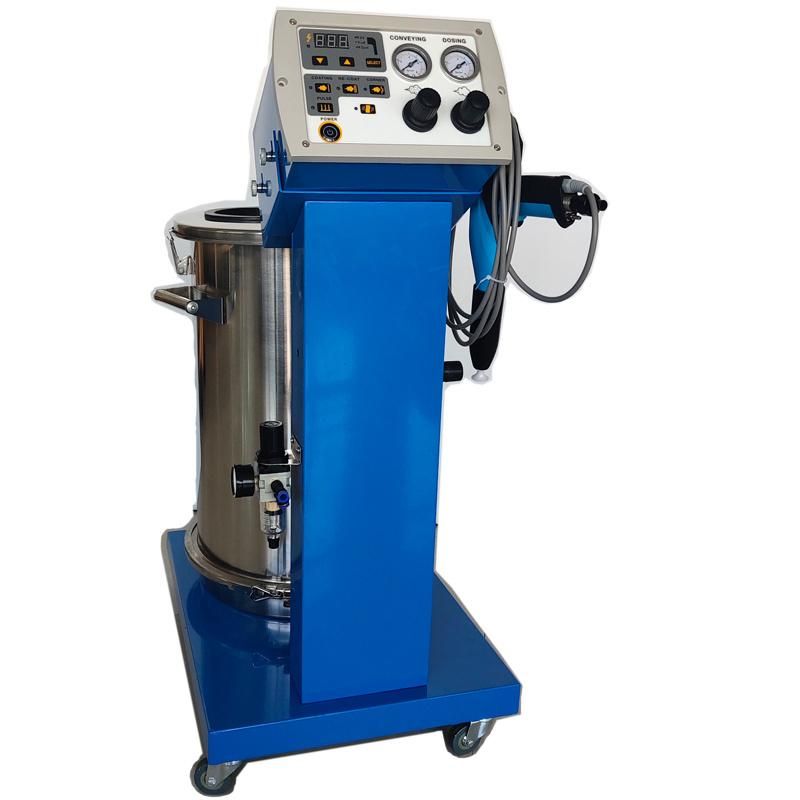

Powder Coating Machine Electrostatic Powder Coating Gun with Optiflex 2f PumpWX-K1 electrostatic powder coating machine is our newest invention of the KCI K1-3. The controller has three present modes for coating,re-coating,and a special pulse mode when you need to overcome faraday cage effects on highly contoured parts.
1.Coating
Normally, it is used for the generally powder coating.
2.Re-coating
It is used for the second coating for the missing parts.
3.Pulse
It can be used for the deep corner powder coating.
Technicals Data
Power Voltage | AC220V |
Frequency | 50/60Hz |
Sprying Rate | 550g/min. |
Input Power | 40W |
Electromagnetic Valve Control Power Voltage | DC 24V |
Maximum Output Current | 200Ua |
Input Air Pressure | 0-0.6Mpa |
Output Air Pressure | 0-0.5Mpa |
Max. Air Consumption | 13.2m3/H |
Output Powder Volume | Max. 550g/Min |
Output Power Voltage | 0-100kv |
Polarity | Negative |
Gun Weight | 480g |
Length Of Gun Cable | 4m |
Powder Hopper Volume | 45L/50L |
Packing Size | 520*520*670mm |
G/N Weight | 35kg/28kg |
Powder Coating Applicable | All Kinds Of Powder Without The Metals |
Advantages
- High sensitivity and durability.
- Thickening resistance to puncture the tip, the low maintenance rate.
- With circuit protection, voltage self-adjusting function, to ensure a perfect spraying effect.
- High voltage cascade near the nozzle, low voltage loss, replaceable high voltage components to bring convenience to the maintenance.
- Large flow of pneumatic components, in the smaller air pressure, can still achieve higher powder.
- All stainless steel for powder cartridge, can not use tools to easily remove all parts and clean.
- Two central gas design, so that the needle is no longer needle-guided fluid powder, to enhance the discharge effect, improve the rate of powder.
- Rotating atomized air flow is greatly improved coating quality.

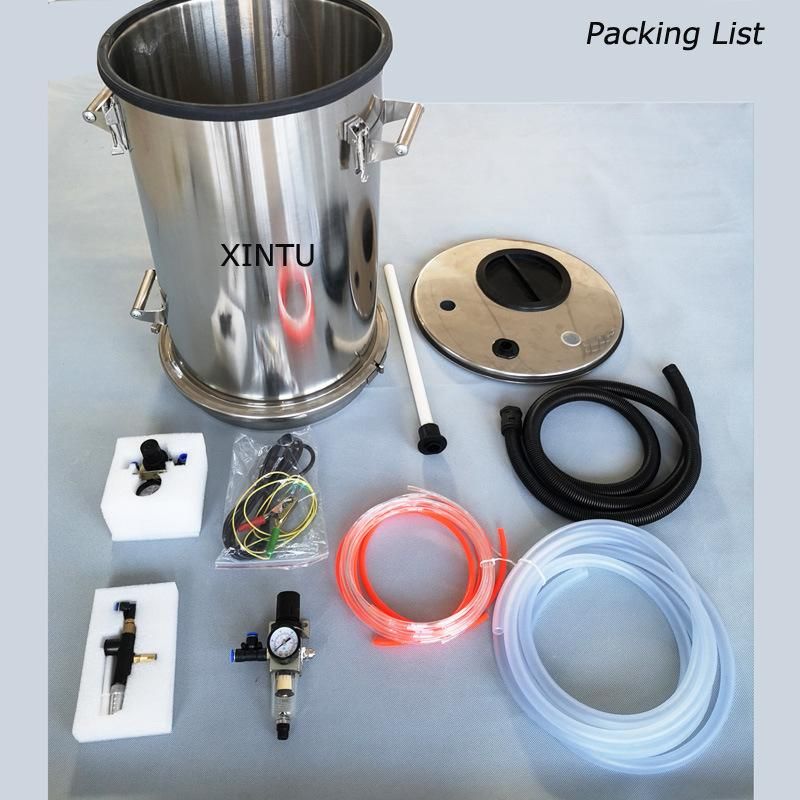

The composition
- 1 × Manual Powder Gun With Gun Cable
- 1 × Powder Gun Spare Parts
- 1 × Control Unit
- 1 × Powder Injector
- 1 × Trolley
- 1 × Oil-Water Separator
- 1 × Pressure Regulating Valve
- 1 × Powder Hose ,Air Tubes ,Grounding Line
- 1 × Fluidized Powder Hopper(55L staineless steel hopper)

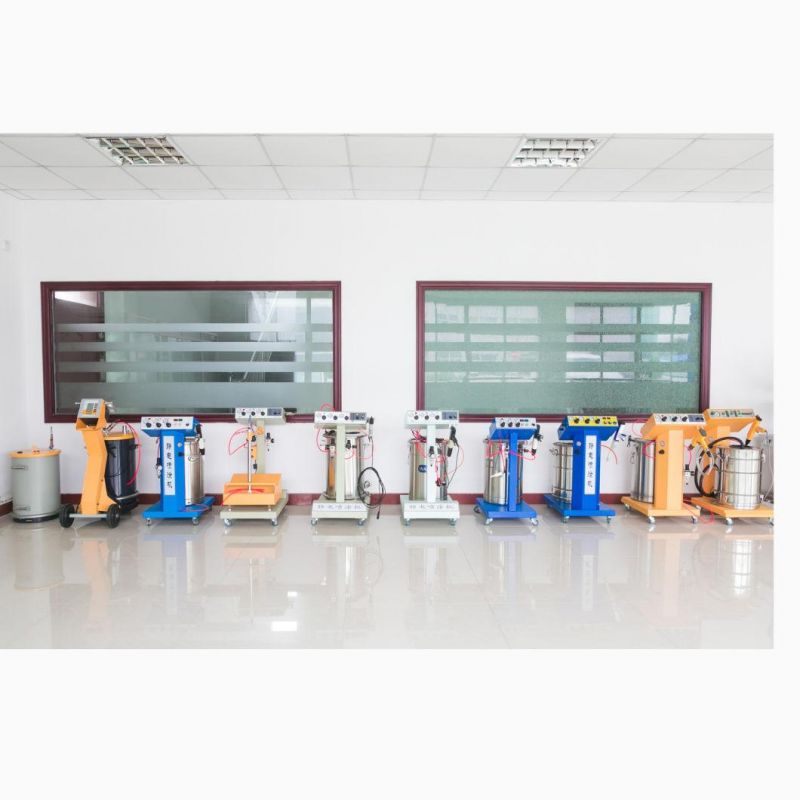

Other Kinds of Powder Coating Machine

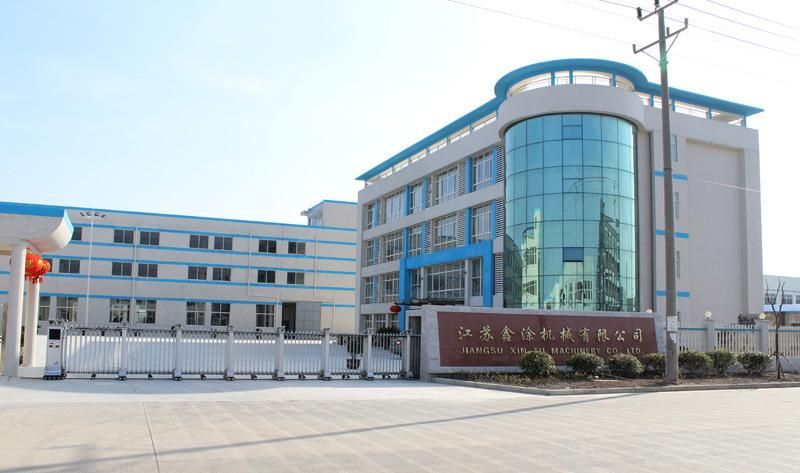

Company Profiles
