High-Quality Two-Axis/Three-Axis Thread Rolling Machine for Tapping
Zhengzhou Yongchuang Machinery Equipment Co., Ltd.- After-sales Service:Operation Video, Online Teaching
- Warranty:Two Years
- Condition:New
- Certification:ISO9001, SGS
- Customized:Customized
- Material:Metal
Base Info
- Model NO.:SC-GS80
- Application:Thread Rolling Machine
- Function:Thread Rolling Machine
- Transport Package:Wooden Box
- Specification:1500*1300*1450mm
- Trademark:Yongchuang
- Origin:China
- Production Capacity:500,Year
Description
Basic Info.
Model NO. SC-GS80 Application Thread Rolling Machine Function Thread Rolling Machine Transport Package Wooden Box Specification 1500*1300*1450mm Trademark Yongchuang Origin China Production Capacity 500/YearProduct Description

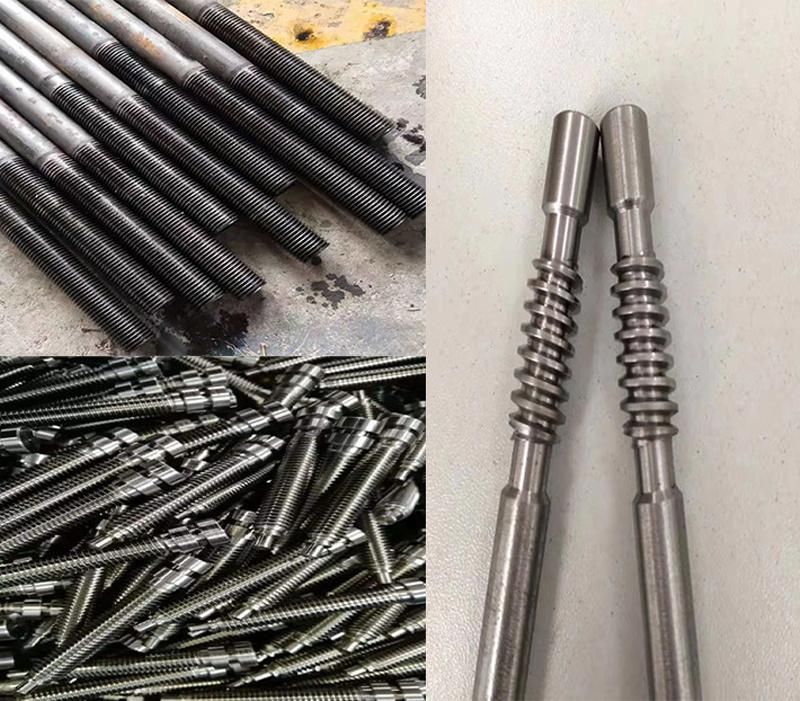

High-quality two-axis/three-axis thread rolling machine for tappingMachine introductionThe thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight, and twill rolling treatments on the workpiece in the cold state within its rolling pressure range; straight, helical and oblique spline gears Rolling; straightening, reducing diameter, rolling and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic and automatic.
The thread rolling cold rolling process is an advanced non-cutting processing, which can effectively improve the internal and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. It is a highly efficient , An ideal process for energy saving and low consumption.

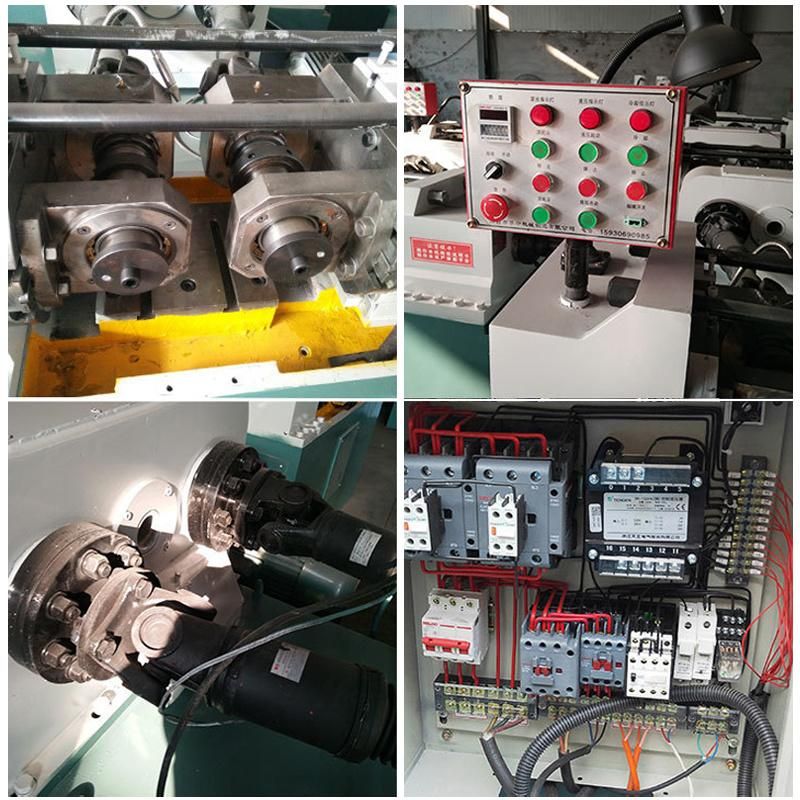

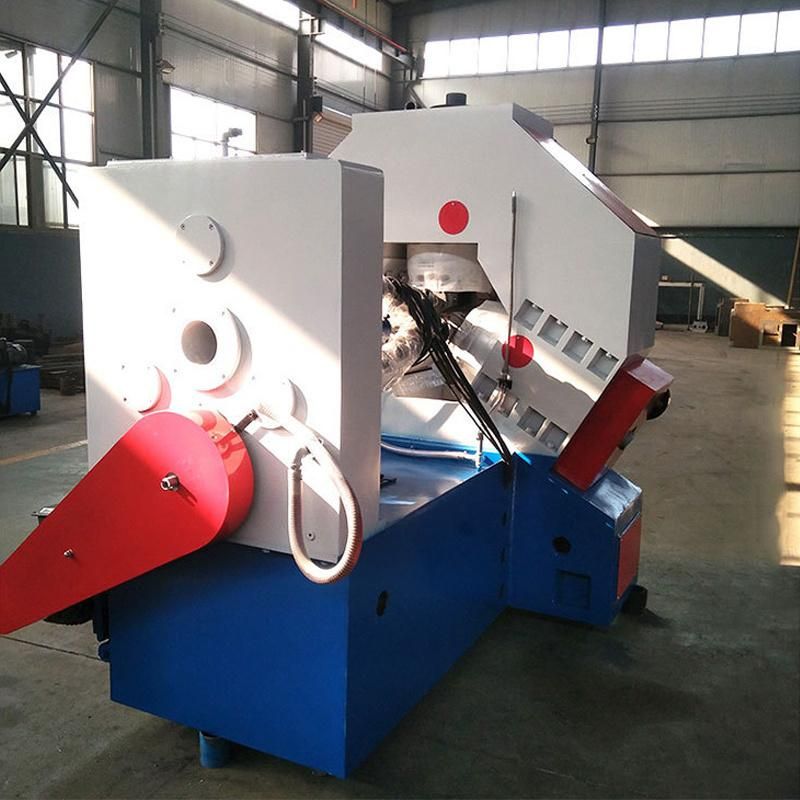

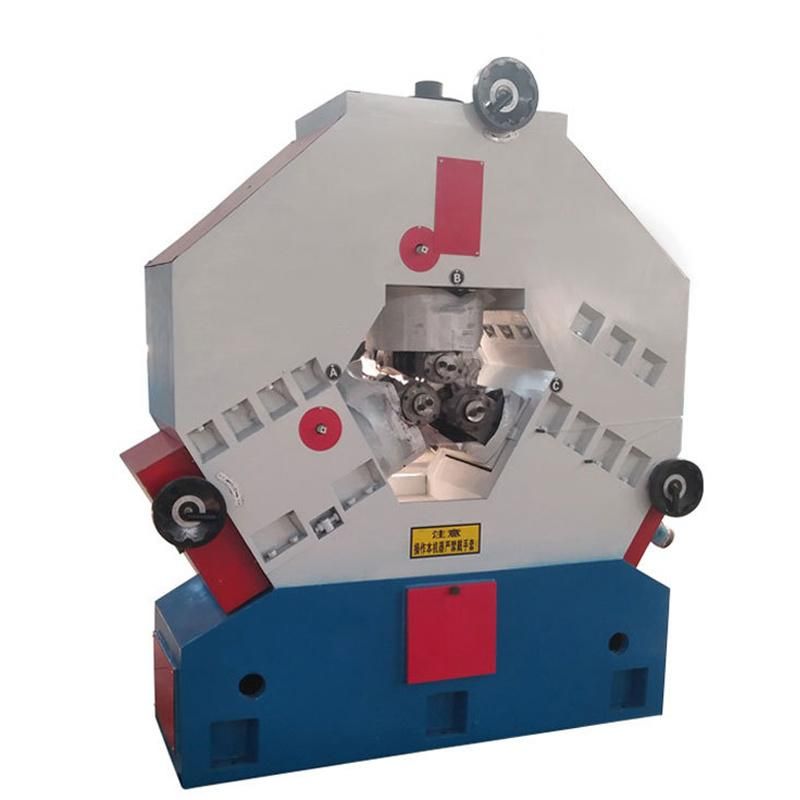

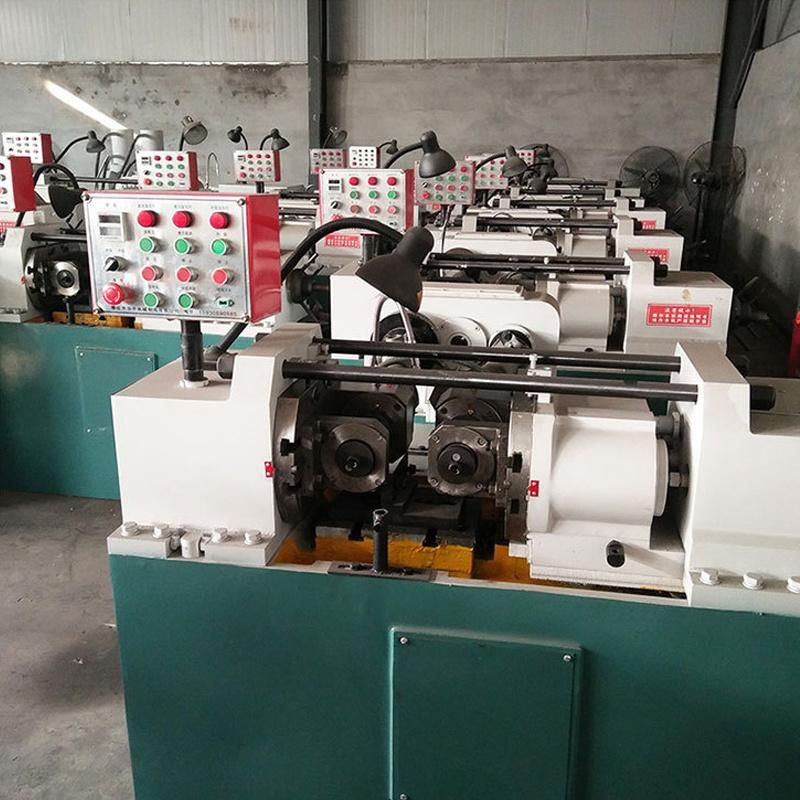

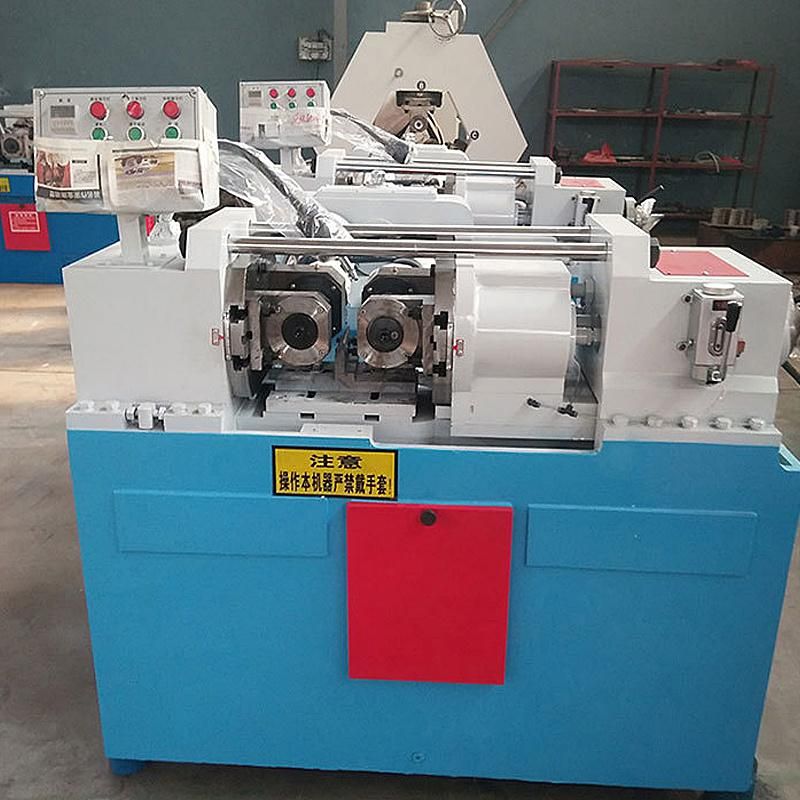

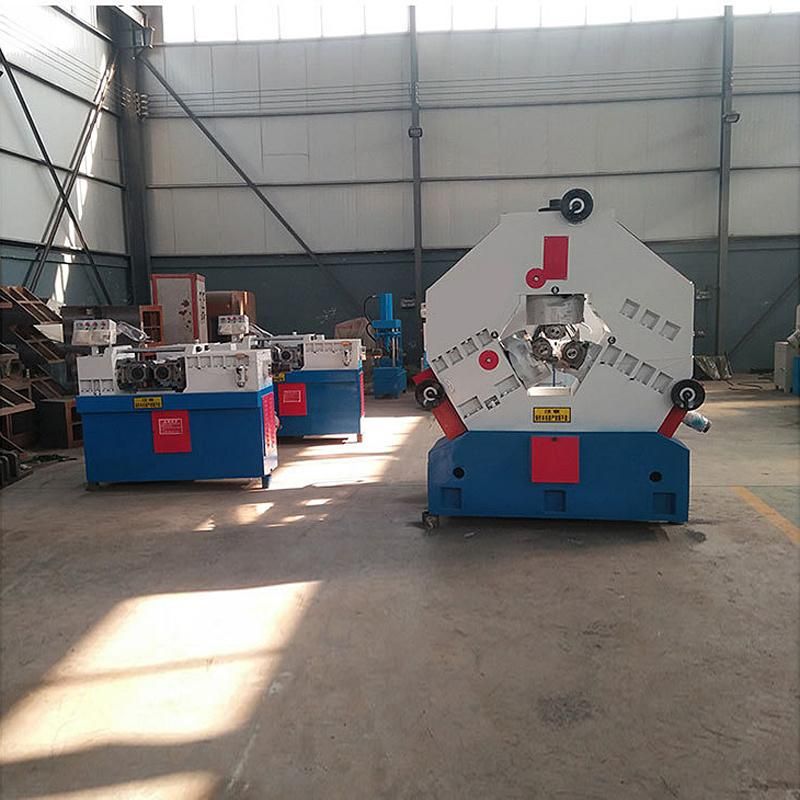

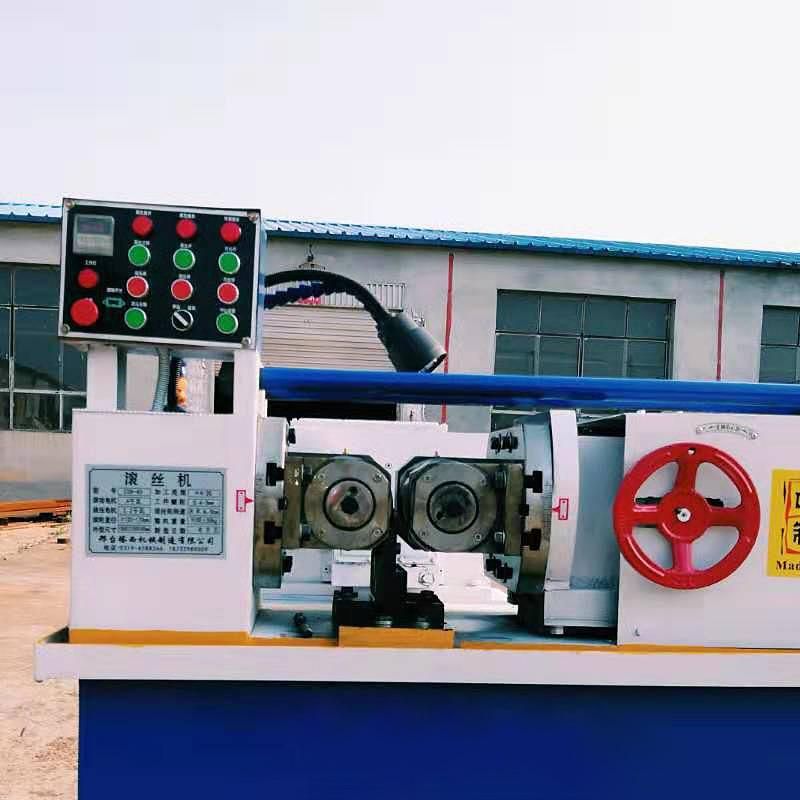

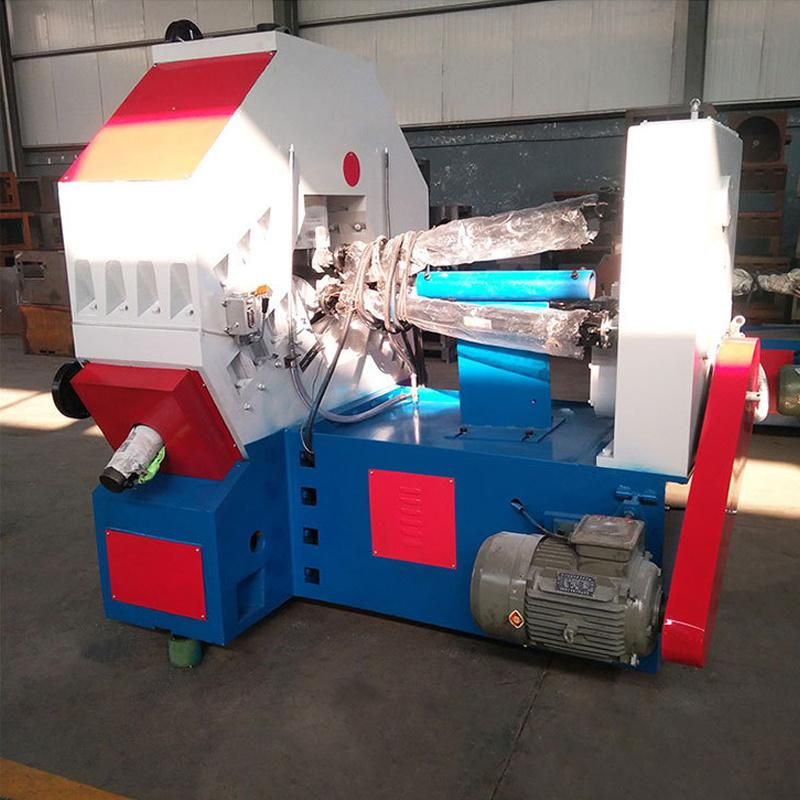

Machine picture
Machine parameters
Model | Maximum rolling pressure | Spindle speed | Main power | Hydraulic power | Size |
SC-GS80 | 150KN | 36,47,60,78(r/min) | 5.5kw | 2.2Kw | 1500*1300*1450mm |
SC-GS150 | 150KN | 36,47,60,78(r/min) | 7.5kw | 2.2Kw | 1500*1300*1450mm |
SC-GS200 | 150KN | 18/26/43/54/67/85 | 9.5kw | 2.2Kw | 1680*1580*1460mm |
