• Model NO.：SC-GS200
• Application：Thread Rolling Machine
• Function：Thread Rolling Machine
• Transport Package：Wooden Box
• Specification：1680*1580*1460mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500,Year

Basic Info.

Model NO. SC-GS200 Application Thread Rolling Machine Function Thread Rolling Machine Transport Package Wooden Box Specification 1680*1580*1460mm Trademark Yongchuang Origin China Production Capacity 500/Year

Product Description

Hot-selling hydraulic thread rolling machine with high qualityMachine introduction

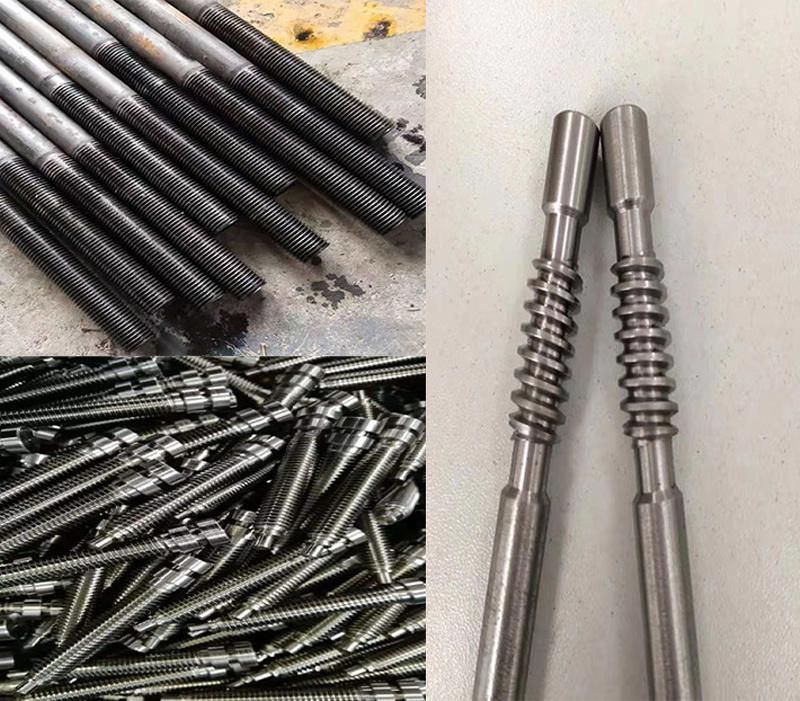

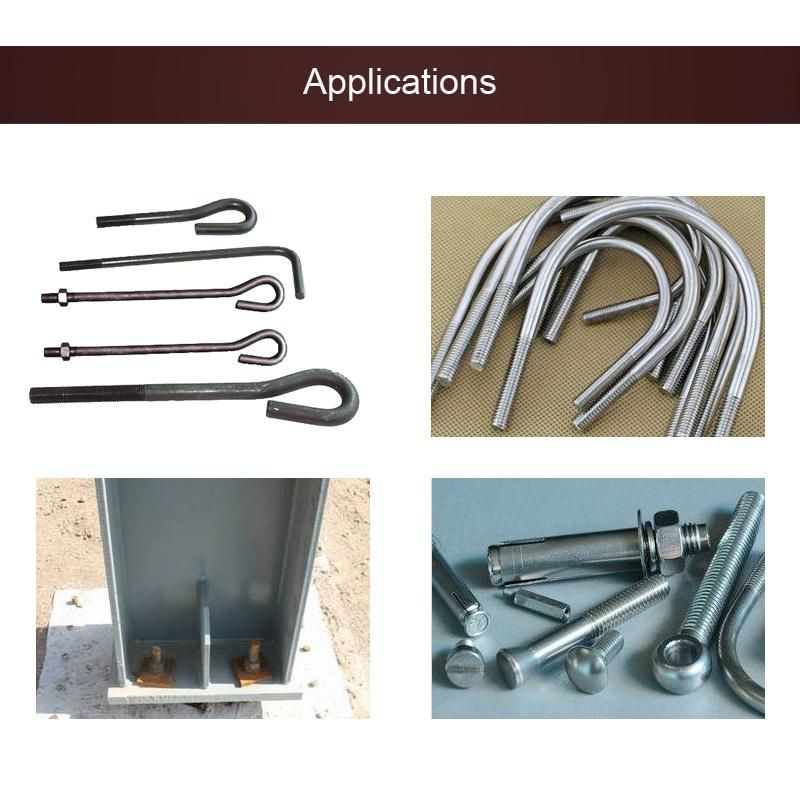

The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight, and twill rolling treatments on the workpiece in the cold state within its rolling pressure range; straight, helical and oblique spline gears Rolling; straightening, reducing diameter, rolling and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic and automatic.

The thread rolling cold rolling process is an advanced non-cutting processing, which can effectively improve the internal and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. It is a highly efficient , An ideal process for energy saving and low consumption.

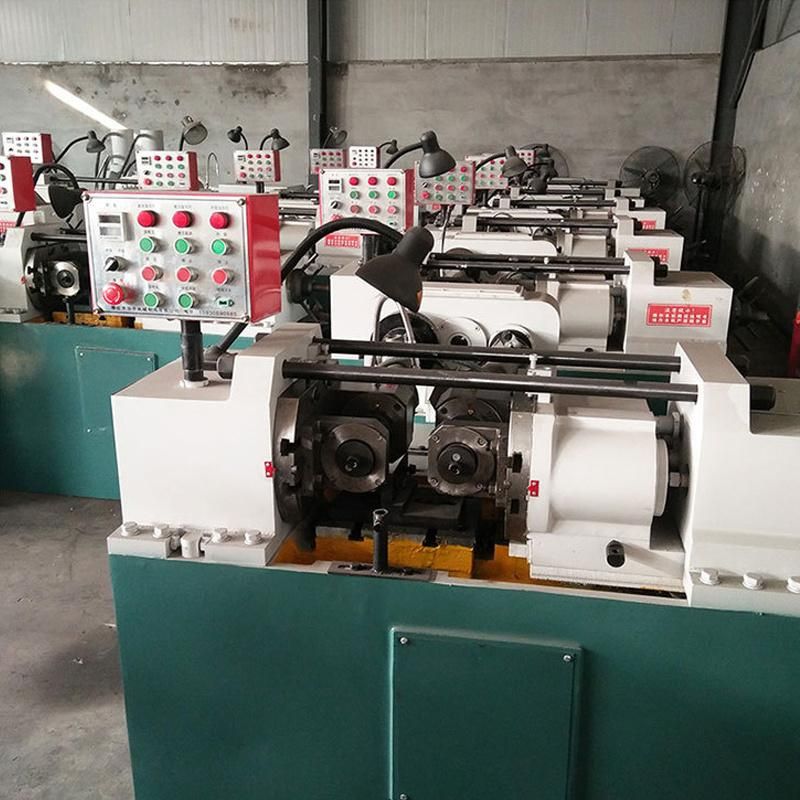

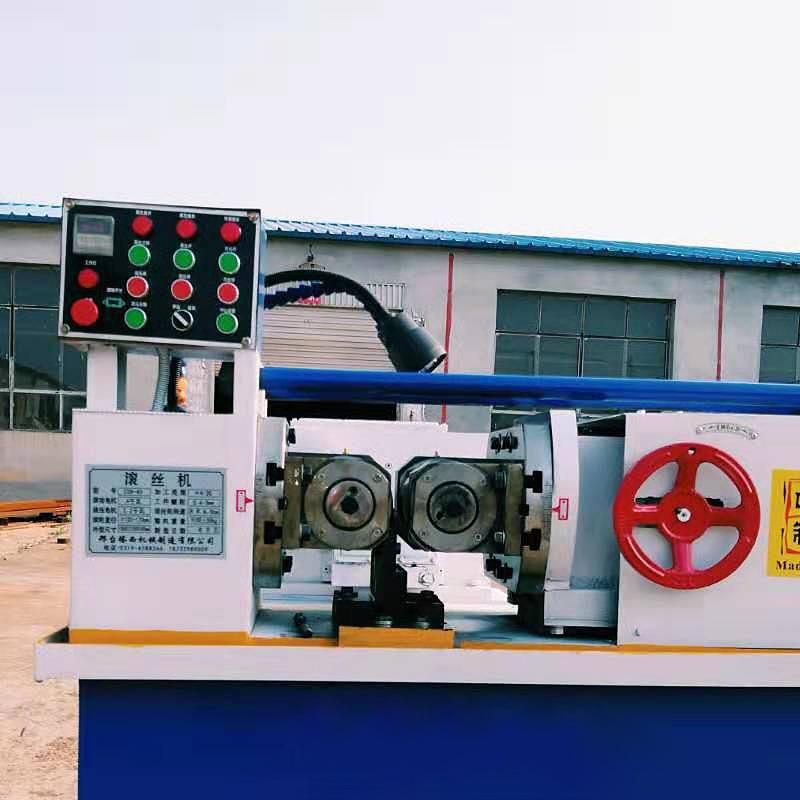

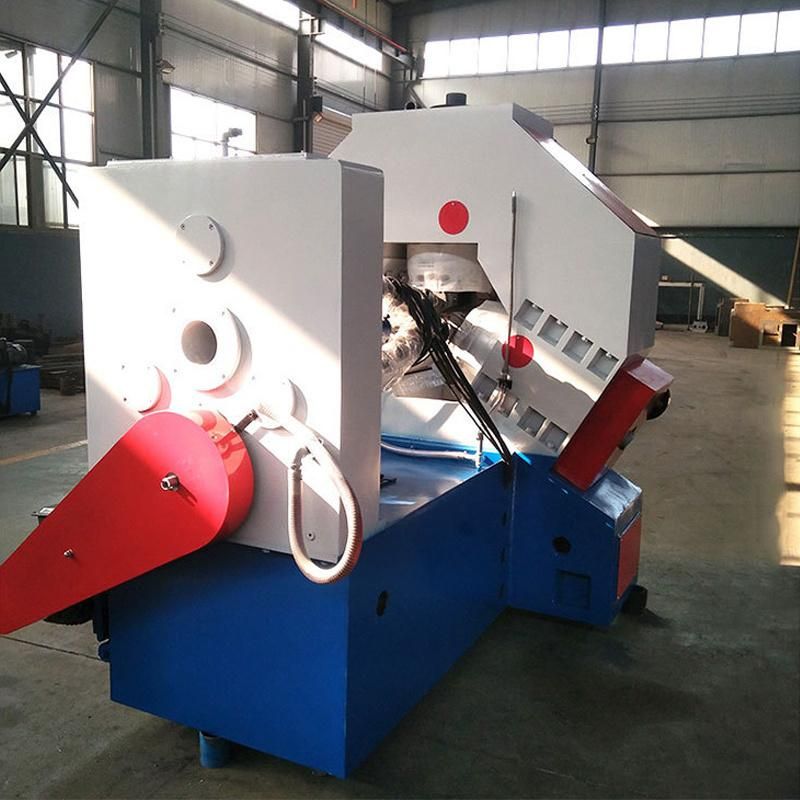

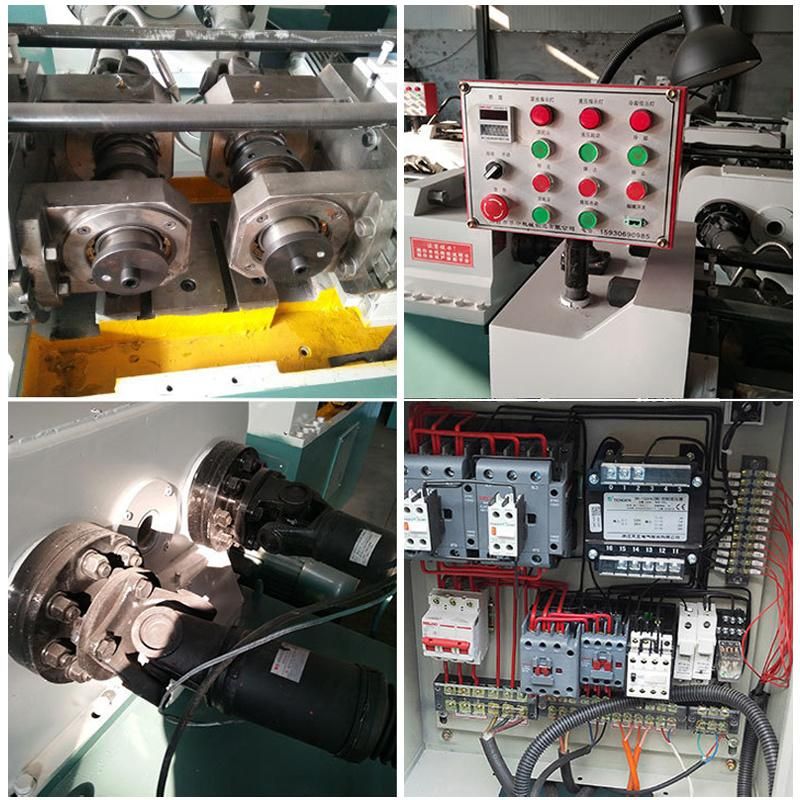

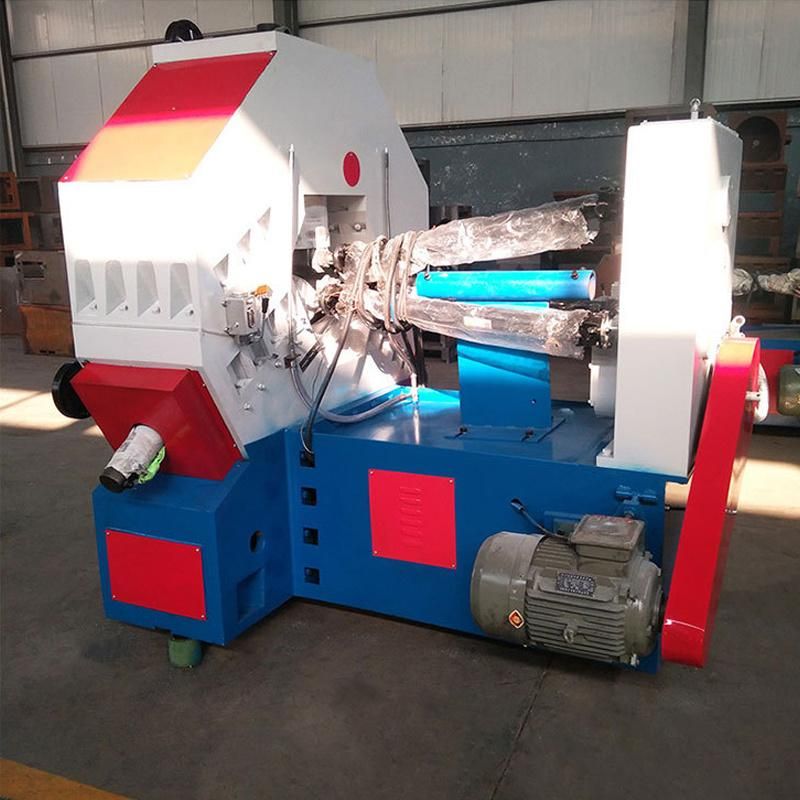

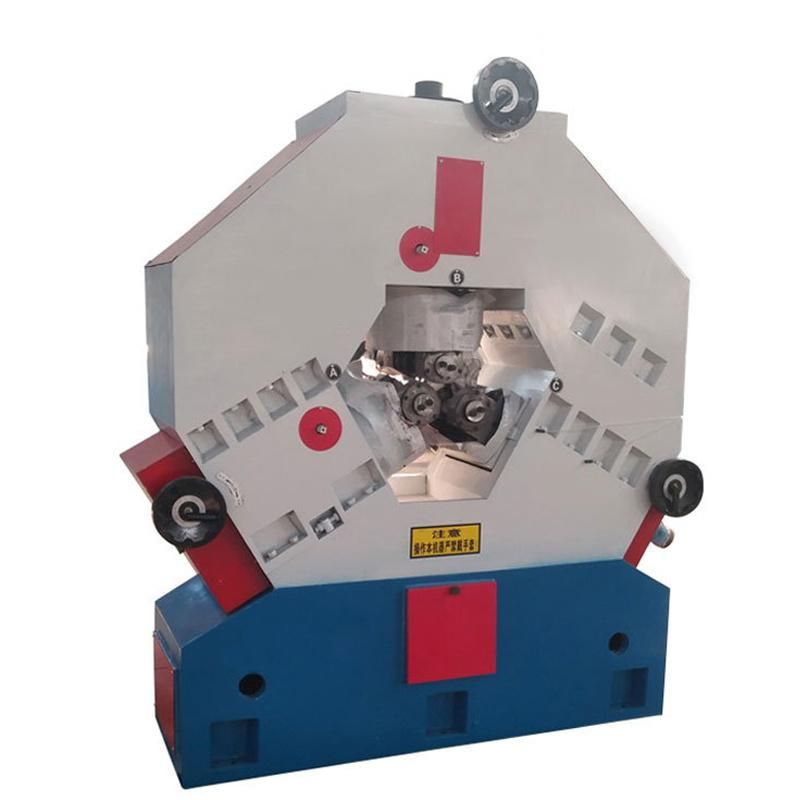

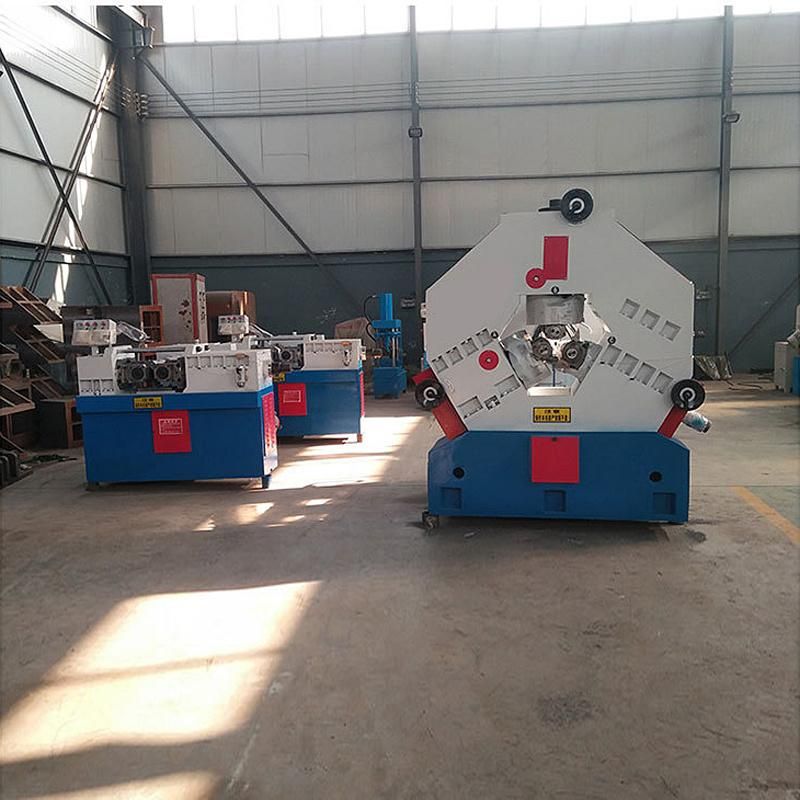

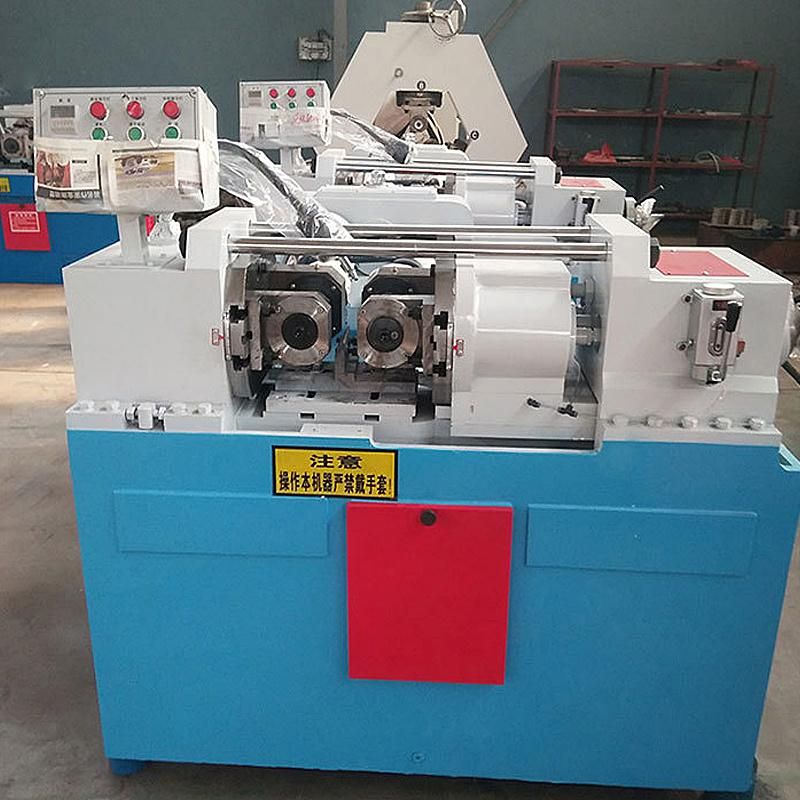

Machine picture

Machine parameters

Model	Maximum rolling pressure	Spindle speed	Main power	Hydraulic power	Size
SC-GS80	150KN	36,47,60,78(r/min)	5.5kw	2.2Kw	1500*1300*1450mm
SC-GS150	150KN	36,47,60,78(r/min)	7.5kw	2.2Kw	1500*1300*1450mm
SC-GS200	150KN	18/26/43/54/67/85	9.5kw	2.2Kw	1680*1580*1460mm
