• Model NO.：CNCXG600
• Flame Cutting Thickness：5-60mm
• Flame Max Beveling Angle：60
• Pipe Chuck：3 Jaws Concentric Chuck
• Number of Control Axes：2-6
• Driving Motor：Panasonic
• Pipe Length：No Limit
• Cutting Speed (mm/Min)：50-9000mm,Min
• Plasma Max Beveling Angle：45
• Transport Package：Wooden Case and Tray
• Specification：CE, CCC, ISO
• Trademark：TAYOR
• Origin：Shanghai, China
• HS Code：8456901000
• Production Capacity：500,Year

Technical specificationModelCNCXG600CNCXG800CNCXG1000CNCXG1250Cutting Pipe Diameter (mm)Φ50-630Φ60-800Φ100-1000Φ200-1250Pipe length(mm)2000-12000Cutting Speed (mm/min)80-1800Cutting Thickness(mm)Oxy-fuel:5-60mm, Plasma:1-25mmPlasma max beveling angle±45°Oxy-fuel max beveling angle±60°Basic components Pipe Chuck3 jaws concentric chuckCutting ModeOxy-fuel and PlasmaNumber of Control Axes2-6Driving MotorServo mototAvailable Plasma PowerHypertherm, Thermadyne, Kjellberg ,TAYOR LGKOther DataOperation languageEnglish or ChinesePower voltage3×380V±10% or up by user's local condition

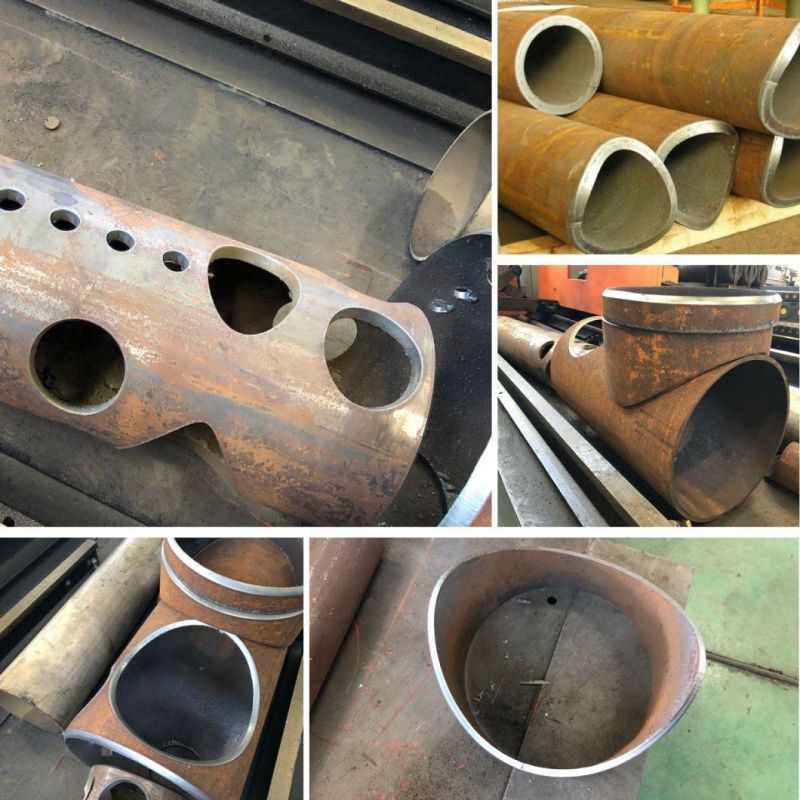

Cutting Sample

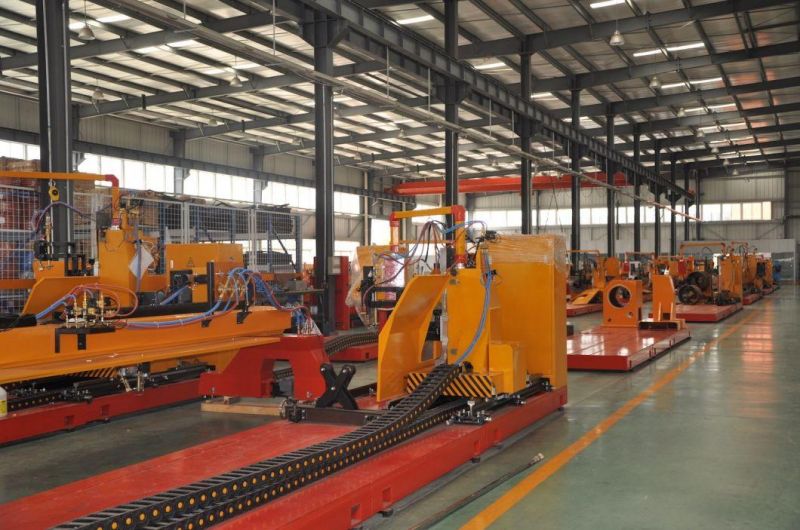

Workshop

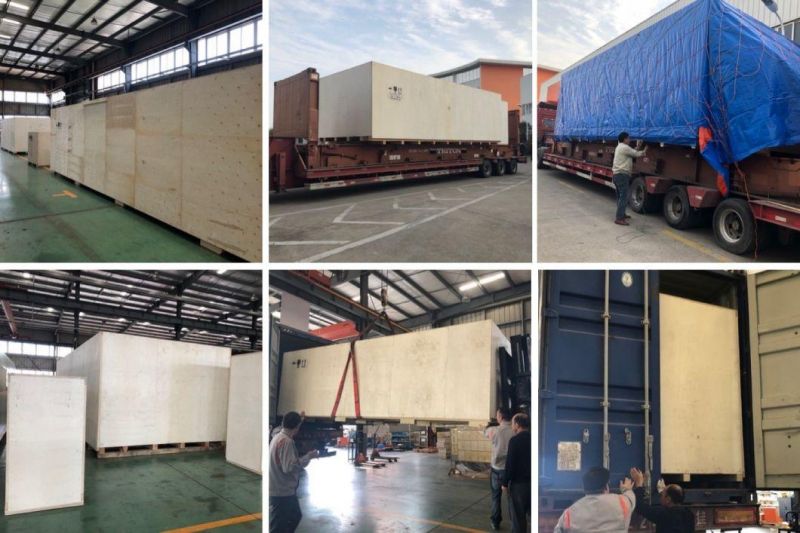

Packing and Delivery

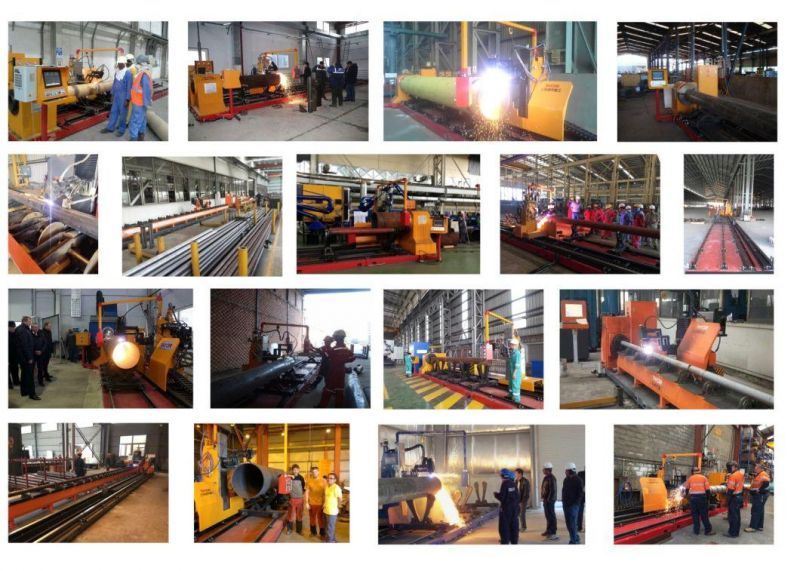

User's Site
