• Model NO.：PEQD-100E
• Certification：ISO9001, CE, FDA
• Warranty：12 Months
• Customized：Non-Customized
• Condition：New
• Working Area：150 X 100mm
• Rotary Range：0.125mm, 0-160mm
• Pin Hardness：92 Hra
• Lifting Range：300mm
• Parts Marking Range：Flat, Curved, Cylinder
• Special Service：OEM and ODM Are Available
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO9000 & CE&FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：84572000
• Production Capacity：100 Units, Month

Basic Info.

Model NO. PEQD-100E Certification ISO9001, CE, FDA Warranty 12 Months Customized Non-Customized Condition New Working Area 150 X 100mm Rotary Range 0.125mm, 0-160mm Pin Hardness 92 Hra Lifting Range 300mm Parts Marking Range Flat, Curved, Cylinder Special Service OEM and ODM Are Available Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification ISO9000 & CE&FDA Trademark Perfect Laser Origin China HS Code 84572000 Production Capacity 100 Units/ Month

Product Description

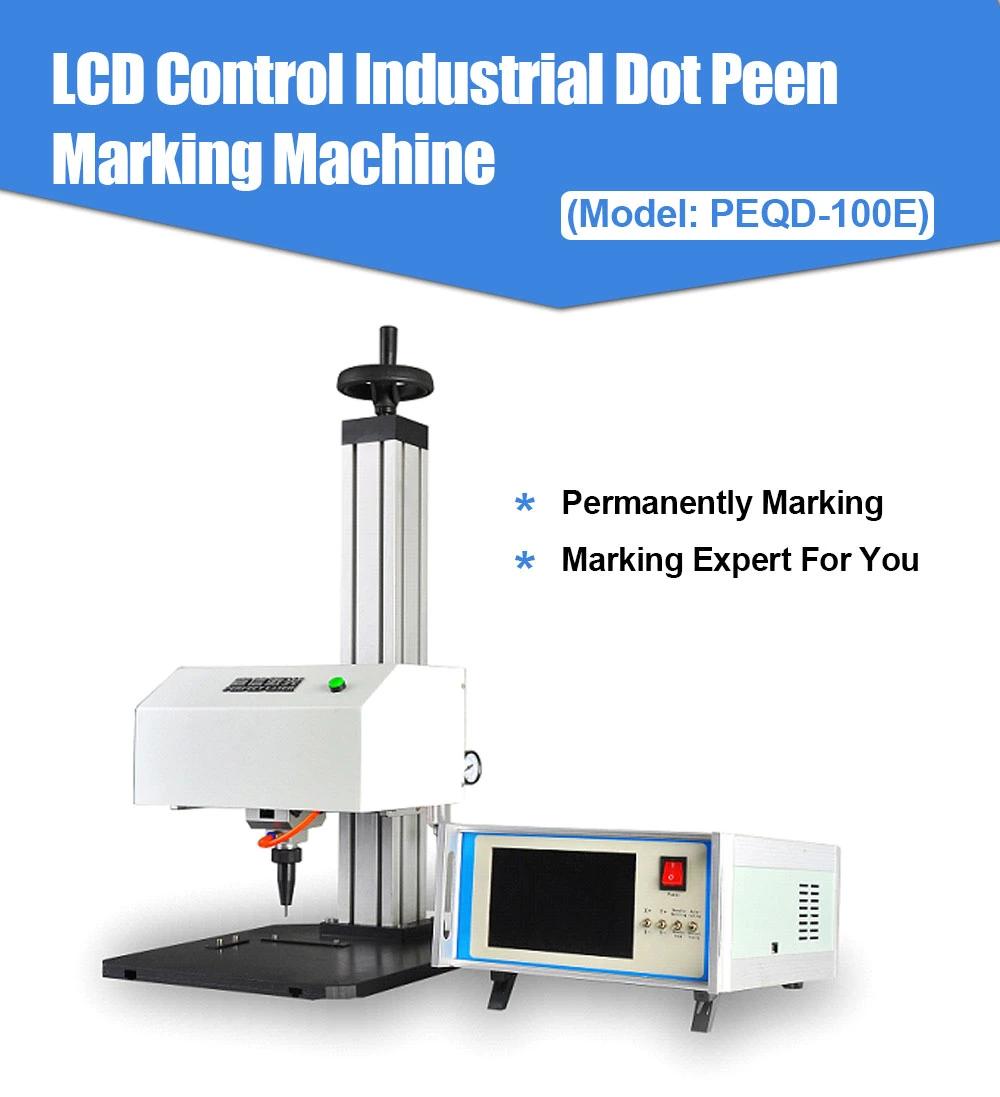

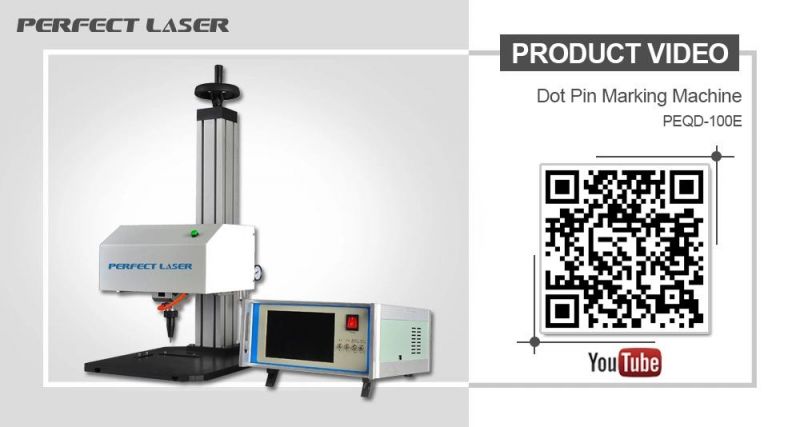

Perfect Laser PEQD-series pin marking machinery are high technology products from Perfect Laser Company, which integrate computer, automatic control and precise machinery. It is an industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal or no-metal materials) permanently.


2. Applicable materials and Industry:
PEFECT dot peen marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc.

Technical data:

Models	PEQD-100 PEQD-100E	PEQD-025 PEQD-025E	PEQD-030 PEQD-030E
Types	Planar Marking Type	Rotary Marking	Portable Marking
Applications	Suitable for flat surface marking logos, characters, letters, serial numbersand VIN codes on various kinds of metals such as steel, stainless steel, iron, copper, aluminum, alloys, etc., and hard non-metal labels & accessories. Widely used in the fields of automobile, motorcycle, mechanism, petroleum, aeronautical and space, electric apparatus and suitable for markings on steel, metal, nonmetal and hard plastic materials.	Adequate for both flat surface marking and rotary marking on various kinds of metals such as steel, stainless steel, iron, copper, aluminum, alloys , etc., and hard non-metal labels & accessories. Due to the rotary marking function, these models are widely used for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, etc.	Especially for marking on large-sized and unmovable metal items, and some hard nonmetallic work pieces, also can work with pipelining. Due to its small size and portable type, this model is widely used for marking characters, serials numbers and VIN codes on automobile or bodywork of car frames, automotive chassis, connecting rods, petrol pipe, crossbeam, mechanical parts, machine tools, metal pipes, pump bodies, fastening pieces, etc.

3. Dot Peen Marking Machine Features:

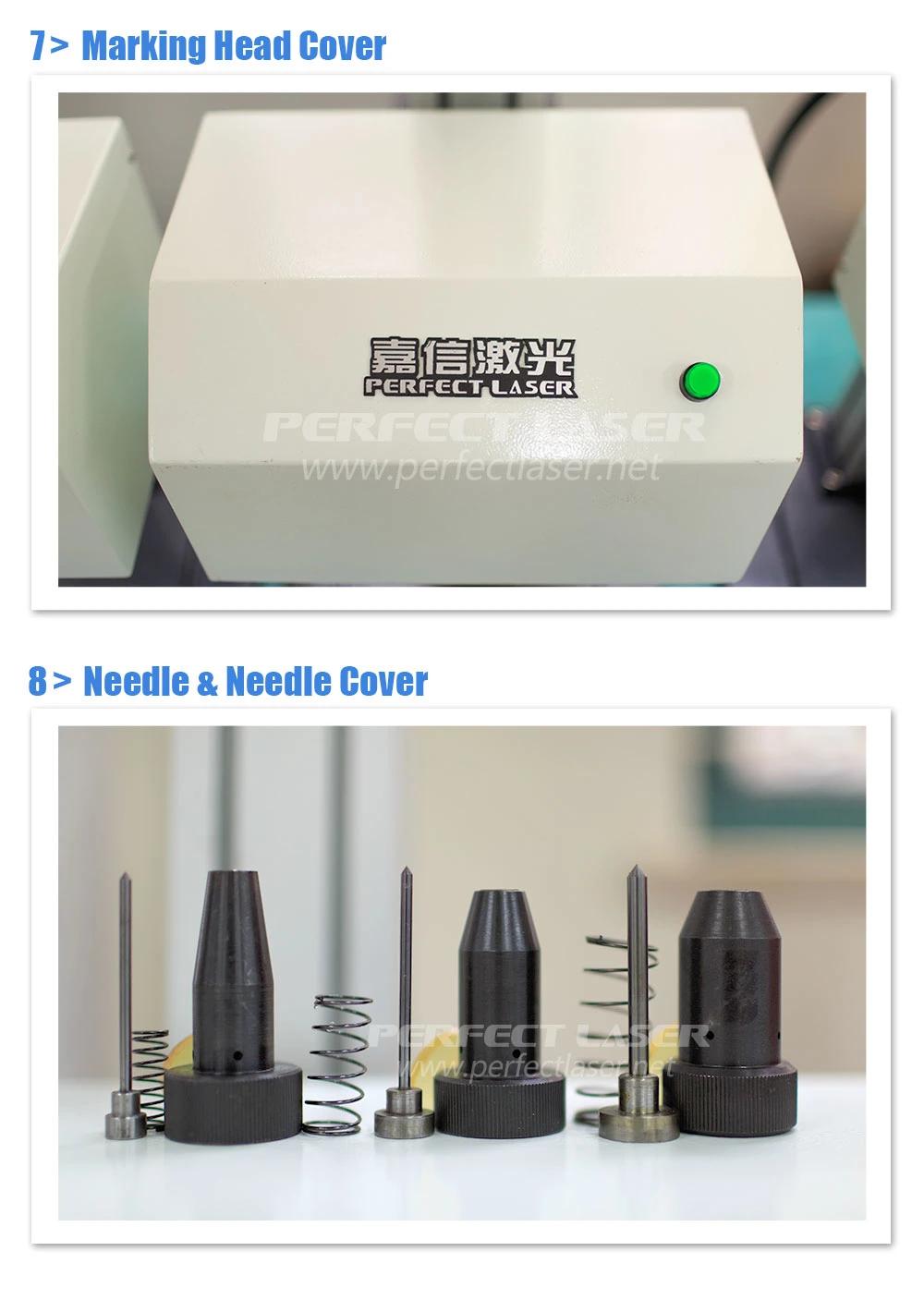

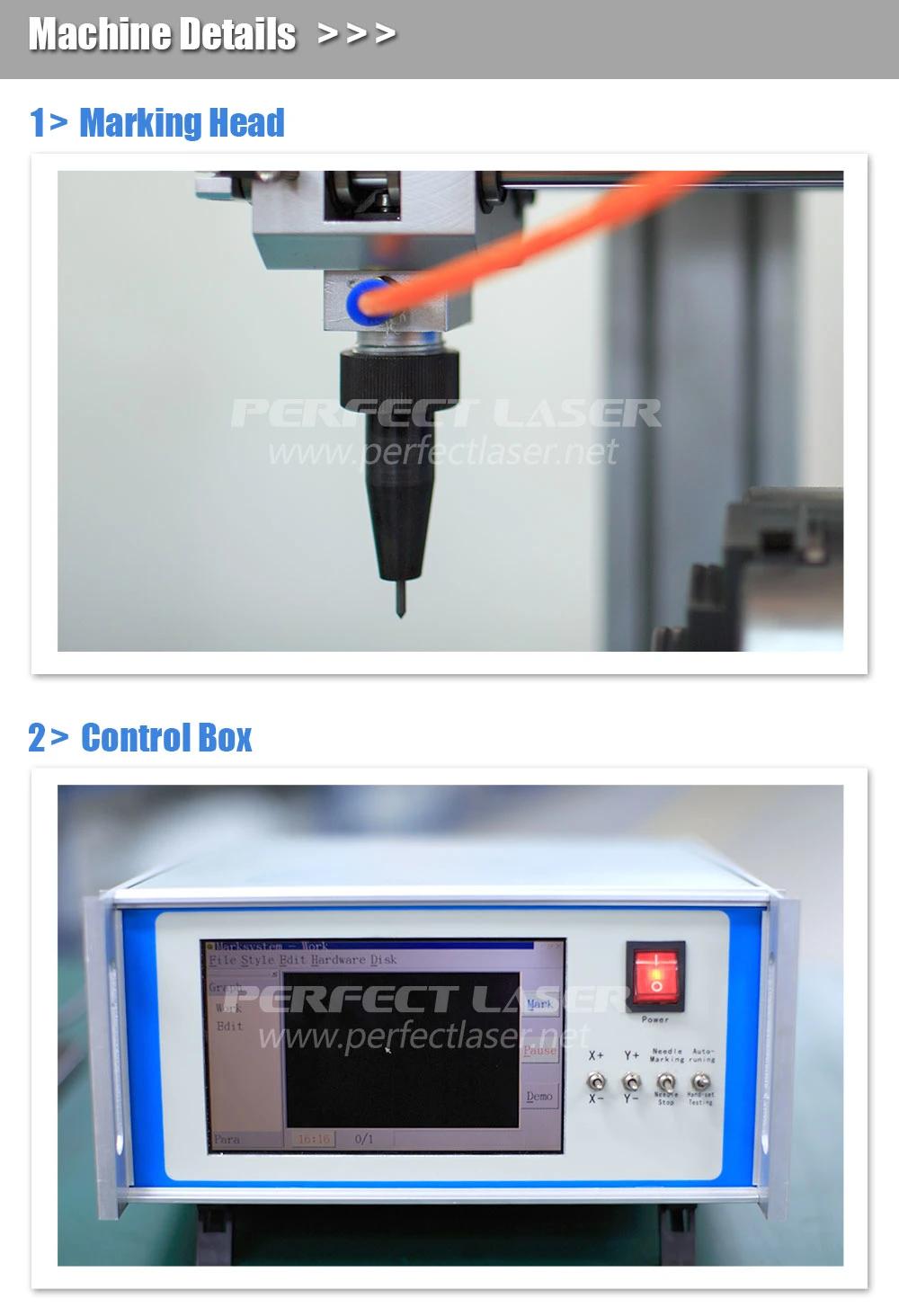

1. The marking pin/ needle adopt imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking needle can reach-92HRA. Its' excellent processing ability during work ensures the accuracy of high-speed marking & can make perfect marks on the work-pieces.

2. Perfect Laser's dot peen marking machine adopts American MAC "High-Frequency Valve". The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.

3. Adopt Japan OMRON "positioning switch", which can guarantee high accuracy& steadily performance.

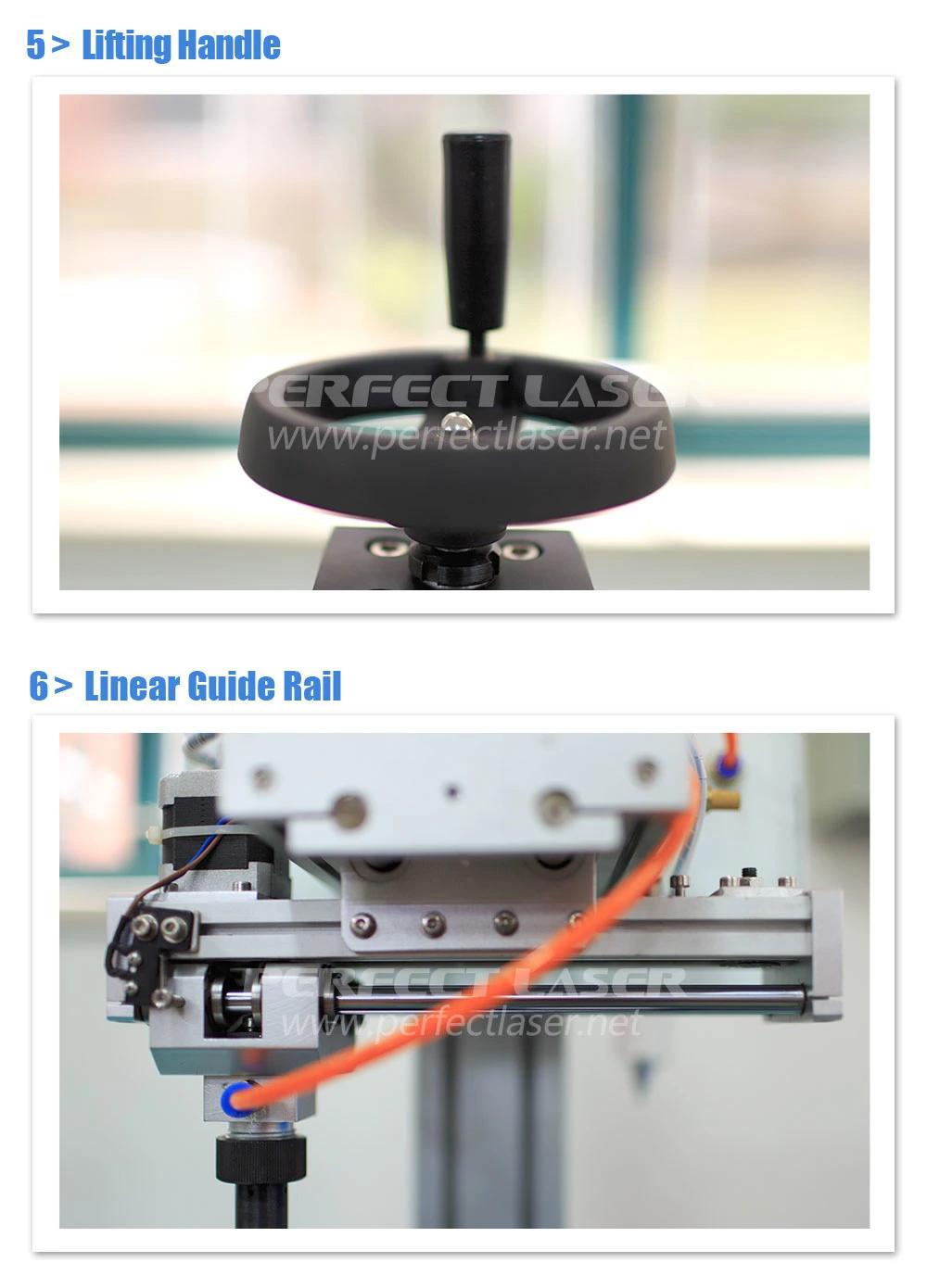

4. Adopt Germany import "linear-moving guide rail", can automatically lubricate & air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.

5. This dot peen marking machine is operated by WINDOWS software. The interface is friendly and easy. With a particular "PathPpre-setting" function, the equipment will be much easy to use during processing of the work-pieces. The function "self-inspection for common malfunction" makes a convenient & quick maintenance for operators.

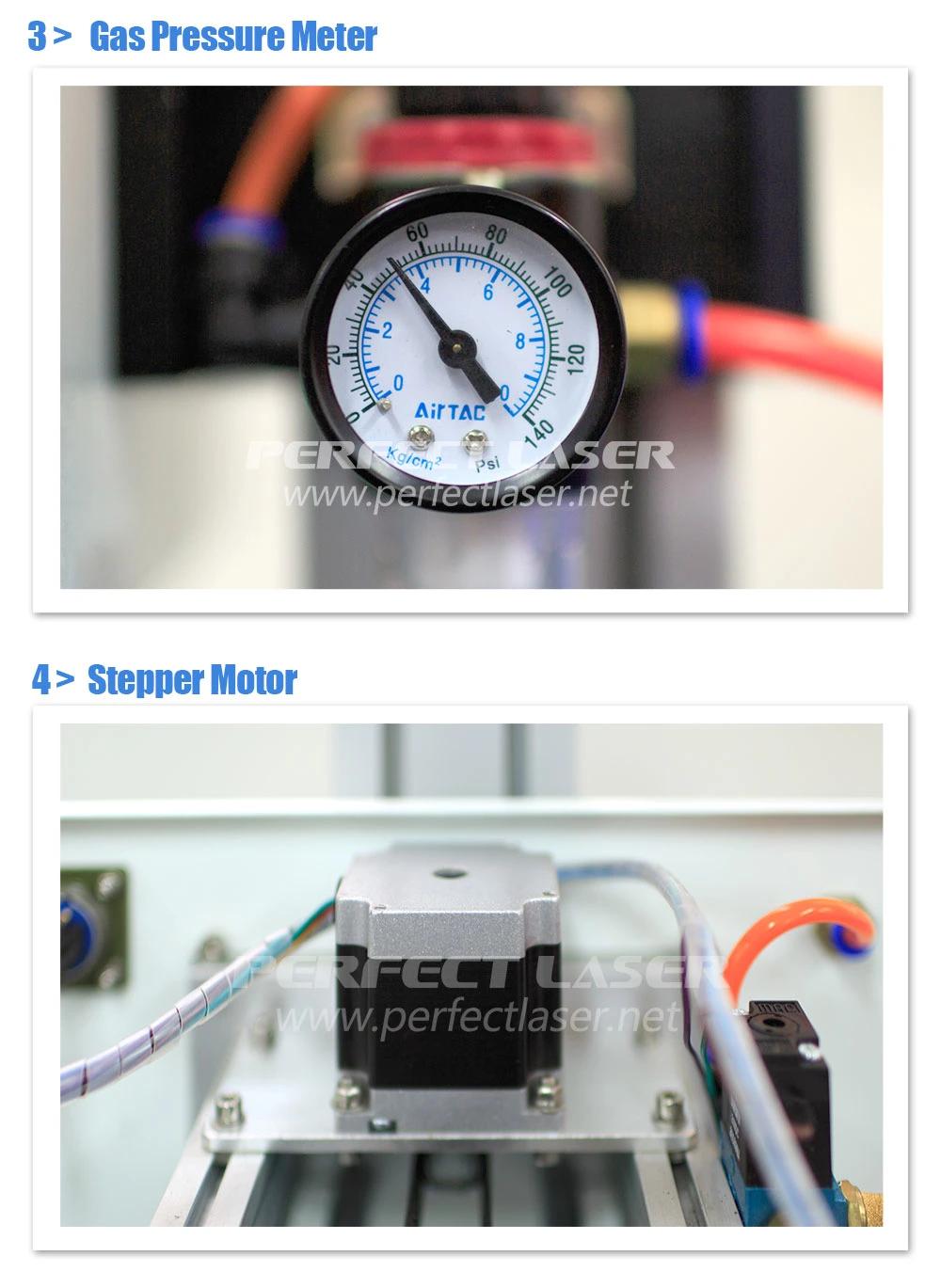

6. Adopt "marking steel-sheath system", which own-exploited by PERFECT LASER, had solved the problem of big-noise that frequently occurred in dot peen marking machine during marking processing. What's more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.

7. The lifetime could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.

8. Perfect Laser's dot peen marking machine can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.

9. This dot peen marking machine can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.

After- Sale Service for Dot Peen Marking Machine:
1> All of our machine will be fullchecked by our quality control department before the shipment. We make sure that
customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2>We will enclose an"Instruction Book", "Operation Manual" and "Training Video" (in English version) to you,
which is easily understood and handle by the customer.
3> We will offer plenty of online supports,  by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
