• Model NO.：Z94-1C,2C,3C,4C,5C
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Name：Steel Nail Making Machine
• Video Factory Inspection：Provided
• Mechanical Test Report：Provided
• Raw Materials：Mild Steel
• Mini Nail Diameter：0.9mm
• Max Nail Diameter：5.5mm or Customize
• Mini Nail Length：9mm
• Max Nail Length：150mm or Customize
• Color：Customer Requirement
• Machine Type：Nail Making Machine
• Transport Package：Wooden Case or Suitable for Sea Shipping
• Specification：To make steel nails
• Trademark：Hongshuo
• Origin：China
• HS Code：8463300000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. Z94-1C/2C/3C/4C/5C Feature Automation Certification CCC, ISO9001, CE Warranty 24 Months Customized Customized Advantage Simple Structure Condition New Name Steel Nail Making Machine Video Factory Inspection Provided Mechanical Test Report Provided Raw Materials Mild Steel Mini Nail Diameter 0.9mm Max Nail Diameter 5.5mm or Customize Mini Nail Length 9mm Max Nail Length 150mm or Customize Color Customer Requirement Machine Type Nail Making Machine Transport Package Wooden Case or Suitable for Sea Shipping Specification To make steel nails Trademark Hongshuo Origin China HS Code 8463300000 Production Capacity 300 Sets Per Month

Product Description

For Bengal Market Producer Steel Nail / Nail Producing Machine To Produce Nails

1. Description


2.1 Wire Drawing Machine (single type) OPTIONAL

Model No.	Single wire drawing machine
Maximal diameter	6.5mm
Minimum diameter	2.0mm
Motor Power	11kw
Drawing speed	56r/min
Overall size	2.5*1.3*1.0m
Weight	1.0tons

To reduce the diameter of wire from 6.5-2.0mm. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need.

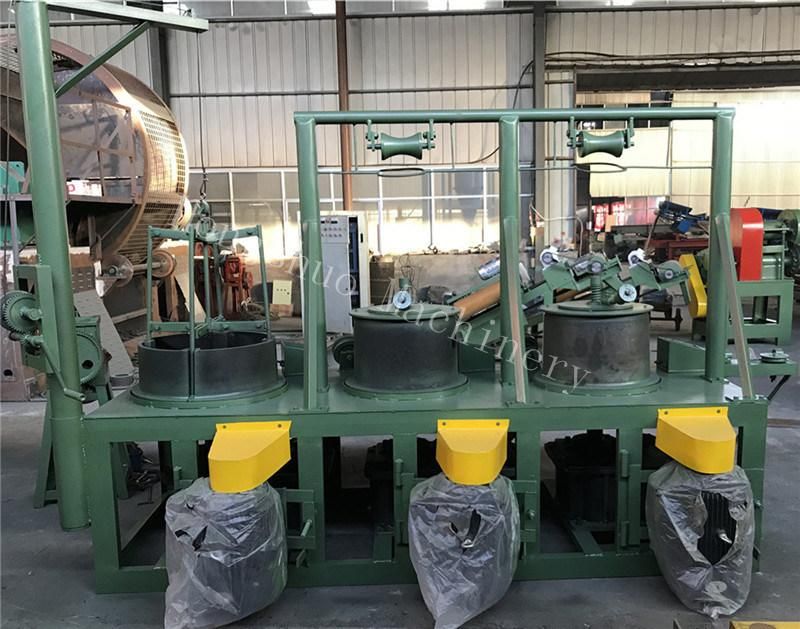

2.2 Wire Drawing Machine  (combined type) OPTIONAL

Model No.	LS3-560
Maxim Inlet Wire Diameter	6.5mm
Minimum Outlet Wire Diameter	2.0mm
Total motor power	15kw*3+2.2kw
Drawing speed	150m/min

To reduce the diameter of wire from 6.5-2.0mm. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need.
It is can be matched with 2 combinations, 3 combinations, 4 combinations or more according to the daily capacity.


2.3 Nail Making Machine


Model	Z94-5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. dia. of nail	5.5mm	4.5mm	3.5mm	2.8mm	1.6mm
Min. dia. of nail	3.8mm	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max. Length of nail	150mm	100mm	75mm	50mm	25mm
Min. length of nail	80mm	50 mm	30mm	16mm	9mm
Motor power	5.5kw	4kw	3kw	2.2kw	1.5kw
Nail making speed	220pcs/min	260pcs/min	320pcs/min	380pcs/min	450pcs/min
L*W*H	2.5*1.6*1.5m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.7*1.3*1.4m	1.5*1.3*1.2m
Weight	2.1tons	1.8 tons	1.5 tons	1.15 tons	0.8 ton
Output	2000kg/8h	1500kg/8h	800kg/8h	500kg/8h	80kg/8h

This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

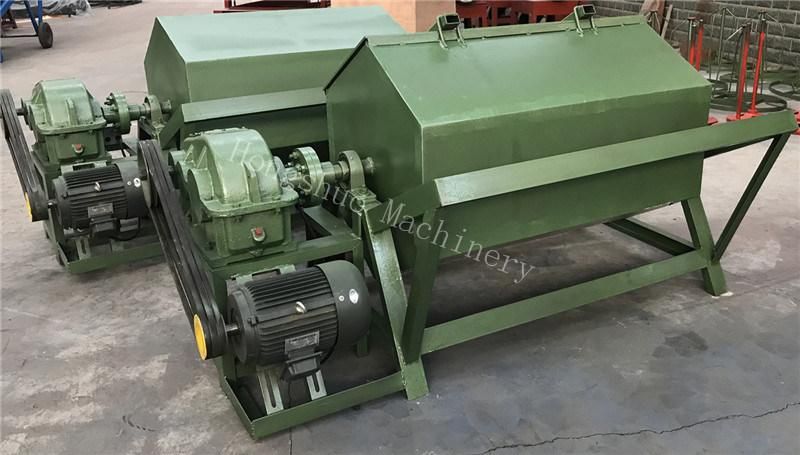

2.4 Nail Polishing Machine

Title	Motor power	Overall size	Capacity of nails
SD-400 Nail polishing machine	2.2kw	1.64*0.9*1.0m	400kg
SD-1000 Nail polishing machine	7.5kw	2.0*1.5*1.5m	1000kg

It's an auxiliary equipment of nail making machine, which can polish the nails much more brighter, smoother and anti-rust.

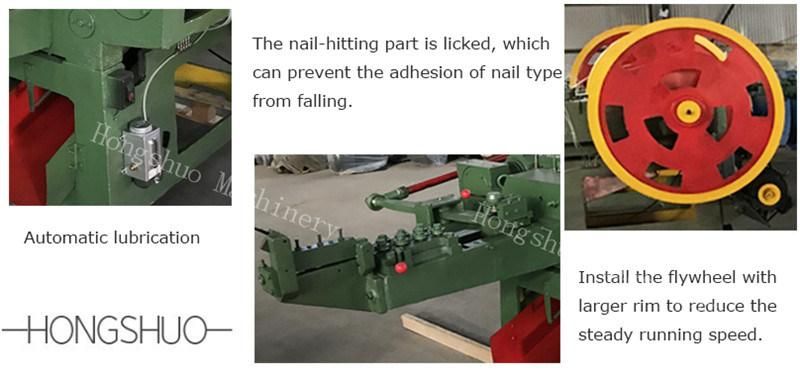

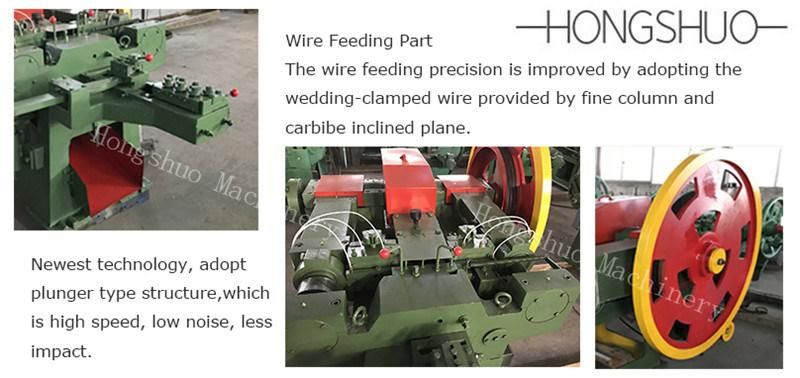

3. Features of our nail making machines

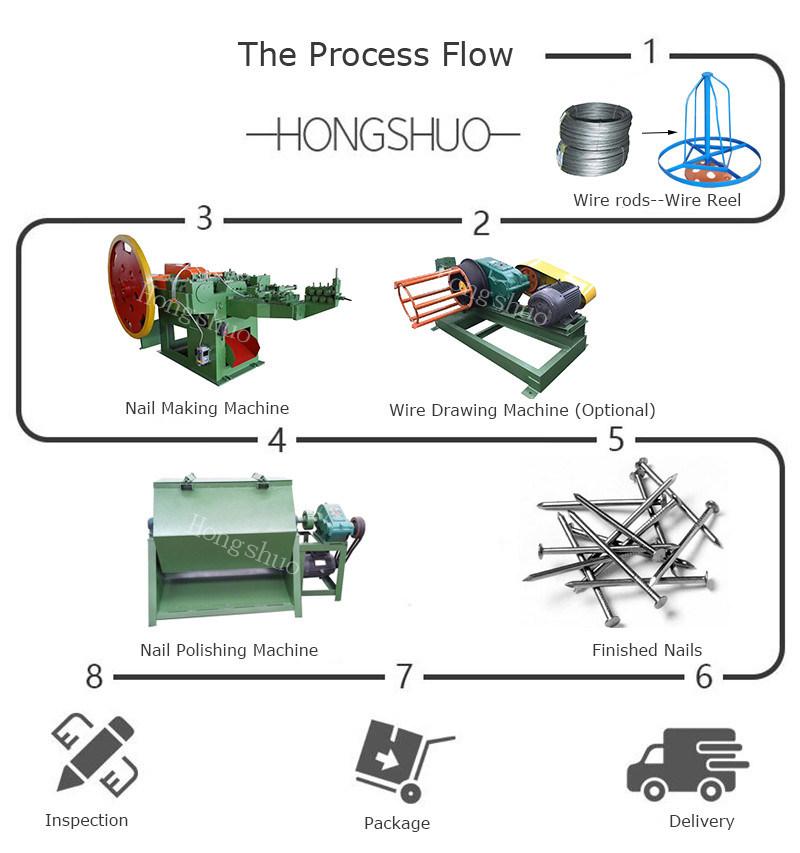

4. Full Process Flow


5. End Products

6. Packing & Delivery


7. FAQ
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990.
--2--Q: Can i use one machine to make different size nails?
A: Yes, for example, Z94-4C model can produce 1-4inch nail, for different size, it just need to change the nail mould.
--3--Q: What's the material waste during the production for nails?
A: The wastage is less than 1%, one ton wire can make about 990kg nails.
--4--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--5--Q: How long is your delivery time?
A: Generally 10 days if in stock. Or 15days if out of stock.
--6--Q: How to pack the machines?
A: For the packaging, usually use the export standard wooden box or whole container.
8. Company Profile
