Double Thread Bolt Making Machine for Pipe Clamp or Wood

Nantong Zhenhuan Trade Co., Ltd.
  • Type：Forging Operation
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：CCC, ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：3D3B
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Forging Station：3
  • Max. Diameter of Cutting off：12mm
  • Max. Length of Cutting off：180mm
  • Kick out Length：Max. 175mm
  • P.K.O Length：Max 30mm
  • Cutting Die Size：40 X 80mm
  • Main Die Hole：80 X 135mm
  • Dies Pitch：90mm
  • Punch Hole：50 X 130mm
  • RAM Stroke：250mm
  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：zhenhuan
  • Origin：Jiangsu
  • Production Capacity：100PCS,Min

Description

ItemDataMachine code Forging station3Max. diameter of cutting off12mmMax. length of cutting off180mmKick out lengthMax. 175mmP.K.O lengthMax 30mmCutting die size40 x 80mmMain die hole80 x 135mmDies pitch90mmPunch hole50 x 130mmRam stroke250mmForging power85mmSuitable of product sizeM10Max. length of products150mmOutput100-120pcs/minMain motor power22kWWeight of machineAbout 13T

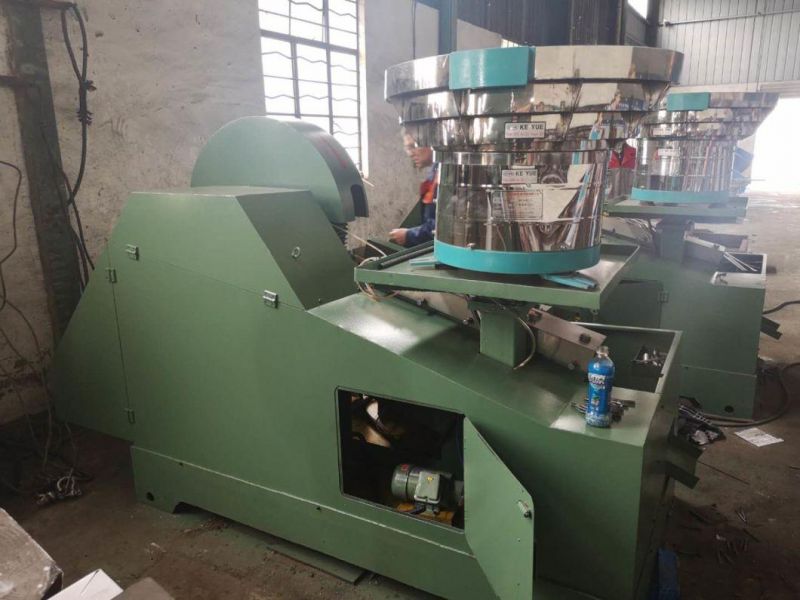

Double Head Thread Rolling Machine
Double Thread Bolt Making Machine for Pipe Clamp or Wood

I Description of the machine
This machine is specialized for clamp pins with two thread rolling heads.

II Main technical dataItemDataSuitable screw diameter8-16mmProducing speedAbout 45 pcs/minMain driving power7.5kWMachine dimension2500 x 1000 x 1500mmWeight of machine1500kg Double Thread Bolt Making Machine for Pipe Clamp or Wood

Double Thread Bolt Making Machine for Pipe Clamp or WoodDouble Thread Bolt Making Machine for Pipe Clamp or WoodDouble Thread Bolt Making Machine for Pipe Clamp or WoodDouble Thread Bolt Making Machine for Pipe Clamp or Wood
