• Model NO.：PPAW
• HS Code：8468800000
• Production Capacity：50sets,Month

Basic Info.

Model NO. PPAW HS Code 8468800000 Production Capacity 50sets/Month

Product Description

1,loading weight :5000Kg;
2,diameter:φ80~φ610mm;
3,rubber roller 's diameter:φ250×80;
4,liner speed :120~1200mm/min;
5,liner speed adjusting way:converter speedless
6,elevating speed:450mm/min;
7,elevating stroke:600mm;
8,central distance:280~500mm.

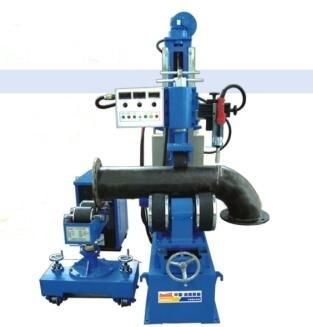

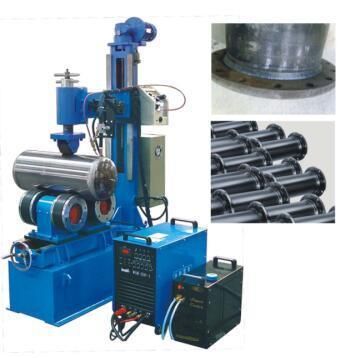

This machine is composed of slewing column,drifting pinch type roller, roller adjusting part,base ,control box and so on . The column beam is made of rectangle tube, equipped with rails on both sides, fixed on slewing bearing at the base . There is the elevating structure of pinch type rotator at the head of column, which is driven by motor,worm wheel,worm reducer and guide screw pair, one head of guide screw is connected to guiding device of drifting pinch type rotator, while another head is fixed with guide screw in the column.guiding device of drifting pinch type is space gliding t, it can assure the stability and agidity about rotator elevating. There is a slewing bearing between column and base , which makes the column ±180° rotating. Pinch type rotator is hand control, when loading workpiece on rotator, adjusting drifting pinch type roller to packit, then start control box to make the workpiece rotator. Rotating speed is adjustable.

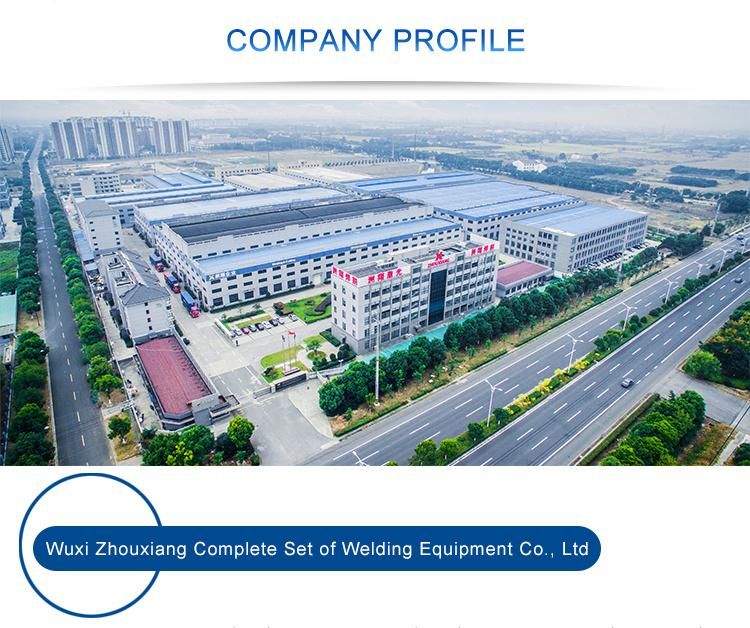

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.

We have high sincerity to do business with customers all over the world and establish good friendships.
