• Model NO.：TRM Series
• Spinning Deformation Condition：Cold Spinning
• Spinning Belt Wheel Type：Rolling V Type Belt Wheel
• Spinning Wheel Number：Triple
• Finished Product：Pipe
• Finished Product Shape：Cylinder Shape
• Process Diameter：Standard AC Pipes
• Origin：Guangzhou China
• HS Code：8463900090

Basic Info.

Model NO. TRM Series Spinning Deformation Condition Cold Spinning Spinning Belt Wheel Type Rolling V Type Belt Wheel Spinning Wheel Number Triple Finished Product Pipe Finished Product Shape Cylinder Shape Process Diameter Standard AC Pipes Origin Guangzhou China HS Code 8463900090

Product Description

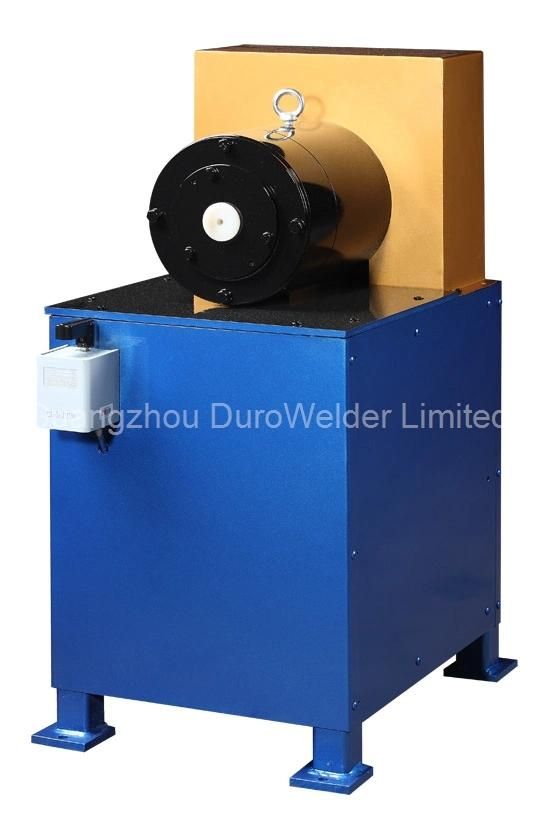

Copper tube tapering machine/copper tube spinning taper machine

1. Automatic Tube Mouth Reducing Machine is specially designed to prepare tubes for Butt welding of dissimilar materials.
2. It is used to reduce mouth of copper tube for butt-welding in the Automatic Copper and Aluminium Tube Butt Welding Machines
3. Automatic Tube Mouth Reducing Machine can be used for mouth reduction of any other metal, such as steel, aluminium , etc.
4. Machine is very easy to operate and move around due to a compact size and convenient access to work area.

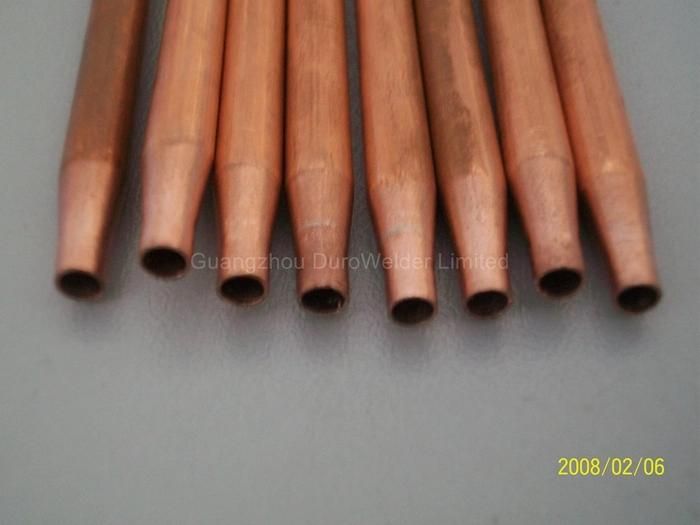

5. Outside diameter of tube after reducing cycle has very attractive appearance polished look and uniformed size.
6. Repeatability and accuracy is very good all pieces produced with set adjustment are identical in size and appearance.
7. Different diameter requirements require mold replacement dedicated to that size.

Main Technical Parameters

1. Input Voltage:380~~480VAC ,50/60Hz
2. Motor Power: 2.2KW.(Different size of tube, need different power!)
3. Tube Diameter:Φ6~Φ12.7mm
