• Model NO.：YX27-190-950
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Roller：Solid Steel
• Roller Process：CNC Process, Hard Chrome Plated
• Shafts：72mm Solid Steel
• Cutter Material：Cr 12 Mould Steel
• Cutter Process：Heat Treatment
• Cutting Type：Cut to Legnth

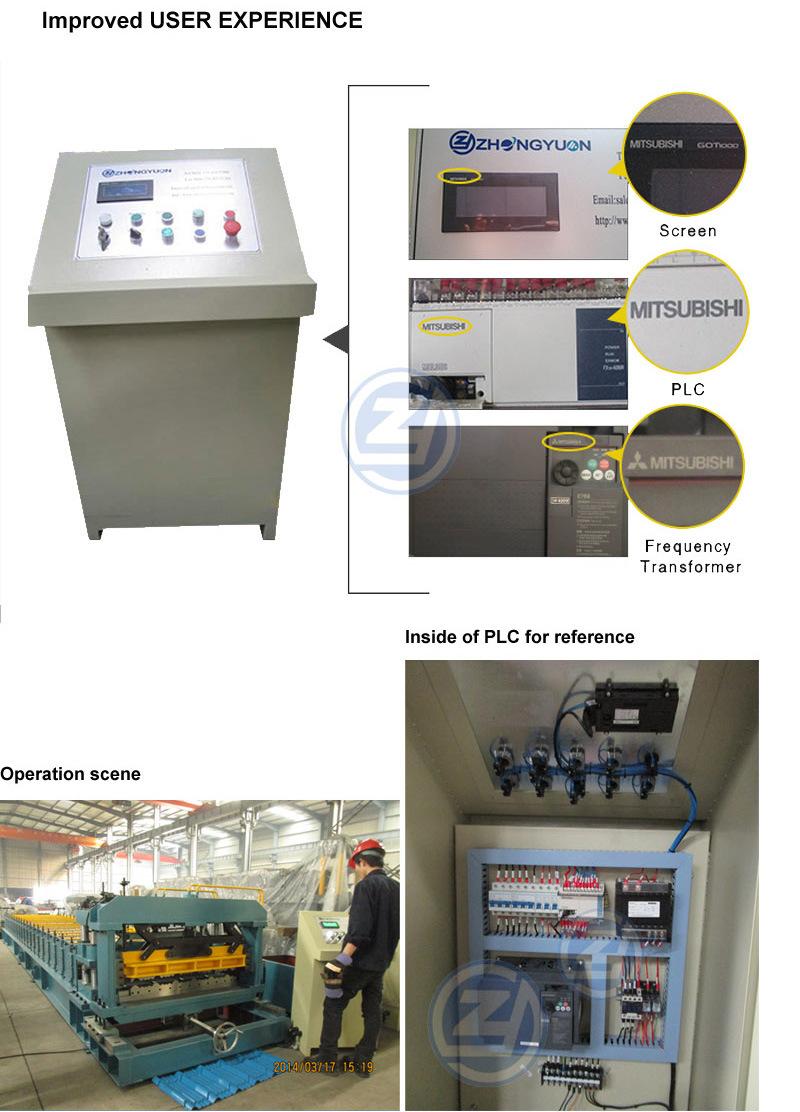

• Control System：Mitsubishi PLC
• Operate Language：Englishi or as Required
• Main Power：5.5kw
• Name：Long-Span Step Tile Roll Forming Machine
• Transport Package：One 40gp Container for Loading One Machine
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：Hangzhou
• HS Code：84552210
• Production Capacity：200 Sets Per Year

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.4-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)2-3Speed adjusting modeAC FrequencyRoller drive                                              Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter materialCr12 mould steelLength measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW

Components of machine

Decoiler	1set
Feeding & guiding device	1set
Main roll forming machine	1set
Hydraulic pressing system	1set
Hydraulic cutting system	1set
Controlling system	1set
Run out table	1set

Product Feature:
The colored steel tiles produced by roof tile forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.



Why us?
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.
