• Model NO.：DK7712 , DK7720 , DK7730 , DK7732 , DK7735 , DK774
• Worktable Size：200*270mm
• Machine Size：900*700*1250mm
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：WELLON
• Origin：China
• HS Code：8456301090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. DK7712 / DK7720 / DK7730 / DK7732 / DK7735 / DK774 Worktable Size 200*270mm Machine Size 900*700*1250mm Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 8456301090 Production Capacity 200PCS/Month

Product Description

Performence Features:
Stable structure : Use high quality casting materials, resin sand process, enhanced internal stiffeners, after 2nd
tempering and natural aging,which reduces casting distortion. Guide rail after bearing steel forging through heat
treatment, to reach the standard hardness, and extend the using life.
High precision process: All parts are machined by CNC Machining Center and precision grinding machine, to ensure
machining accuracy and assembling accuracy, and ensure our products' quality.
Practical technology: Wire transport cylinder's surface is after hardening treatment, to increase its wear resistance and
make it durable. Flexible non-contact reversing switch, reducing the direction change impact, making operation more
smooth, ensure porducts' finish. Increase secondary insulation technology to improve overall machine's insulation
performance, reducing wire loss and improving efficiency.

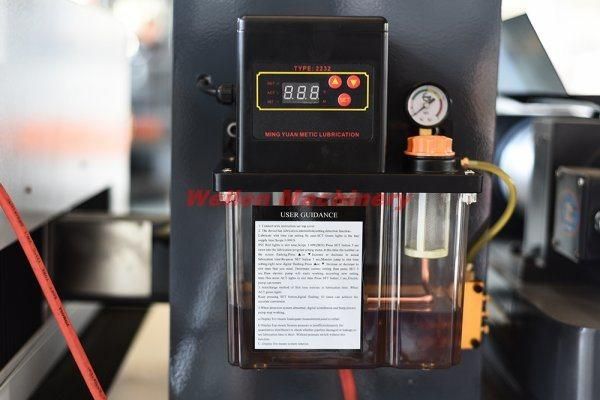

Centralized oil supply unit ensures machine's all moving parts are fully lubricated, reducing mechanical wear and
extend their using life.
Quality Control: All spare parts use well-known brands, machined parts and assembling are after several process
inspection, laser interferometer, lineprint scale, reading microscope, hardness tester, dynamic balance inspection
instrument, etc. to ensure ervey set of our machines is qualified before delivery.
Optional configuration:
Electronic scale: High precision optical electronic scale digital display, can realize X, Y-axis real-time location tracking
Frequency electrical appliances: Machine's electrical appliance can choose frequency control
Wire rack lifting: Wire rack is optional, can choose electric lifting function.
Technical parameter:

Model	Worktable size (mm)	Worktable travel (mm)	Max. cutting thickness (mm)	Processing taper	Max. load weight (kg)	Machine weight (kg)	Machine dimension(mm)
DK7712	200x270	120x160	100		50	600	900x700x1250
DK7720	270x420	200x250	200	6°/80mm	100	800	1160x880x1400
DK7730	340x560	300x360	400	6°/80mm	200	1250	1485x1050x1700
DK7732	380*600	320x400	400	6°/80mm	300	1400	1650x1150x1800
DK7735	380x650	350x450	400	6°/80mm	300	1440	1660x1330x1700
DK7740	410x710	400x500	400	6°/80mm	450	1600	1830x1490x1700
DK7740B	450x840	400x630	400	6°/80mm	450	1670	1845x1610x1700
DK7745	500x750	450x550	400	6°/80mm	450	1650	1865x1520x1700
DK7755	596x880	550x650	500	6°/80mm	800	2500	2070x1770x1790
DK7755B	596x1060	550x850	500	6°/80mm	850	2600	2070x1950x1790
DK7763	790x1260	630x1000	600	6°/80mm	1000	3500	2265x1865x1980
DK7763A	720x1260	630x1000	600	6°/80mm	1000	3200	2200x2160x1930
DK7780A	880x1440	800x1200	600	6°/80mm	1500	4700	2700x2300x1900
DK7780B	880x1260	800x1200	600	6°/80mm	1500	4500	2620x2260x1900
DK7780	900x1500	800x1200	600	6°/80mm	1500	5500	2800x1950x2150
DK77100	1010x1500	1000x1200	600	6°/80mm	1500	5600	2930x2500x2000
DK77120	1300x1900	1200x1600	600	6°/80mm	4000	10000	4200x3700x2000
