CNC Plasma Cutting Machine, Steel Plasma Cutting, CNC Plasma
Jinan Guanjiahong CNC Machinery Co., Ltd.- Layout:Vertical
- Cutting Material:Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Base Info
- Model NO.:3015
- Automatic Grade:Automatic
- Cutting Mode:Plasma Cutting
- Transport Package:Polywood Case
- Specification:1530
- Trademark:GJH
- Origin:Shandong China
- HS Code:8456401000
- Production Capacity:100 Sets Per Month
- Package size per unit product:3950.00cm * 2280.00cm * 1900.00cm
- Gross weight per unit product:1800.000kg
Description
Basic Info.
Model NO. 3015 Automatic Grade Automatic Cutting Mode Plasma Cutting Transport Package Polywood Case Specification 1530 Trademark GJH Origin Shandong China HS Code 8456401000 Production Capacity 100 Sets Per MonthPackaging & Delivery
Package size per unit product 3950.00cm * 2280.00cm * 1900.00cm Gross weight per unit product 1800.000kgProduct Description
Professional Plasma Cutting machineFor Metal: Stainless steel, Carbon steel, Aluminum

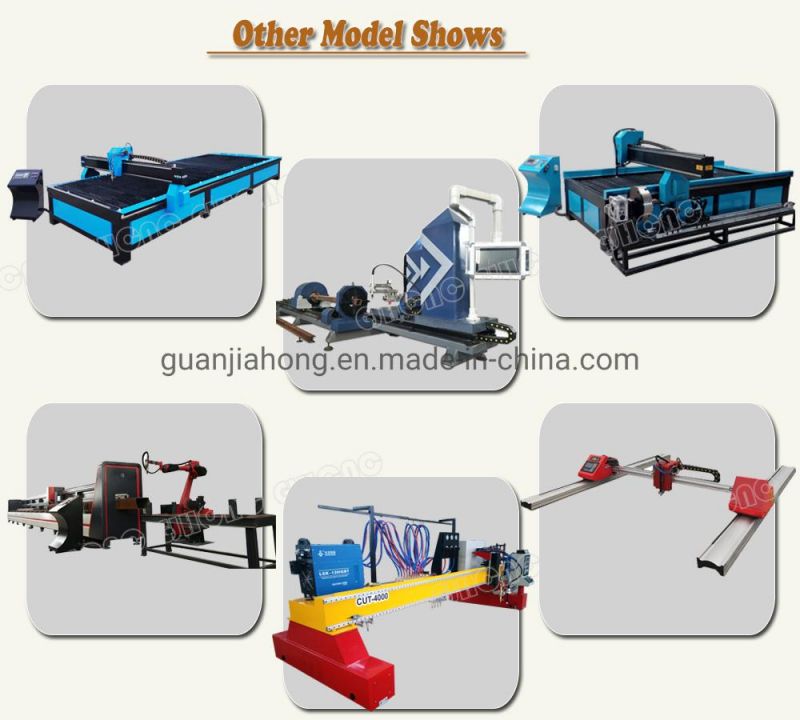

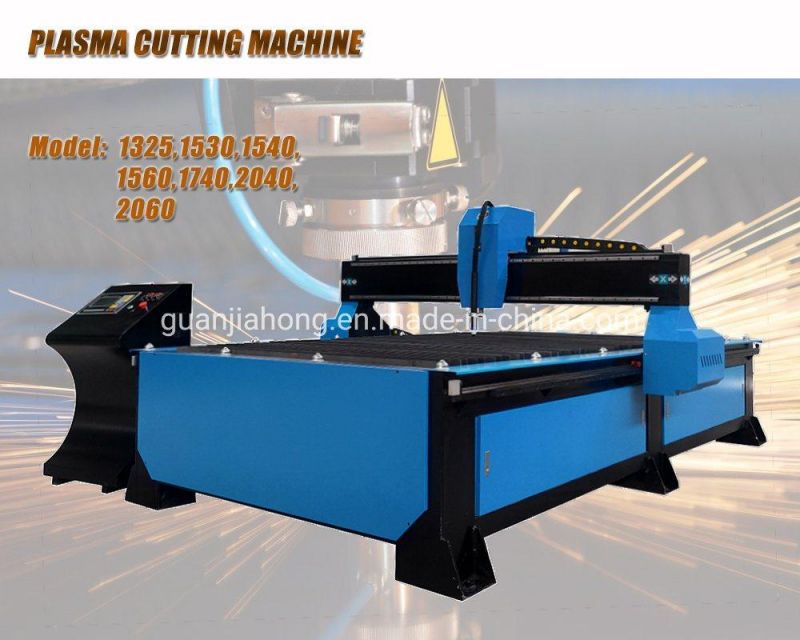

Model:1212, 1325, 1530, 1560, 2040, 2060, or custmized size
From professional Plasma machine manufacturer
Feature:
1. Seamless welding machine body
2. 1500*3000mm working area
3. China LGK 160A Plasma source
4. Independent control cabinet
5. STARfire control system
6. Automatic Torch height controller
7. Starcam software
8. 2GB processing file
9. High precision square guide rail
10.High precision ball screw
Application:
Aluminum, Copper, Titanium, Nickel, Iron, Galvanized Sheet, White Steel, Titanium Plate, Carbon Steel, Stainless Steel, Alloy Steel, Composite Metal.

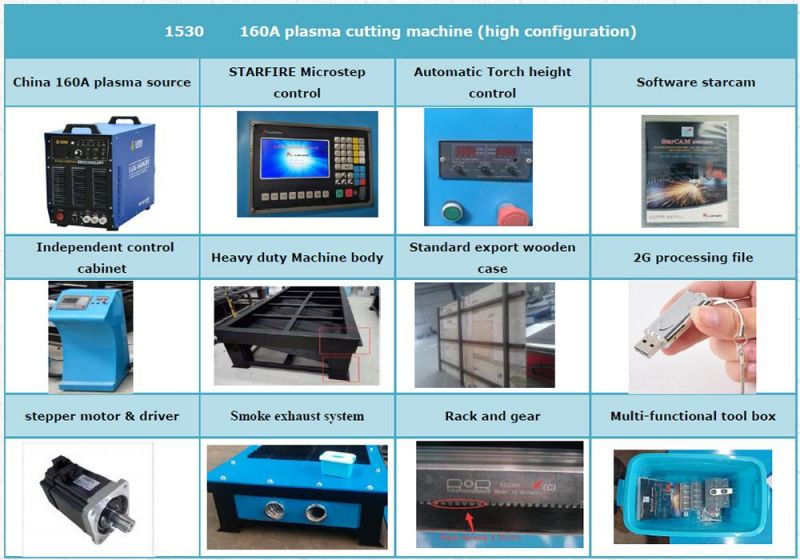

Our High Quality Parts:

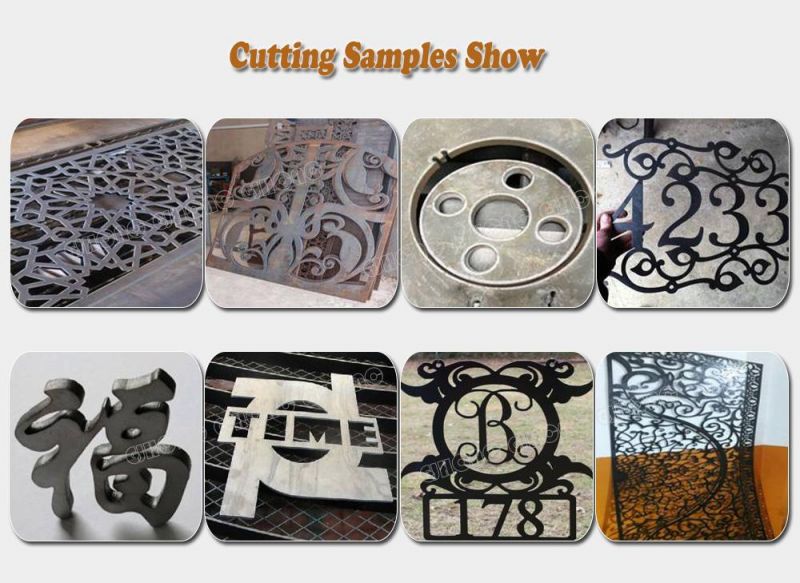

Perfect Sample as follows:
Technical Parameter:
Model | 1530 160A Plasma cutting machine (high configuration |
X,Y working area | 1500*3000mm |
Z working area | 150mm |
Packing dimension | 2280mm*3950mm*1850mm |
Lathe bed | Very thick steel structure |
Machine Power | 8.5kw |
Working voltage | 380V three phase 60hz |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Maximum cutting speed | 12000mm/min |
Torch Height control mode | Automatic |
Cutting thickness | Max 35mm carbon steel |
Plasma power supply | LGK160A |
Control system | STARfire |
Motors | Stepper motor |
Software | Starcam |
Weight | 1600KG |
Plasma Air Pressure | Max.0.8Mpa |
Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
LCD Display Dimension | 7 Inches |
Customer recognition is our greatest pursuit.
If you have specific requirement , customized is available.
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
Guarantee & After-sale service
1.One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3.Free training to make sure you master the operation of the cnc router.
OEM Service Available
1.Usually, we will manufacturer the machine as our regular design.
2.X Y Z Working Area could be custmer-oriented designing.
3.Special configuration could be customer-oriented designing.
