• Model NO.：LW-1-7,450
• Max. Number of Block：12
• Certification：ISO
• Condition：New
• Transport Package：Suitble for Shipping
• Specification：1520*810*1700mm
• Trademark：shenyida
• Origin：Wuxi, China
• HS Code：84633000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. LW-1-7/450 Max. Number of Block 12 Certification ISO Condition New Transport Package Suitble for Shipping Specification 1520*810*1700mm Trademark shenyida Origin Wuxi, China HS Code 84633000 Production Capacity 100PCS/Month

Product Description

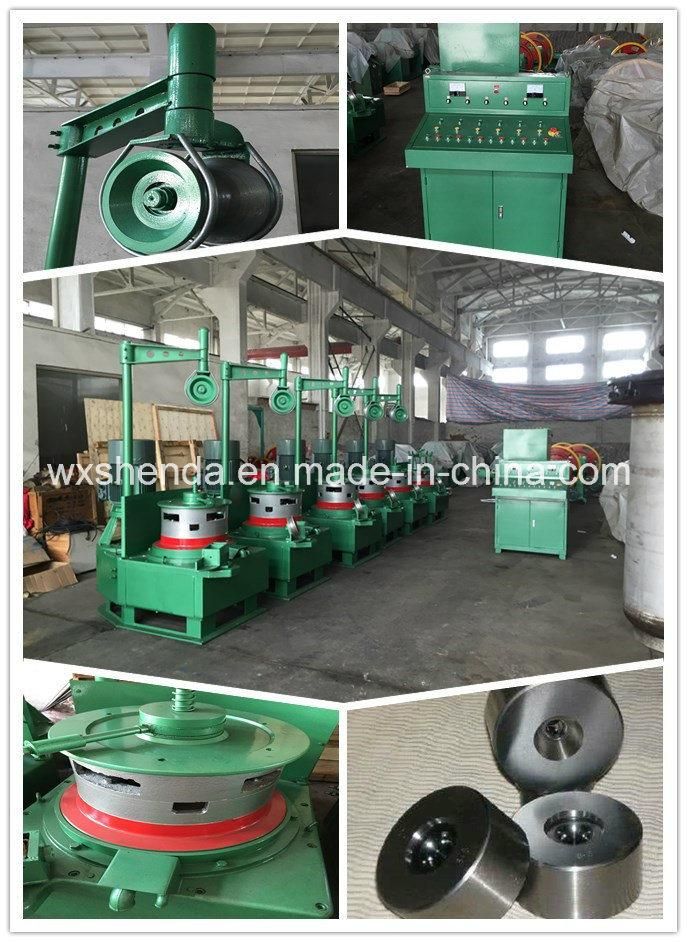

LW-1-7/450 Wire Drawing Machine
Vertical Type Wire Drawing Machine
The Ideal equipment used for high- medium- low carbon steel, copper, aluminum and so on.
Featured with continue drawing, dry drawing, electrical control, safe to operate and long time use life.


Model	LW-1-6/560	LW-1-7/450	LW-1-6/350	LW-1/800
Material intensity	δb≥110kg/mm2	128kg/mm2	δb≥140kg/mm2
Max diam of material	6.5mm	3.4mm	2.5mm	14mm
Min diam of material	2mm	1mm	0.75mm	6.0mm
Diam of block	1-6/560	1-7/450	1-6/350	1-800
Max average condensation	30%	20%	21%	25%
Total condensation	78-88.5%	77.90%	78%
Max.speed of block	245m/min	346.9m/min	200m/min	0.4m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw	80kw
Weight	2000kg	1500kg	1000kg	4500kg
Overal size	1700x1150x1750mm	1520x810x1700mm	1400x800x1500mm	9730*3340*2020

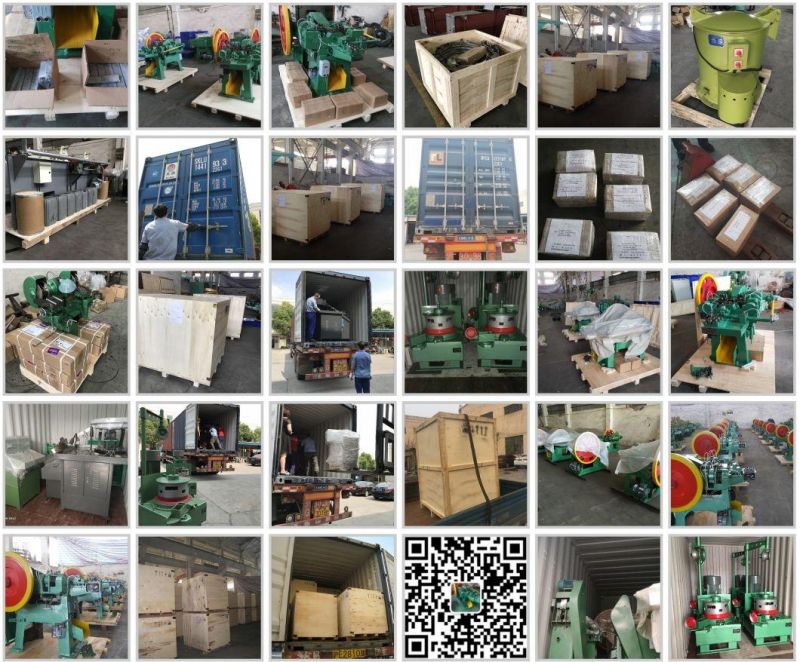

Machine Packing and Delivery

By Sea Or by Air

Plywood case/steel pallet+plastic film wrap
