• Model NO.：QC12K 6*2500mm
• Cutting Thickness(Mm):6：Cutting Lengt(Mm):2500
• Transport Package：Plastic Cover
• Specification：CE,ISO
• Trademark：ZYMT
• Origin：China
• HS Code：8462399000
• Production Capacity：3000 Sets,Year

No.Parts NameBrandBrand Location1Main motorSiemensGermany2Backgauge motorJiahuangHangzhou China3ElectricsSchneiderFrance4Oil CylinderYuhuaMaanshan China5Seal ringNokJapan6Hydraulic valveRexrothGermany7PumpHangfaShanghai China8ControllerE21SNanjing China9BladesJinshanShanghai China10Pipe connectorEMBGermany11FootswitchKarconSouth Korea12Ball screwHiwinTaiwan13Controller with mobile armYES14Front and back protection fenceYES15Backgauge with ball screwYES16Backgauge travel600MM17Shadow line lightYES18Emergency buttonYES
Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

QC12K Series Technical Parameters:TypeCutting
Thickness
(mm)Cutting Length(mm)Cutting Angle(°)Material Strength
(KN/CM)Stroke (times/min)Power(kw)Weight(kg)Dimension(mm)4×2500425001°30'≤450105.538003040*1610*16204×3200432001°30'≤450105.550003840*1610*16204×4000440001°30'≤45085.565004600*1700*17004×6000460001°30'≤45057.5110006460*2100*32006×2500625001°30'≤450107.550003040*1610*16206×3200632001°30'≤45097.560003840*1610*16206×4000640001°30'≤45087.580004620*1750*17006×5000650001°30'≤45067.5105005400*1750*17006×6000660001°30'≤450511165006480*2100*23008×2500825001°30'≤450107.560003040*1700*17008×3200832001°30'≤45087.572003860*1700*17008×4000840001°30'≤45087.588004640*1700*17008×5000850001°30'≤45087.5115005400*2400*20008×6000860001°30'≤450811180006480*2100*235010×25001025001°30'≤45091173003040*1700*170010×32001032001°30'≤45091180003860*1700*170010×40001040001°30'≤450811120004650*2100*200010×60001060002°≤450515240006500*2100*230012×25001225002°≤450918.590003140*2150*200012×32001232002°≤450918.5108003880*2150*200012×40001240002°≤450818.5130004680*2150*200012×50001250002°≤450618.5160005900*2150*200012×60001260002°≤450518.5290006900*2600*270012×80001280002°≤450518.5465009000*3500*350016×25001625002°30'≤450918.5110003140*2150*200016×32001632002°30'≤450818.5130003880*2150*200016×40001640002°30'≤450818.5163004650*2150*220016×50001650002°30'≤450618.5200005900*2600*270016×60001660002°30'≤450522360006900*2700*270020×25002025003°≤450822155003440*2300*250020×32002032003°≤450822180004150*2350*270020×40002040003°≤450522210004850*2350*270025×25002525003°≤450837190003200*2700*290025×32002532003°≤450537230004200*2700*290025×40002540003°≤450537270003850*2700*290030×25003025003°≤450537235003300*2900*290030×32003032003°≤450537275004200*2900*2900

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

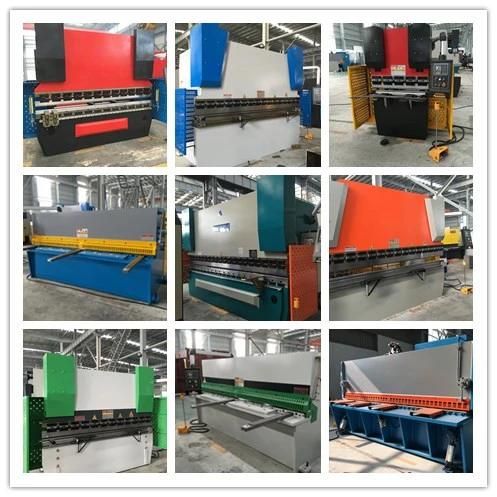

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
 TYPE300T/4000Nominal Force(kN)3000Worktable Length(mm)4000Poles Distance(mm)3300Throat Depth(mm)400Slider Travel(mm)250Max Open(mm)580Power(kw)18.5Weight(kg)24000Dimension(LxWxH(mm))4000x2100x3500
Main components of ZYB model:(Standard)
1.       Control System: DELEM DA52S
2.       Servo motor and drive: Estun China
3.       Hydraulic System: HOERBGER/BOSCH Germany
4.       Ball bearing lead screw: Taiwan HIWIN
5.       Straight-line guide: Taiwan HIWIN
6.       Connector: Germany EMB
7.       Seal ring: Germany FIETZ or Japanese VALQUA
8.       Raster Ruler: Heidemhain Germany
9.       Main electrical elements: TE/OMROM/SIEMENS
10.   Standard axes: Y1,Y2,X and V(V for crowing table)

Optional:
1.       DELEM DA56: +USD 6000.00
2.       DELEM DA66T: +USD 12000.00
3.       R/Z1/Z2-axis: +USD 2400.00/axis
4.       Laser beam: +USD 6000.00
5.       Light beam: +USD 1000.00
