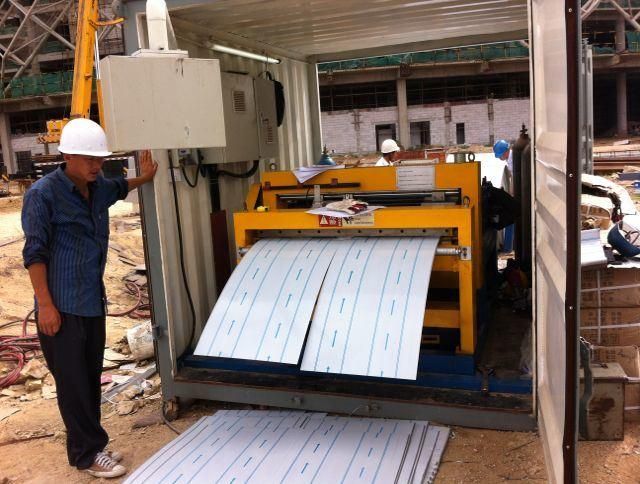

Automatic Steel Straightening and Cutting Machine (SC 2.0-1300)
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Matel Panel Straighting Machine
- Usage：Sheet
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Small Deformation
- Warranty：12 Months
Base Info
- Model NO.：(SC 2.0-1300)
- Customized：Customized
- Condition：New
- Model No.：Fcs2.0-1300
- Brand Name：Xhh
- Hydraulic Motor Power：7.5kw
- Working Speed：10-16m,Min
- Dimension：2500mm*2300mm*1500mm
- Weight：3500kgs
- Model Number：Zp2.0-1300
- Max.Width：1300mm,1500mm
- Max.Thickness：2.0mm, 2.5mm, 3.0mm
- Export Markets：Global
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：84552290
- Production Capacity：10-15sets,Month
Description
Basic Info.
Model NO. (SC 2.0-1300) Customized Customized Condition New Model No. Fcs2.0-1300 Brand Name Xhh Hydraulic Motor Power 7.5kw Working Speed 10-16m/Min Dimension 2500mm*2300mm*1500mm Weight 3500kgs Model Number Zp2.0-1300 Max.Width 1300mm,1500mm Max.Thickness 2.0mm, 2.5mm, 3.0mm Export Markets Global Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/MonthProduct Description
FCS2.0-1300 Straightening Machine's detail informations' are as follows:
(1)Working Speed: 10-16m/min
(2)Max. Thickness: 2.0mm
(3)Max. Width: 1300mm
Main Accessories:
(1)Flattening Device;
(2)Slitting Device;
(3)Cutting Device;
(4)Hydraulic Motor Device;
1. | Dimension | 2300*2200*1500mm |
| 2. | Weight | 3500KGS |
| 3. | Hydraulic Motor Power | 7.5KW |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Working Speed | 10-16m/min |
| 6. | Max. Thickness | 2.0mm, 2.5mm, 2.8mm |
| 7. | Max. Width | 1300mm, 1500mm |
