Uncoiler & Straightener for Punching Press Machine (MAC3-400)

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.
  • Type：Straightener Feeder
  • Usage：Coiled Material Straightening
  • Voltage：380V
  • Automatic Grade：Automatic
  • Principle：Large Deformation
  • Certification：TUV, ISO9001, CE

Base Info

  • Model NO.：MAC3-400
  • Warranty：12 Months
  • Customized：Customized
  • Condition：New
  • Stock Width(mm)：50~400
  • Stock Thickness(mm)：0.3~4.5
  • Line Speed(M/Min)：16~24
  • Coil Weight(Kg)：5000
  • Keyword：Straightener Machine
  • Max. Coil O.D：1400
  • Max. Coil I.D：508
  • Transport Package：Wooden Box or Vacuum Packing
  • Specification：2200*1900*2000
  • Trademark：RUIHUI
  • Origin：China, Dongguan
  • Production Capacity：20 Sets Per Month

Description

Overview

Product Description

Product Parameters

70-80070-1000Stock Thickness(mm)0.3-4.50.3-4.50.3-4.50.3-4.5Max.Coil Weight(kg)50005000500070007000Max.Coil O.D.(mm)Φ1400Φ1400Φ1400Φ1400Coil I.D.(mm)Φ508Φ508Φ508Φ508Feed Length(mm)~500*~500*~500*~500*Max.Line Speed(m/min)16-2416-2416-2416-24Work Roll Number(piece)up 4 / down 3up 4 / down 3up 4 / down 3up 4 / down 3Feed Roll number(set)1111Main MotorAC4.4AC4.4AC5.5AC7.5Mandrel ExpansionhydraulichydraulichydraulichydraulicReel Motor(kw)2.22.22.23.73.7Power(v)3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.49
Stock Thickness
(mm)0.3~0.840060080010001.07501.27006001.65904804301.85004203802.04303703302.33603202902.83702902502303.23002502202004.5160160150110

*The avove flgures are the material having yield strength of 245N/mm2Detailed Photos

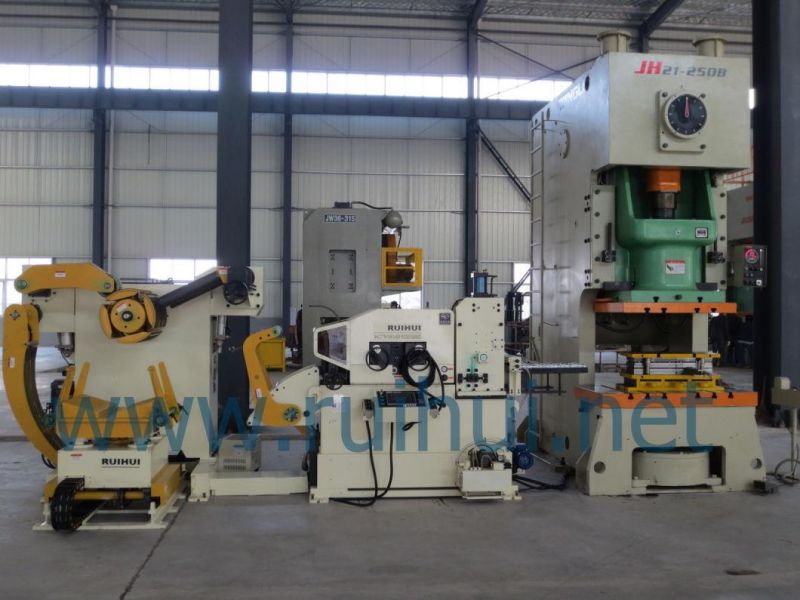

Factory Direct Sale Three-in-One Feeder, Punch Servo Leveling Feeder Ruihui

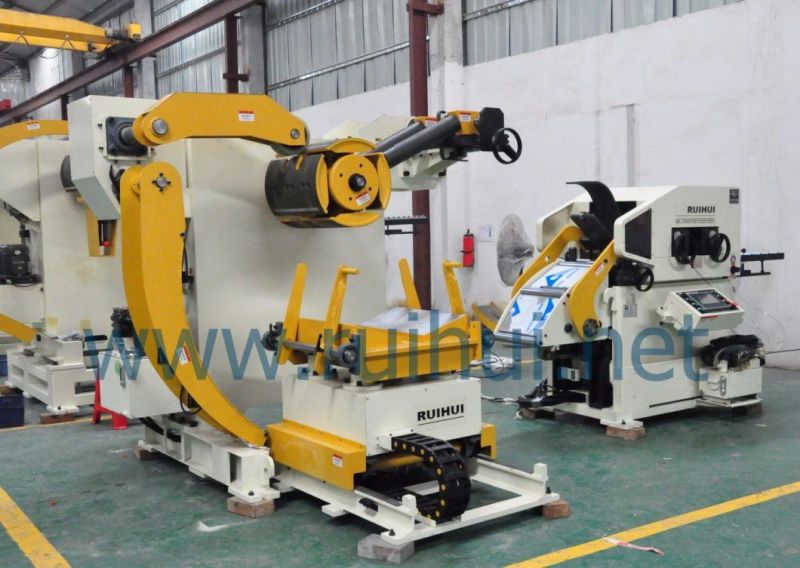

Factory Direct Sale Three-in-One Feeder, Punch Servo Leveling Feeder Ruihui

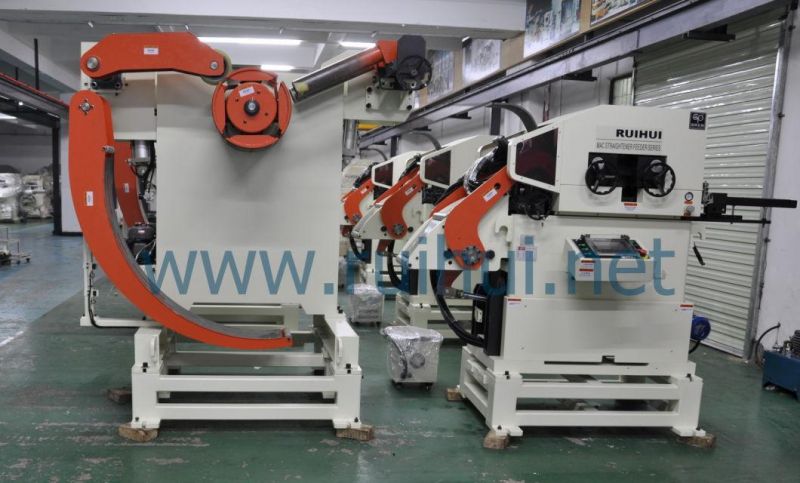

Factory Direct Sale Three-in-One Feeder, Punch Servo Leveling Feeder Ruihui

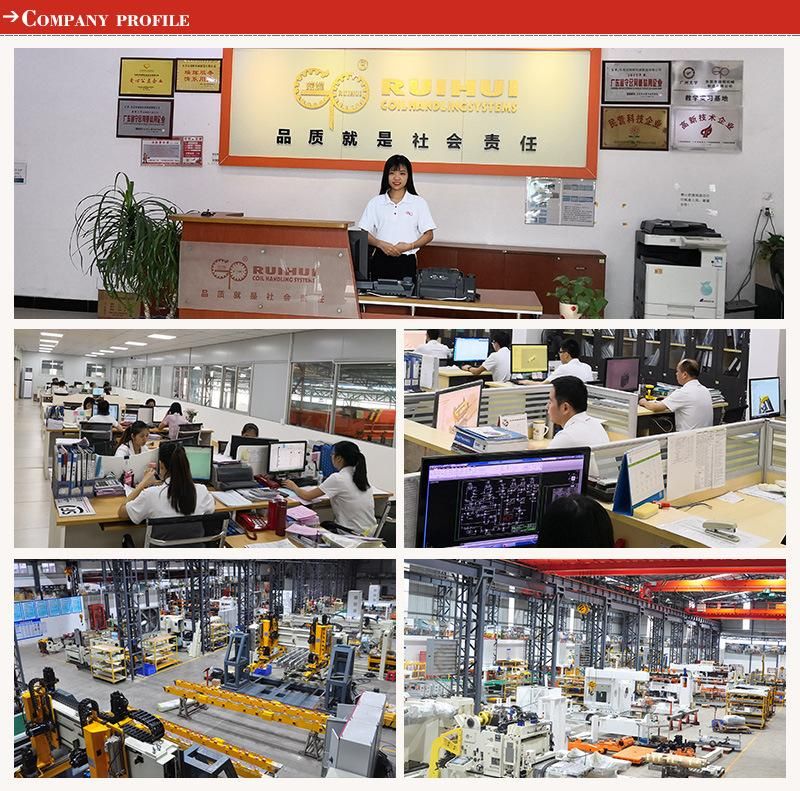

Company Profile

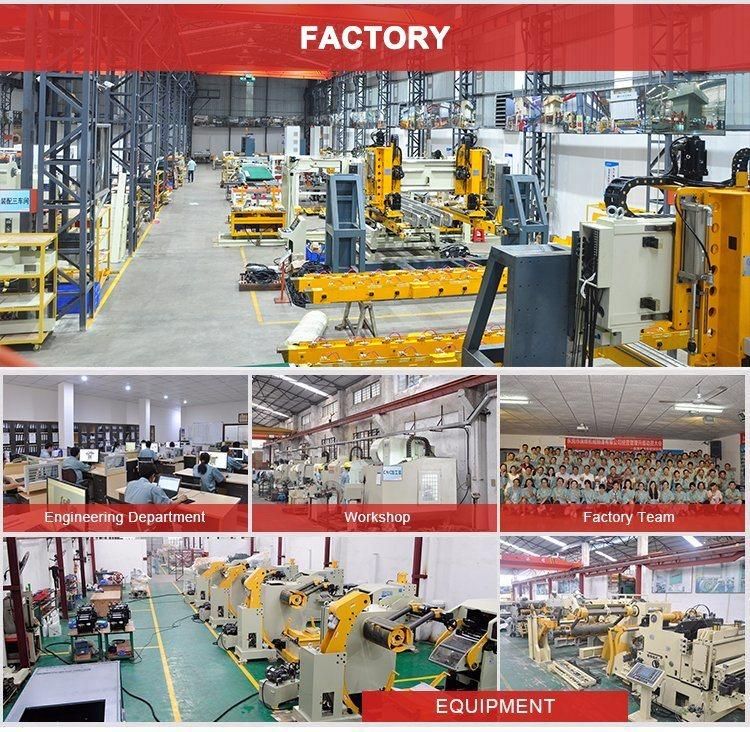

Factory Direct Sale Three-in-One Feeder, Punch Servo Leveling Feeder Ruihui
Factory Direct Sale Three-in-One Feeder, Punch Servo Leveling Feeder Ruihui
Our Advantages

Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval
