Metallic Processing Machinery

Home > Product > Metal Straightening Machinery

Fully Automatic 3 in 1 Uncoiler Straightener Feeder (MAC3-600)

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.
  • Type：Straightener Feeder
  • Usage：Coiled Material Straightening
  • Voltage：380V
  • Automatic Grade：Automatic
  • Principle：Large Deformation
  • Certification：TUV, ISO9001, CE

Base Info

  • Model NO.：MAC3-600
  • Warranty：12 Months
  • Customized：Customized
  • Condition：New
  • Stock Width(mm)：50~600
  • Stock Thickness(mm)：0.3~4.5
  • Line Speed(M/Min)：16~24
  • Coil Weight(Kg)：5000
  • Transport Package：Wooden Box or Vacuum Packing
  • Specification：3200*2100*2300mm
  • Trademark：RUIHUI
  • Origin：China, Dongguan
  • Production Capacity：30 Sets Per Month

Description

Overview

Product Parameters

70-80070-1000Stock Thickness(mm)0.3-4.50.3-4.50.3-4.50.3-4.5Max.Coil Weight(kg)50005000500070007000Max.Coil O.D.(mm)Φ1400Φ1400Φ1400Φ1400Coil I.D.(mm)Φ508Φ508Φ508Φ508Feed Length(mm)~500*~500*~500*~500*Max.Line Speed(m/min)16-2416-2416-2416-24Work Roll Number(piece)up 4 / down 3up 4 / down 3up 4 / down 3up 4 / down 3Feed Roll number(set)1111Main MotorAC4.4AC4.4AC5.5AC7.5Mandrel ExpansionhydraulichydraulichydraulichydraulicReel Motor(kw)2.22.22.23.73.7Power(v)3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.49
Stock Thickness
(mm)0.3~0.840060080010001.07501.27006001.65904804301.85004203802.04303703302.33603202902.83702902502303.23002502202004.5160160150110

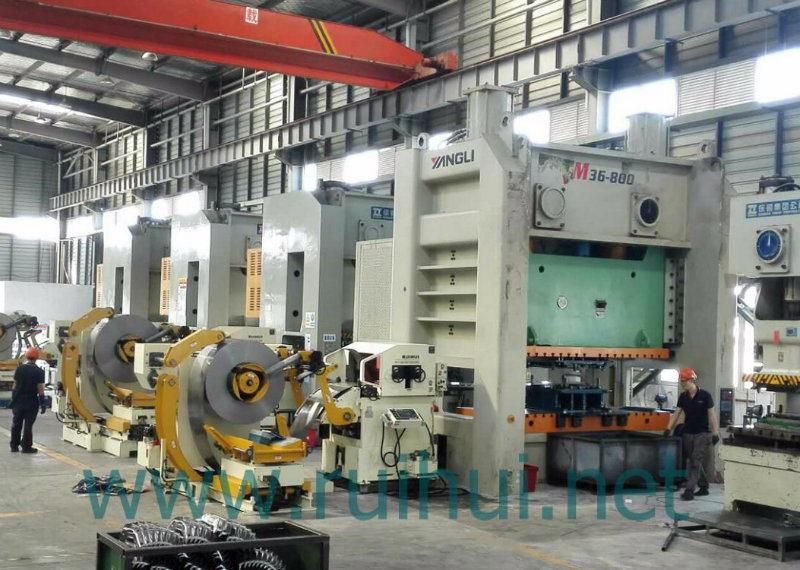

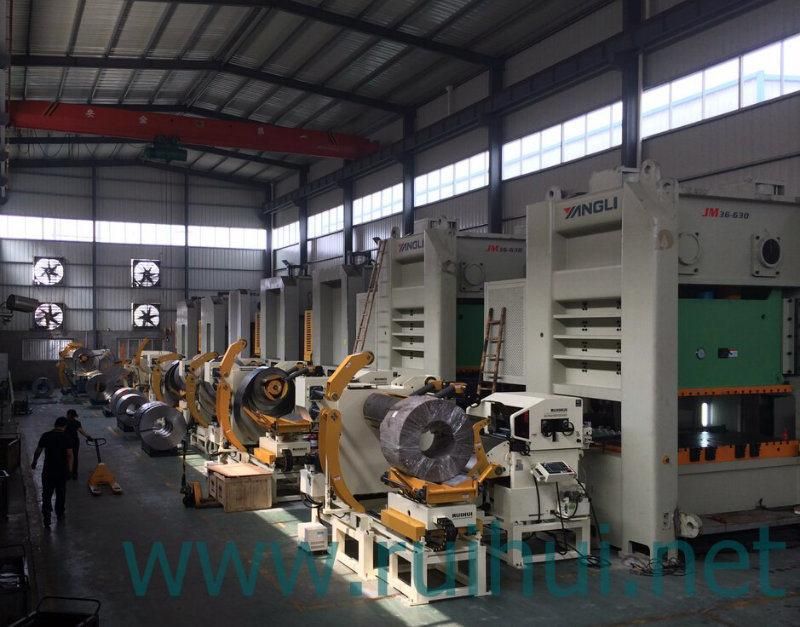

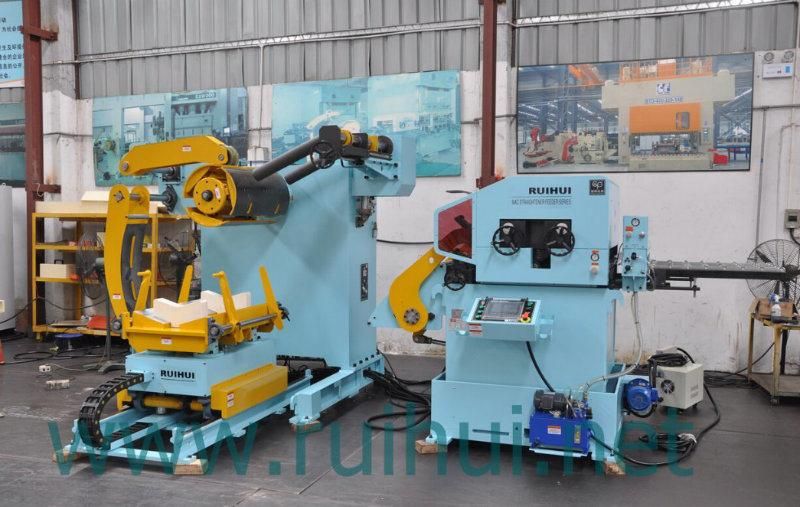

Detailed Photos

Stamping Press Automation Coil Sheet Automatic Feeder with Straightener and Uncoiler and Shearing Machine Use in Press Line

Stamping Press Automation Coil Sheet Automatic Feeder with Straightener and Uncoiler and Shearing Machine Use in Press Line
Stamping Press Automation Coil Sheet Automatic Feeder with Straightener and Uncoiler and Shearing Machine Use in Press Line
Stamping Press Automation Coil Sheet Automatic Feeder with Straightener and Uncoiler and Shearing Machine Use in Press Line

Company Profile

Our Advantages

Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval
