• Model NO.：Y81T-1250 baling press
• Cooling System：Water or Air Cooler
• Warranty：1 Year
• Transport Package：Host Nude Packing, Parts in Wooden Cases
• Specification：CE,ISO9001: 2000
• Trademark：Tianfu
• Origin：Jiangsu China
• HS Code：8462919000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. Y81T-1250 baling press Cooling System Water or Air Cooler Warranty 1 Year Transport Package Host Nude Packing, Parts in Wooden Cases Specification CE/ISO9001: 2000 Trademark Tianfu Origin Jiangsu China HS Code 8462919000 Production Capacity 1000 PCS/Year

Product Description

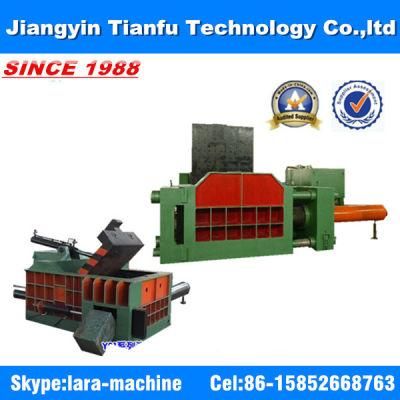

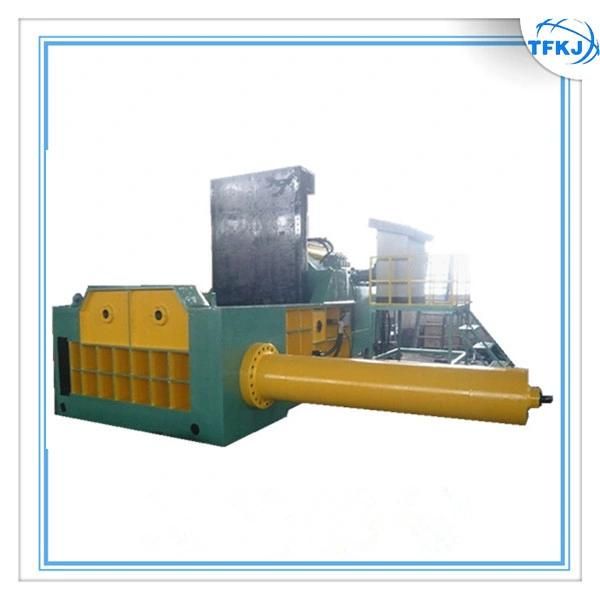

Y81t-1250 PLC Hydraulic Metal scrap steel baling press


1.Application:
Y81 series hydraulic steel baling press is applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes:Cuboid;Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.

2.Features:
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging:Turn-out, push-out, forward-out.
3)No footing bolts needed in installation;Diesel engine can be equipped or power
4)Baling force 10 grades from 63 to 400 tons;Productivity from 4 to 40 tons per shift(8 hours)

3.Factory
We are specialized in scrap metal recycling industry with over 20 years experience.We do as "quality first, service best".We export to over 50 countries like Europe.USA.Brazil.Mexico.Russian.Iran.Etc.So we are sincere to invite you come to my factory.When you see you will believe, you can compare the quality.


4.Advantages:
1).Our baler machine under 250 ton is integral structure.Hydraulic station connects with the host machine together.So it doesn't need to install.One machine puts in one 20" container.And it saves ship cost.
2).Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
3).We use good quality seals, so no oil leak.
4).Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.


5.Service:
1) Lifelong maintainance and considerate technical support
2) Technicians can be sent to abroad.
3) Any problem before or after delivery, you could find and talk with us anytime
Quality first, service best!


6.Main models for reference:

Model	Nominal Force (KN)	Material box size(L*W*H) (mm)	Bale Size (mm)	Bale Density (kg/m 3 )	Capacity (kg/h)	Cycle Time (s)	Power (kw)	Bale Discharging Operation
Y81-630	630	1000*600*500	(180-250)*200*200	> 1800	500-1000	90	7.5	Over packet,manual
Y81-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	11	Over packet,manual
Y81/T-1000	1000	1000*600*500	(200-300)*230*230	> 1800	1000-1200	120	15	Push,manual
Y81-1250	1250	1200*700*600	(150-360)*300*300	> 1800	1000-1500	120	15	Push,manual
Y81/T-1250	1250	1200*700*600	(250-400)*300*300	> 1800	1500-2000	80	18.5	Push,PLC
Y81Q-1350	1350	1400*600*600	(240-450)*600*240	> 1800	1800-2500	80	22	Before packet,manual
Y81-1600	1600	1600*1000*700	(400-600)*400*400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600A	1600	1600*1000*800	(400-600)*400*400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600B	1600	1600*1200*800	(400-600)*400*400	> 1800	2000-3000	160	30	Push,manual
Y81-2000	2000	1600*1200*800	(400-600)*400*400	> 1800	2500-4000	160	30	Push,manual
Y81/T-2000A	2000	1600*1200*800	(400-650)*400*400	> 1800	2200-4000	160	30
Y81/T-2000B	2000	1800*1400*900	(400-700)*450*450	> 1800	2500-4500	160	37
Y81-2500	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	37
Y81/T-2500A	2500	2000*1400*900	(400-700)*500*500	> 1800	3500-5000	160	44	Push,PLC
Y81/T-2500B	2500	2000*1750*1000	(450-800)*500*500	> 1800	3500-5000	160	60
Y81-3150	3150	2000*1400*1000	(400-700)*500*500	> 1800	3500-5000	160	60
Y81/T-3150	3150	2000*1600*1200	(450-700)*550*550	> 1800	4000-5000	160	66	Push,PLC
Y81/T-4000A	4000	2000*1600*1200	(450-800)*550*550	> 1800	5000-6000	160	74	Push,PLC
Y81/T-4000B	4000	2600*2000*1200	(500-1000)*600*600	> 1800	5000-7000	180	90	Push,PLC
Y81/T-4000C	4000	5000*2000*1200	(500-1200)*700*700	> 1500	8000-10000	200	135	Push,PLC
Y81/T-6000	6000	3200*2000*1200	(500-1200)*700*700	> 1800	7000-9000	180
