Water Quenched and Tempered Spring Wire Production Line
Hangzhou Suntech Machinery Co., Ltd.- Automatic Grade：Automatic
- Warranty：1 Year
- Certification：GS, RoHS, ISO, CE
- Transport Package：Seaworthy Packing
- Specification：6-16mm
- Trademark：SUNTECHMACH
Base Info
- Model NO.：6-16mm
- Origin：China
- HS Code：846330
- Production Capacity：500 Sets,Year
Description
Basic Info.
Model NO. 6-16mm Origin China HS Code 846330 Production Capacity 500 Sets/YearProduct Description
Oil Tempered Spring Wire Production Line
I. Whole Work Flow:
Pay off → Pinch rolls set No. 1 → HV-Straightener → Pinch rolls set No. 2 → Cleaning unit → Induction Quenching No.1 → Induction Quenching No.2 → Induction Quenching No.3 →Heat holding → Jet-cooling for Quenching → Induction Tempering →Heat holding → Jet-cooling for Tempering → Flaw detector → Pinch rolls set No. 3 → Oiler → Shearing → Wire separating → Wire take-up
II. Main Technical Parameters:
| No. | Item | Specification |
| 1 | Raw material | steel grades SiCr and SiCrV classes FD, TD, VD |
| 2 | Diameter | φ8,0 - φ16,0 mm |
| 3 | Working speed | Φ9.0mm--20m/min; φ14.5mm-7.5m/min |
| 4 | Induction quenching temp. | ≤1000ºC constant and adjustable (920-1000ºC) |
| 5 | Induction tempering temp. | ≤650ºC constant and adjustable (450-650ºC) |
| 6 | Temp. control accuracy | ≤ ±5ºC |
| 7 | Take-up coil dimension | φ1700-φ2200mm |
| 8 | Max. Take-up coil weight | ≥2000kg |
| 9 | Center elevation | 1000mm |
| 10 | Production method | Continuous production |
| 11 | Finished products | 1) Spring wires produced by this production line would keep uniform and straight; 2) Products keep consistence with EN10270-2:2011, tensile strength fluctuation of the same coil of spring wire would be ≤50MPa |

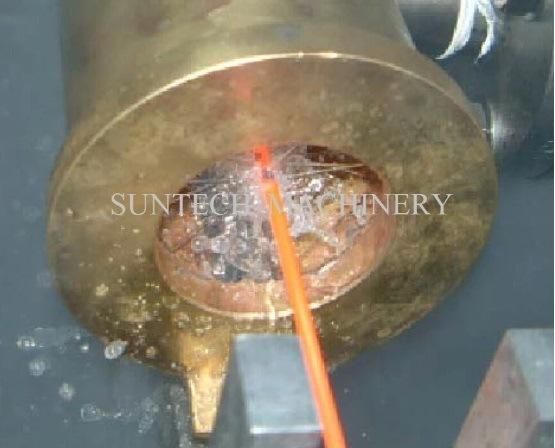

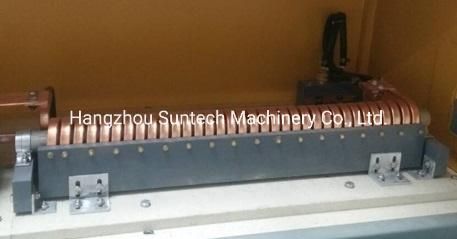

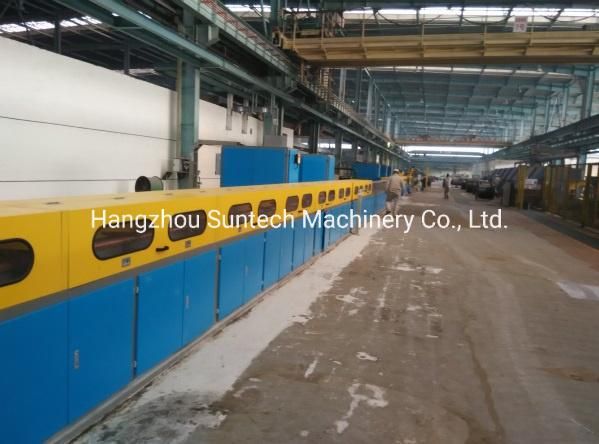

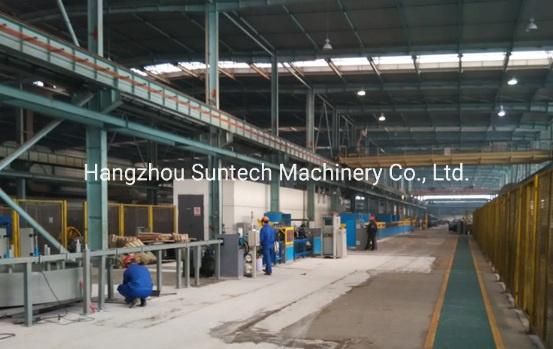

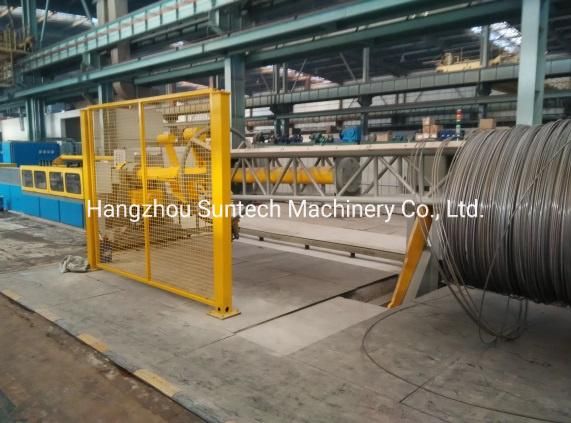

III. Details of machine for reference:

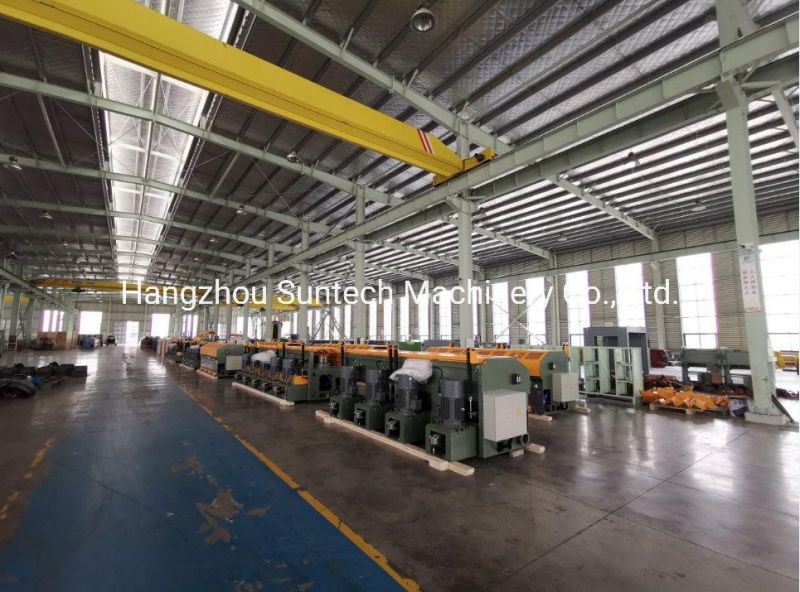

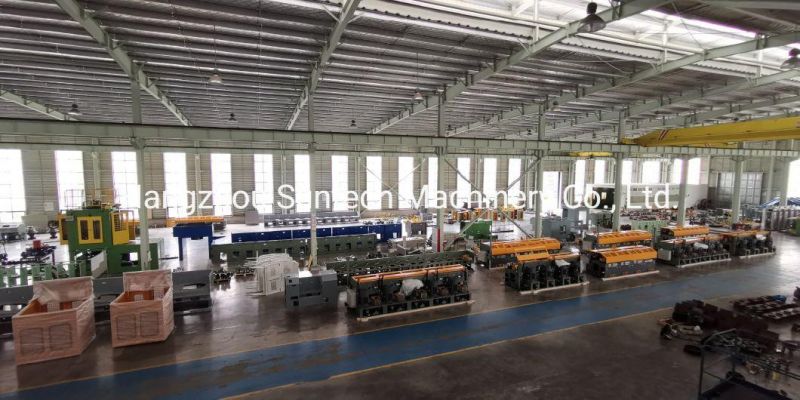

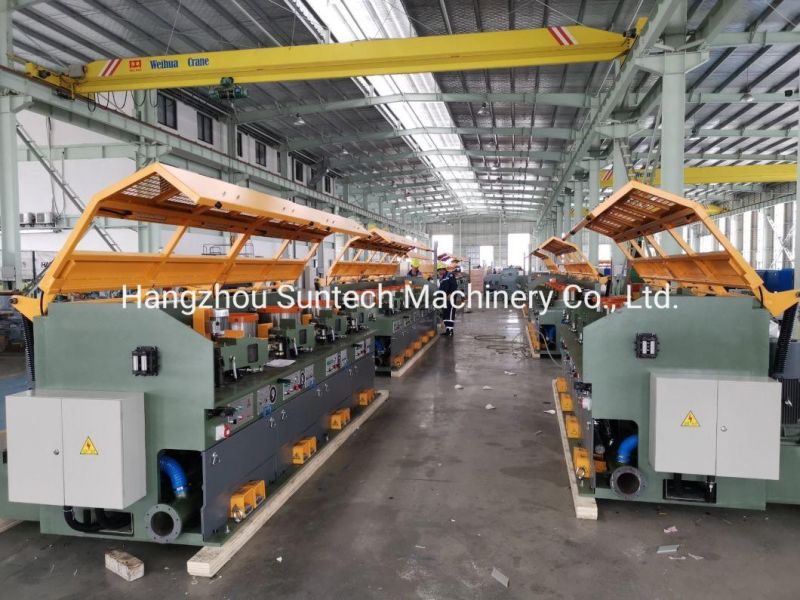

IV. Our Workshop:
V. Clients list for reference:
