China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine

Hangzhou Suntech Machinery Co., Ltd.
  • Type：LZ Straight-Line Metal Drawing Machine
  • Usage：Wire, Rope Wire, Prestressed Steel Wire
  • Metal Material：Steel
  • Outlet Diameter：0.5-4.5mm
  • Max.Inlet Wire Dia.：22mm
  • Block Dia.：560mm

Base Info

  • Max. Number of Block：10
  • Certification：REACH, RoHS, ISO, Ce
  • Condition：New
  • Transport Package：Seaworthy Packing
  • Trademark：SUNTECHMACH
  • Origin：China
  • HS Code：846330
  • Production Capacity：100 Sets,Year

Description

ItemsUnitLZ9-12/1200LZ10/800LZ9/700LZ10/560LZ10/400Reel diametermm900800700560400Draw passagetime9-121091010Incoming diammΦ14-8Φ10-8Φ8-6.5Φ6.5-5.5Φ14-8Outgoing diammΦ5-3Φ4-3Φ3-2.5Φ2-1.8Φ1-0.8Wire darwing linem/min300360480720840Incoming strengthMpa≤1300≤1300≤1300≤1300≤1300Total compressibility%87.24-85.9484-85.9485.94-85.2190.53-89.2987.24-84Average compressibility%20.48-19.5818.42-19.5819.58-19.1321.00-20.0218.61-16.74Single motor powerKw110-9090-5575-5537-2215-7.5

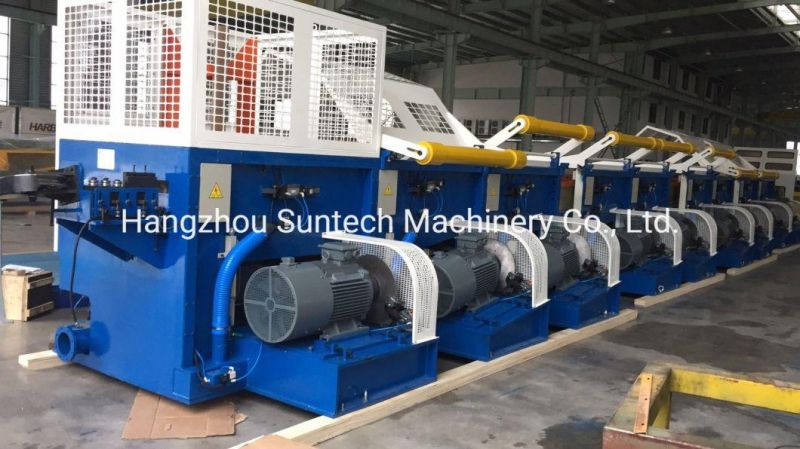

III. Details of machine for reference:
China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine
China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine

China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine

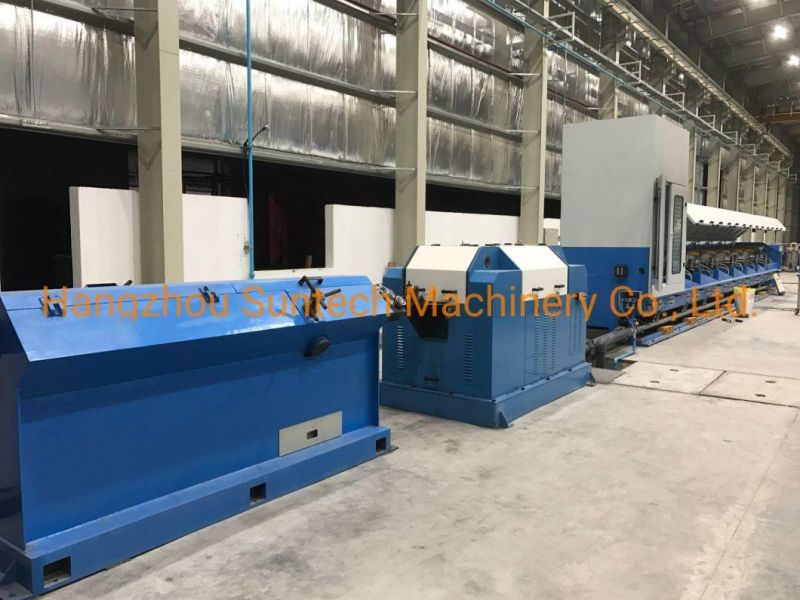

IV. Our Workshop:
China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine

China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine

China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine


V. Clients worksite for reference:
China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine


VI. Clients list for reference:
China Dancer Arm Sensor Arm Dry Steel Straight Line Wire Drawing Machine
