• Model NO.：as the drawing
• Application Range：Piercing Mill
• Transport Package：Woodern Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• HS Code：8455900000
• Production Capacity：6000 Tons,Year

Basic Info.

Model NO. as the drawing Application Range Piercing Mill Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China HS Code 8455900000 Production Capacity 6000 Tons/Year

Product Description

Accu-Roll Pipe Mill Guide Disc for Producing Seamless Steel Tubes and Pipes
Description
Guide disc ,also called guide rolling ring, is the key spare part for accu-roll pipe mill. The function of piercing guide disc is to close the pass. The components of piercing guide disc include contact arc radius and thickness. The contour of piercing guide disc is generally composed of two radii, i.e. the inlet radius and the outlet radius. The thickness of piercing guide disc is determined by the minimum distance between the guide plate and the roll and the minimum gap between the guide plate and the roll.

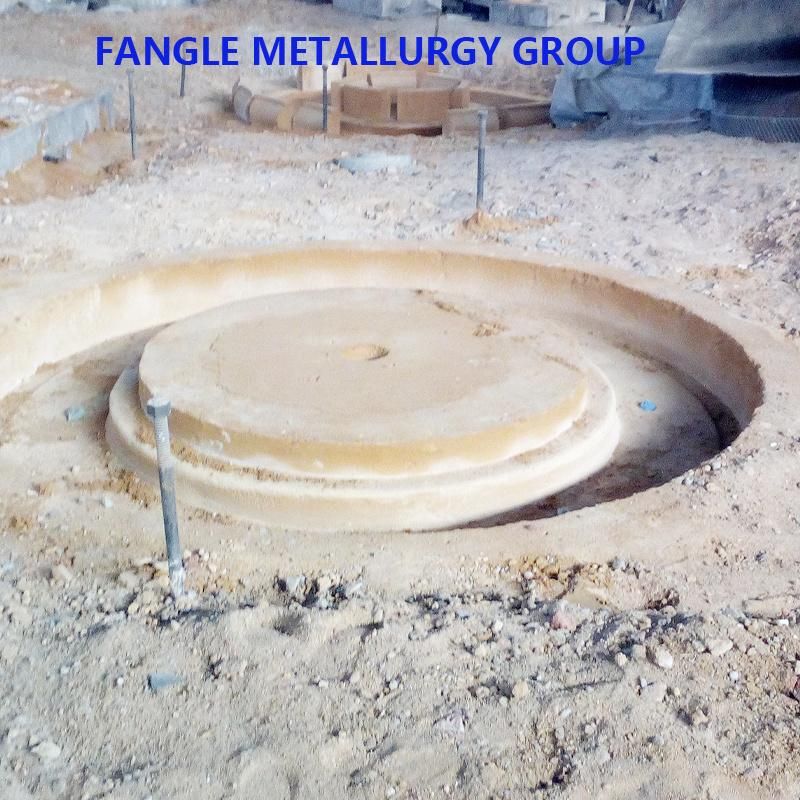

 Production process : ·Sand casting ·Heat treatment ·Finish machining ·Package ·Export
Quality Assurance : MT and Size report will be supplied .

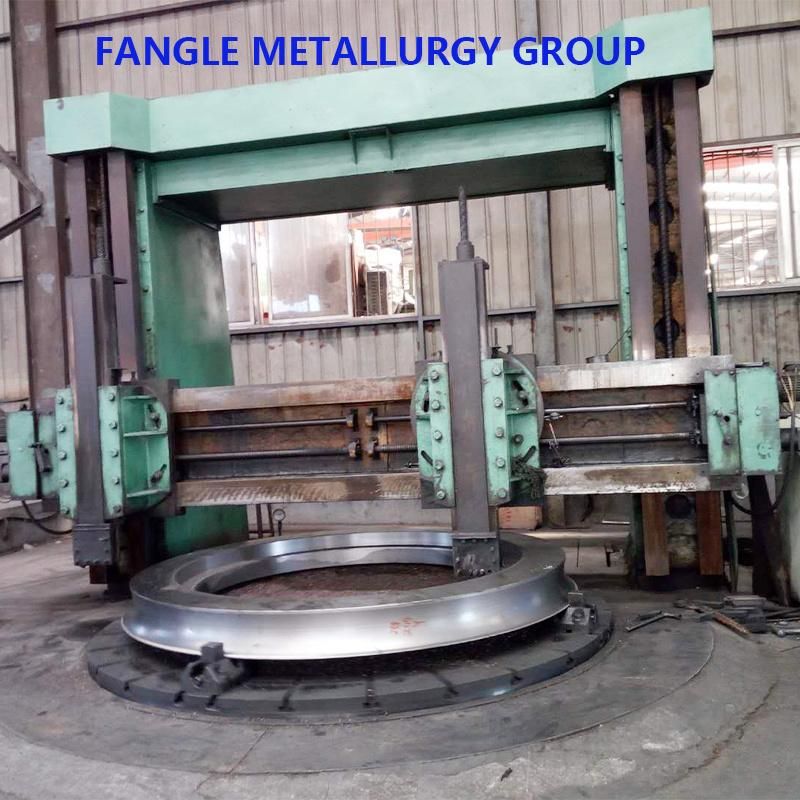

Products procedure and finished products show

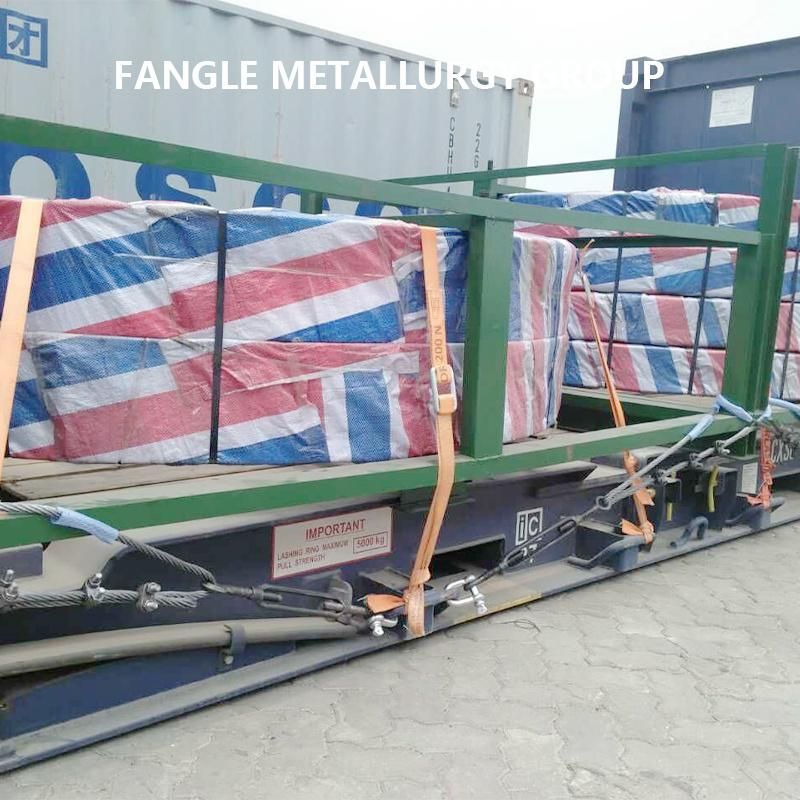

Products inspection and shipment package





Customer Visit
