• Panel：100mm Thickness Rockwool Insulated Panel
• Heating System：Gas
• Burner：Riello Gas Burner
• Circulation Fan：1set
• Ground Rail：1set
• Highest Temp：200degree
• Control Box：1 Set, English Panel, Other Language for Option
• User Manual：Available
• Drawing：Available
• Transport Package：Standard Package for Sea Shipment
• Specification：10cbm for LCL
• Trademark：N,A
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Panel 100mm Thickness Rockwool Insulated Panel Heating System Gas Burner Riello Gas Burner Circulation Fan 1set Ground Rail 1set Highest Temp 200degree Control Box 1 Set, English Panel, Other Language for Option User Manual Available Drawing Available Transport Package Standard Package for Sea Shipment Specification 10cbm for LCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

The powder coating process involves three basic steps:

1. Part preparation or the pre-treatment
2. The powder application
3. Curing

The powder coating process involves the following equipment:
1. Part preparation processes and equipment
2. powder coating spray gun(manually or automatically)
3. powder coating spray booth(manually or automatically)
4. powder coating curing oven(gas, diesel, or electric heating energy for option)
5. powder coating production line(manually or automatically)

Quick details of the oven for heating components
Outer size(D*W*H): 4800*2300*2400mm
Inner Clear size(D*W*H): 4500*2000*2000mm
heating power: gas burner.

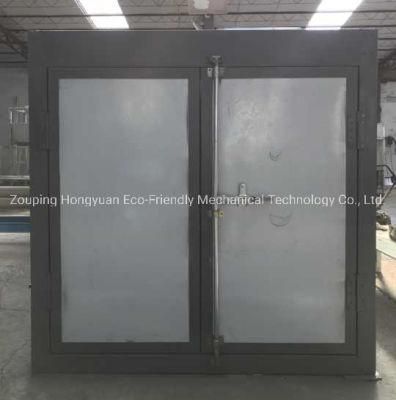

entry door: 1set, one for in and out.

Function of the oven for heating components
The powder coating curing oven is mainly for curing the object coated by powders, which is the most important and vital part during the powder coating process.

Parameters of the oven for heating components

Model	HY-PO4800G1
Outer size(mm) D*W*H	4800*2300*2400
Inner Clear size(mm) D*W*H	4500*2000*2000
Cabin system	100mm/75mm thickness rockwool sandwich panel.
Entry/off door	One set of end-door, for in and out.
Power supply	GAS
Voltage	110V/220V/380V/450V
Frequency	50-60Hz
Warm-up time	15 min. (180-220° C)
Temp Homogeneity	< ± 3°C if 185°C
Temperature stability	< ± 1°C
Temperature max.	230° C
Air circulation	Hot air circulation
Band of burner	Italy Riello Gas burner
Warranty	12 months
Transport	By sea
Optional	Size could be custom-made.
Transfer trolley	excluded
Related products	Powder coating gun, powder coating machine, powder coating spray booth, powder coating plant, powder coating spray line

Related products of our oven for heating components
powder coating spray booth, powder coating spray machine, powder coating plant, powder coating spray production line, powder coating spray gun and so on.

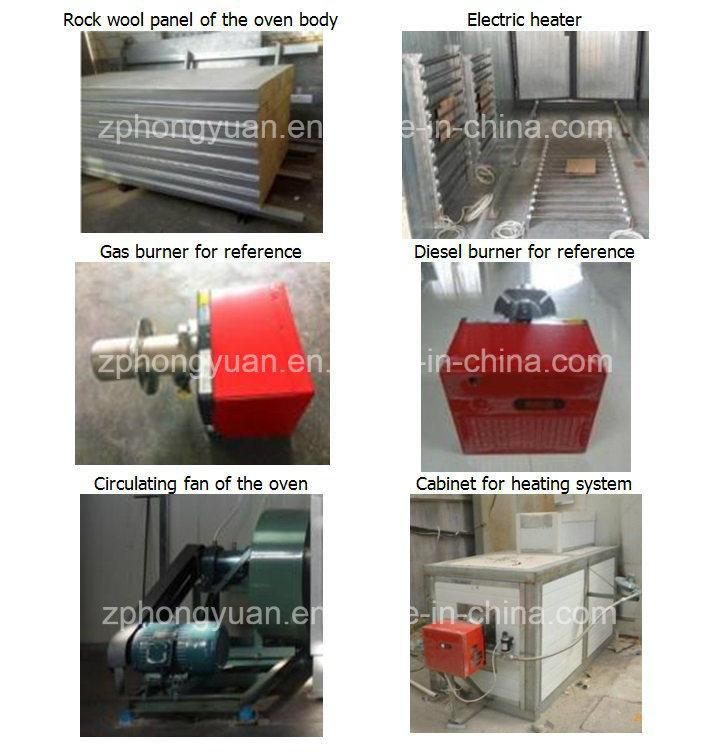

Parts show of oven for heating components


Production area and equipment for oven for heating components

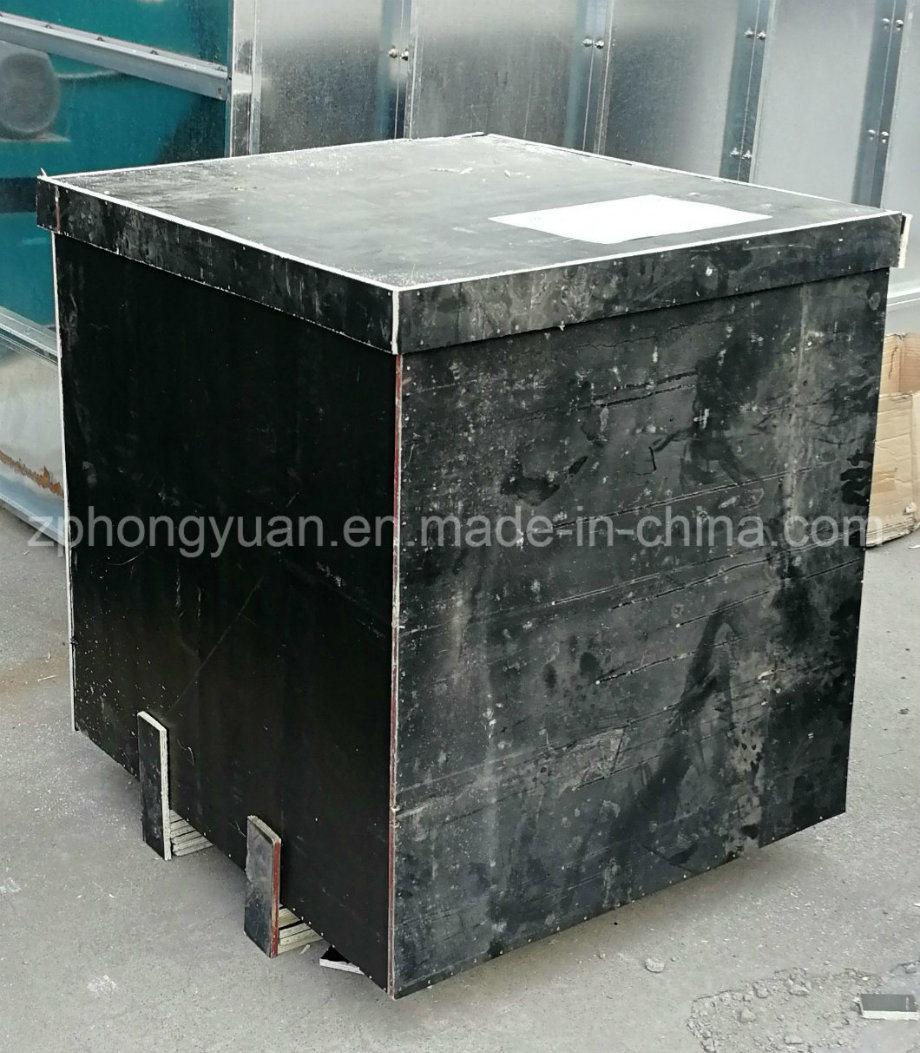

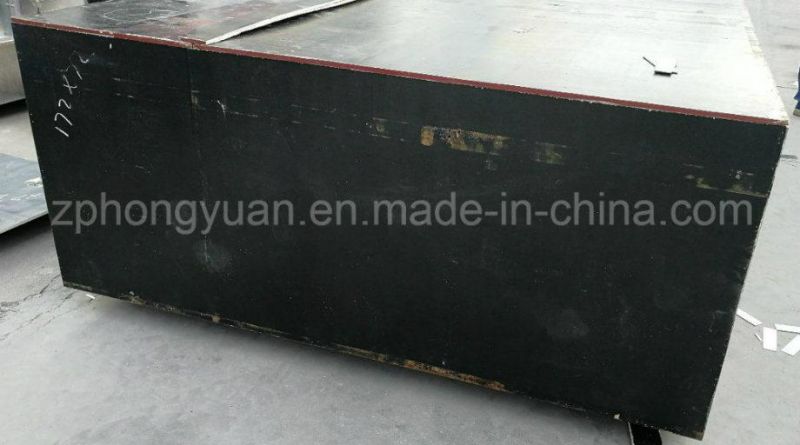

Package Show of oven for heating components



Certificate of our product and company
