• Production Capacity：30 Sets,Year

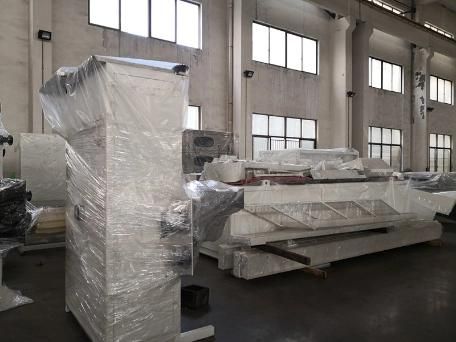

Packaging ImformationSize69 (L) * 4.5 (W) * 6.3 (D)mWeight90TPackaging DetailsInternational Export Standard Wooden Case

C.Product Application

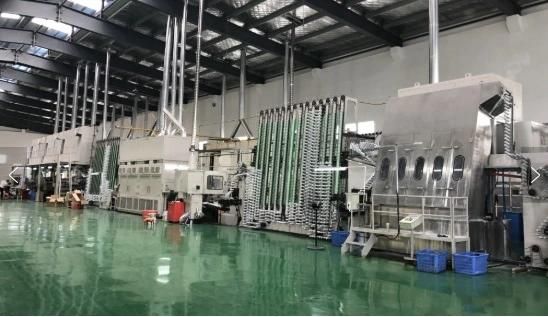

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.

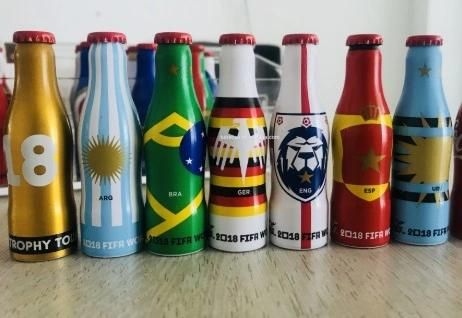

Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.

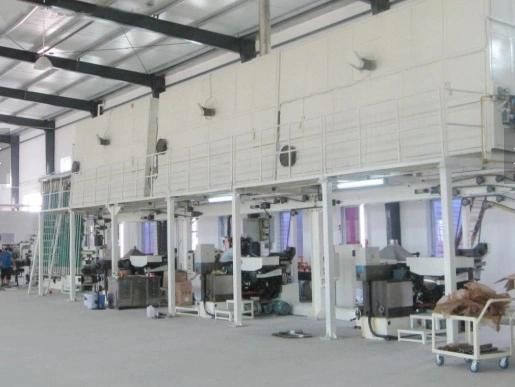

The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include YR01 Extrusion press, XR02 Trimmer cum brushing, XR03 can washer or degreasing Spray washing machine,XR04 Accumulator, XR05 Internal lacquering machine, XR06 Lacquer curing oven, XR08 Base-coating machine, XR09 6-color or 8-color printing machine, XR12 Drying oven, XR14 and XR14E Necking machine, etc.

All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.

creen can display the instant information of speed and production, making it convenient for management.



 SPECIFICATIONS FOR AlUMINUM AEROSOL CAN PRODUCTION LINEProduction speed≤120pieces/minDiameterφ22mm- φ35mm,φ35mm-φ53mm or φ45mm- φ66mmMotor power230KWDimensions69000×4500×6300(mm)Intake pressure0.55 MPAGas consumption500M^3/24h


D.Main Machine

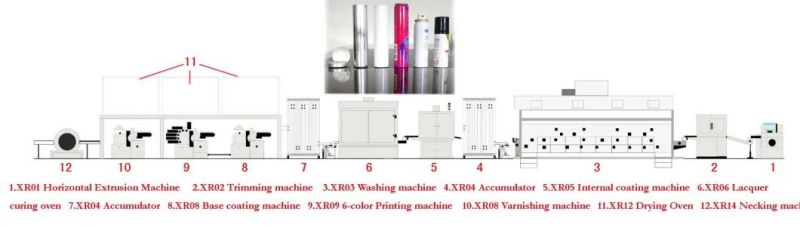

Machine flow chart:Extrusion-Trimming-Washing-internal lacquering-Base Coating-Printing-Vanish-Necking

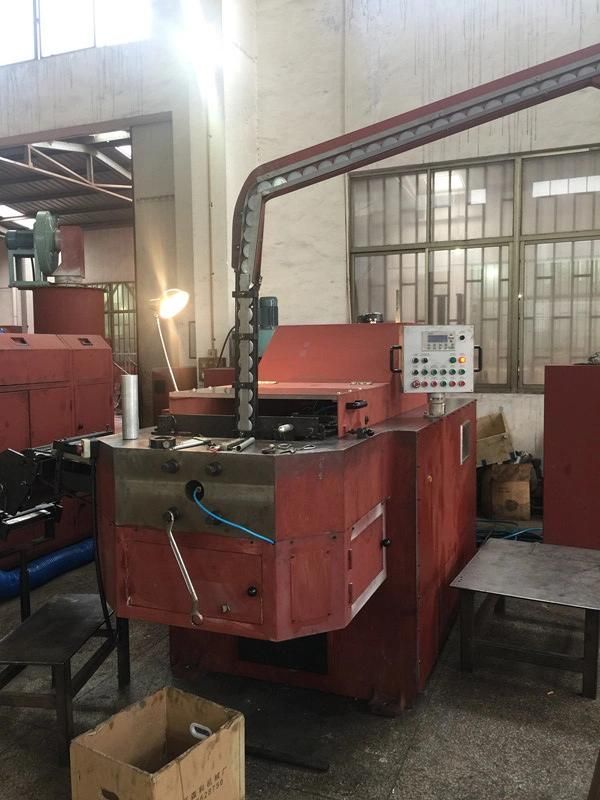

Name: XR01 Extrusion press machine

Main technical parameters
A. Can diameter range: φ35mm-φ59mm
B. Can length range: 80-250mm
C. Production speed: ≤120cans/min
D. Main motor power: 37KW, Total power:37.28KW
E. Intake pressure: ≥0.4Mpa
F. Slide stroke:350mm
G. Net weight: 11000 KG
H. Dimensions: 3195*1558*1585mm(conveyer belt and vibration hopper not included)

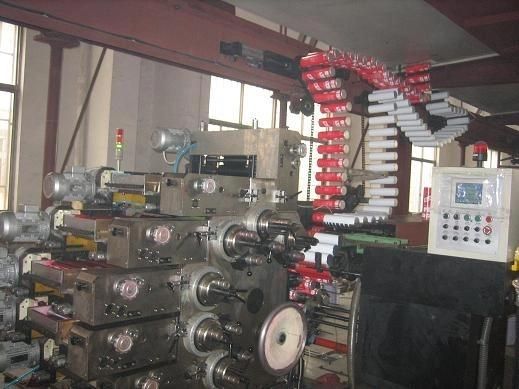

Name: XR09 6-color Printing Machine

Main technical parameters
A. Can diameter range: φ35mm-φ66mm
B. Can length range: ≤230mm
C. Production speed: ≤120cans/min
D. Motor power: 19.17KW
E. Dimensions: 3340×2330×2100mm
F. Net weight: 7600KG
G. Intake pressure: 0.6Mpa


E.Main Configuration List
1) PLC: SIEMENS
2) Touch screen: Pro-face
3) Pneumatic element:FESTO
4) Terminal display:SIEMENS
5) Bearing:NSK or NTN

6) Approach switch:BANNER
7) Photo switch:TURCK
8) Divider:TANTZU
9) Electrical component:SCHNEIDER or OMRON




F.Company introduction
we are experts of aluminium aerosol cans facilities.
Changzhou Xirun Machinery Manufacturing Co., Ltd. is located in beautiful lakefront of TAIHU. It is dainty and convenient located. Yongrun has been mainly specialized in machineries of filling&sealing toothpaste, Research and Development, Manufacturing and related services about production lines for aluminium tubes. The company has main products as following: Composite tube filling&sealing machine, aluminium tube filling&sealing machine, two color filling&sealing machine, three color filling&sealing machine; Automatic boxing machine, automatic opening paper and boxing machine, heat contract packing machine, Impact Extrusion Press, tube trimmer machine, Internal Lacquering machine, base-coating machine, 4-color Printing machine, 5-color Printing machine, 6-color Printing machine, Letexing machine, Capping machine, tube annealing oven, lacquer curing oven, decoration drying oven, and so on.
The company's products have been selling well at home and abroad. The company's got high reputation from cooperating with following famouse enterprises: guangzhou libai enterprise group co.,ltd, caoshanhu branch of chengzhi shareholding co.,ltd, aoqili co.,ltd, TianJin Lantian Group, Shaihai JiaTian Pharmaceutical Packaging Co., Ltd, and so on. Meanwhile, the company's products got good welcome from their customers from Argentina, Chile, Egypt, Thailand, Pakistan, Burma, Vietnam, Syria, India, Russia, Indonesia, Malaysia, and so on, by high quality, competitive prices, good service and delivery on time.
Based on the Quality is the first and Customers are the highest, YONGRUN have been pushing good capability and high quality products to satisfy customers' needs at home and abroad.



Would like to know more about our equipments? Feel free to send us an inquiry!
