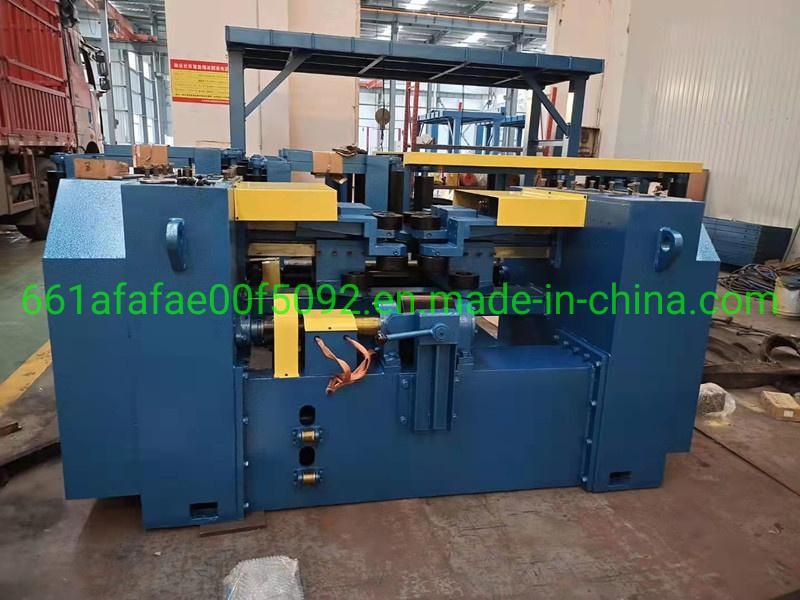

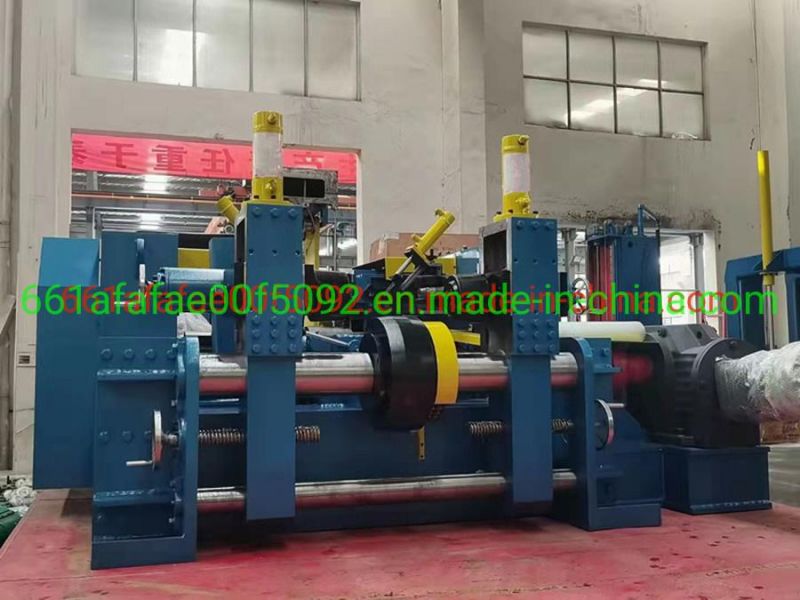

H Beam Production Line Flange Straightening Machine for 40mm Thickness
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Usage：H Beam Flange
- Voltage：380V
- Automatic Grade：Automatic
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：JZJ-40S
- Customized：Customized
- Condition：New
- Name：Heavy Beam Hydraulic Flange Straightening Machine
- Function：Beams Deformation Straightening
- Straightening Mode：Hydraulic
- Straightening Flange Thickness：40 mm
- Flange Width：180-800 mm
- Web Height：No Less Than 350 mm
- Straightening Speed：6.4 M,Min
- Power：35 Kw
- Straightening Material：Carbon Steel Q 345 Q 235
- Beam Model：H Beam I Beam Straightening
- Delivery：30 Days
- Optional：H Beam Welding and Assembly Machine
- Pump Motor：15 Kw

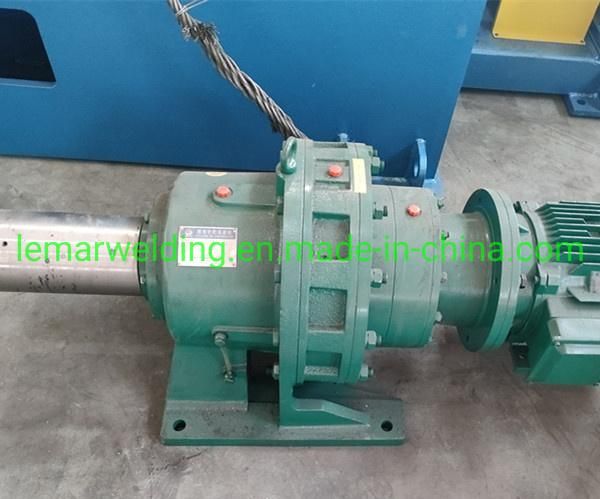

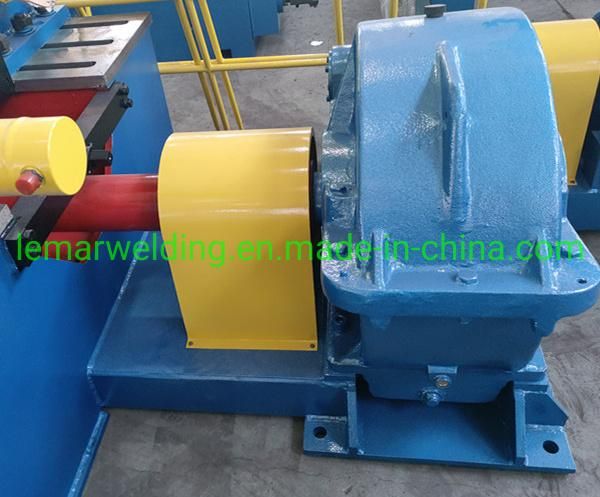

- Drive Motor：22 Kw
- Work for：Correction of H-Beam After Heat Treatment

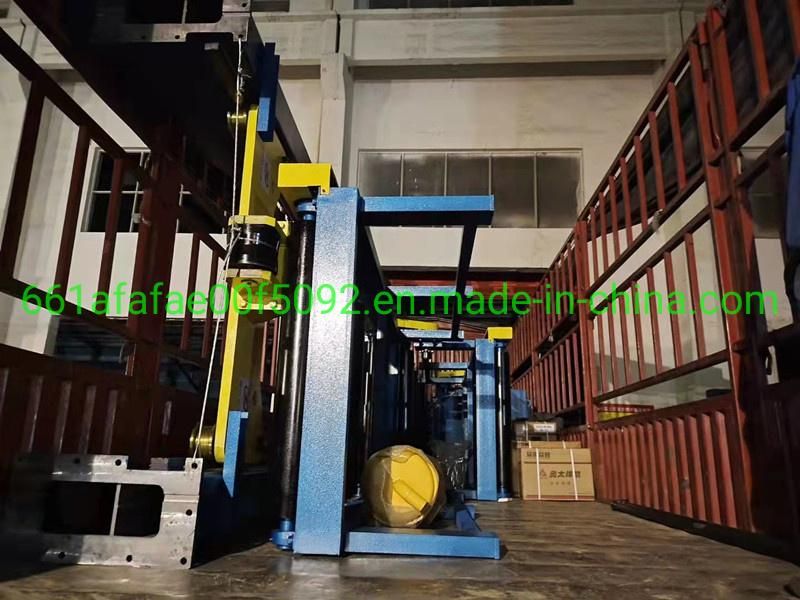

- Transport Package：Container Shipment
- Trademark：Lemar
- Origin：Jiangsu, China
- HS Code：8462291000
Description
1.The steel structure automatic flange hydraulic straightening machine's base is composed of two parts: the base and the upper base.
The base and the upper base are welded by steel plates, and the two parts are connected by bolts to facilitate processing, installation and maintenance.

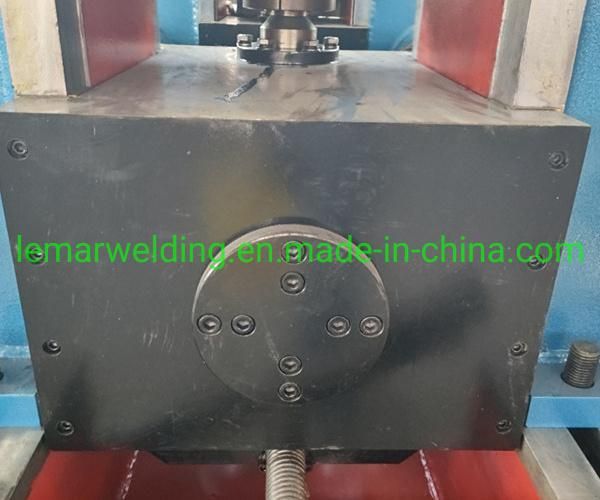

2. The correction h beam straightening seat is connected with the machine base through T-shaped screws.

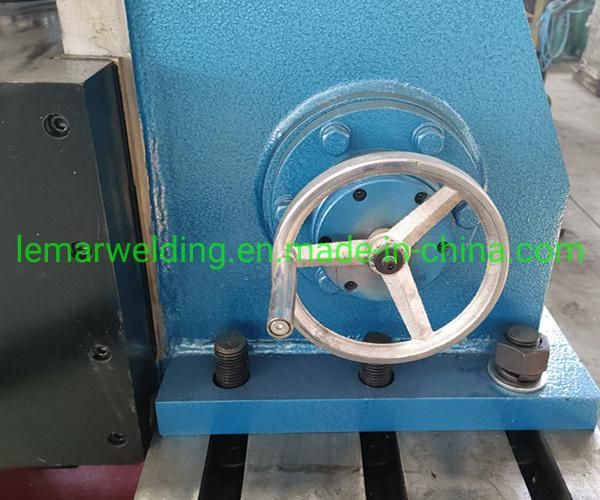

After loosening the screws, the position of the correction seat can be moved by turning the lead screw of the adjustment device to adjust the correction position of the two correction wheels.
3. Due to the difference between the two sides of the deformation caused by welding H-beam, the two groups of hydraulic straightening rollers can be pressed down at the same time or separately, which is convenient for operation.
Hydraulic straightening machine is the most popular machines from Lemar. Together with H beam submerged arc welding machine,Assembly machine,End face milling machine,Sand shot blasting machine to finish the whole automatic PEB H steel structure production line.
Specification:
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of:
Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!
