Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.
  • Certification：ISO9001, ISO 9001:2008, ISO 9001:2000
  • Application：Metal Cutting Machine, Metal Processing Machinery Parts, Finishing& Semi Finishing
  • Logo Printing：Without Logo Printing
  • Customized：Customized
  • Type：Cutting Tool
  • Size：All Sizes

Base Info

  • Material：Tungsten Carbide
  • Coating：Coating
  • Tooth Form：Spiral Tooth
  • Tooth Space：Extra Dense Tooth
  • Structure：Indexable Type
  • Materials：Tungsten Carbide,Cemented Carbide
  • Grain Size：0.8
  • Density：14.4
  • Hardness：91.8
  • T.R.S：3800
  • Applicaiton：Cutting and Milling
  • Type of Application：Side Milling and Face Milling
  • Finish：H6 Finished
  • Helix：35 Degree
  • Materials to Be Milling：Aluminum , Copper,Alloy
  • Transport Package：Plastic Box Per Single Piece
  • Specification：from diameter 0.3 to 20mm
  • Origin：China
  • HS Code：8207709000
  • Production Capacity：30000PCS,Piece

Description

Basic Info.

Material Tungsten Carbide Coating Coating Tooth Form Spiral Tooth Tooth Space Extra Dense Tooth Structure Indexable Type Materials Tungsten Carbide/Cemented Carbide Grain Size 0.8 Density 14.4 Hardness 91.8 T.R.S 3800 Applicaiton Cutting and Milling Type of Application Side Milling and Face Milling Finish H6 Finished Helix 35 Degree Materials to Be Milling Aluminum / Copper/Alloy Transport Package Plastic Box Per Single Piece Specification from diameter 0.3 to 20mm Origin China HS Code 8207709000 Production Capacity 30000PCS/Piece

Product Description

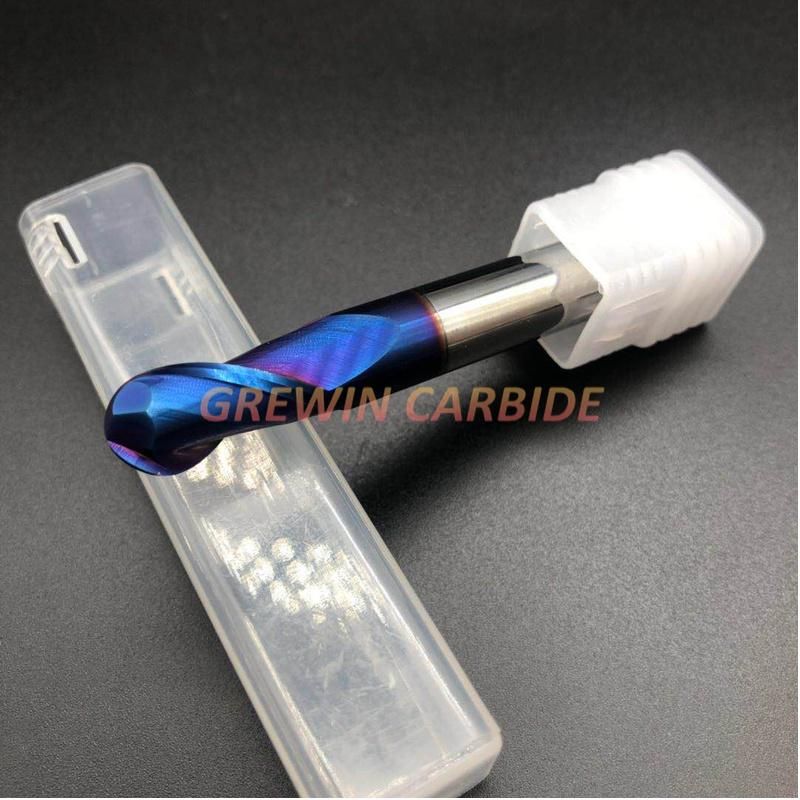

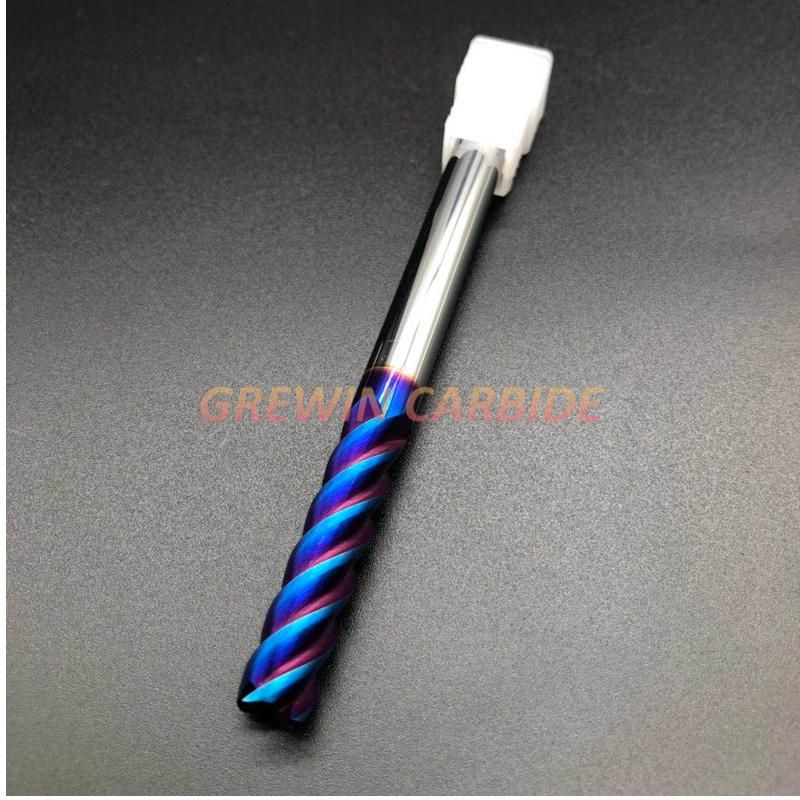

Tungsten Carbide End Mills

Cemented Carbide End Mill Aluminum Milling Cutter with Colorful Dlc Coated

Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality


materials:

GW10    WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

Machining types can used to:
Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality

coating:  Rainbow coating in DLC types

Helix: 35 degree

HRC:55

workpiece to be cut:  Aliminum, copper, alloy

Adwantages: Acurate and positive rake angles are sharpened and sharpened. The 3-blade geometry cutting design has a large capacity for chip removal, making cutting smoother, non-sticky, achieving high-efficiency machining, high workpiece accuracy, and good gloss.

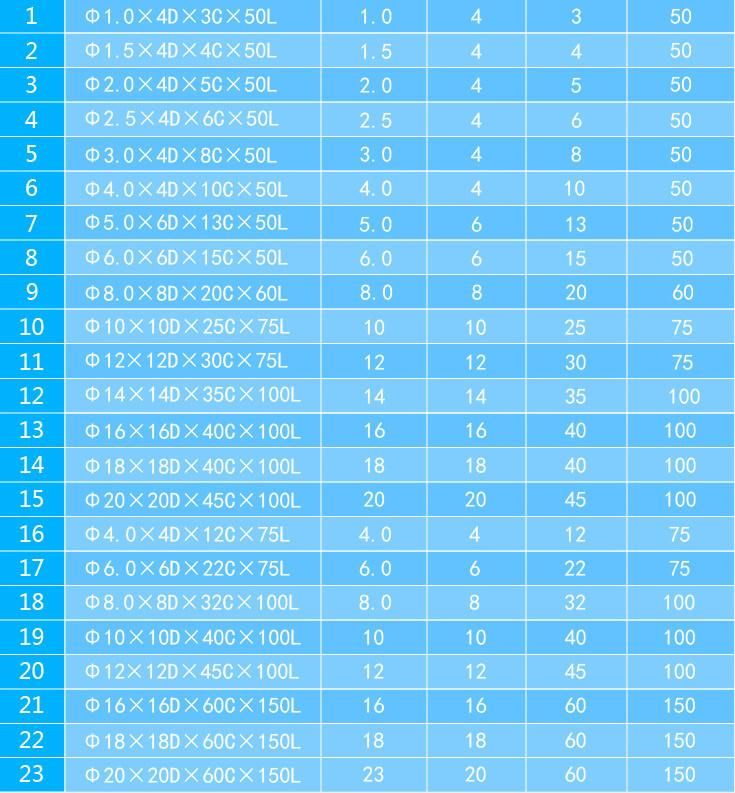

Size List:
Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality

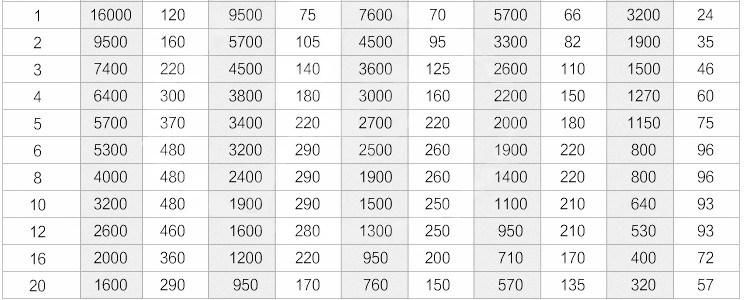

Cutting data:

Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality

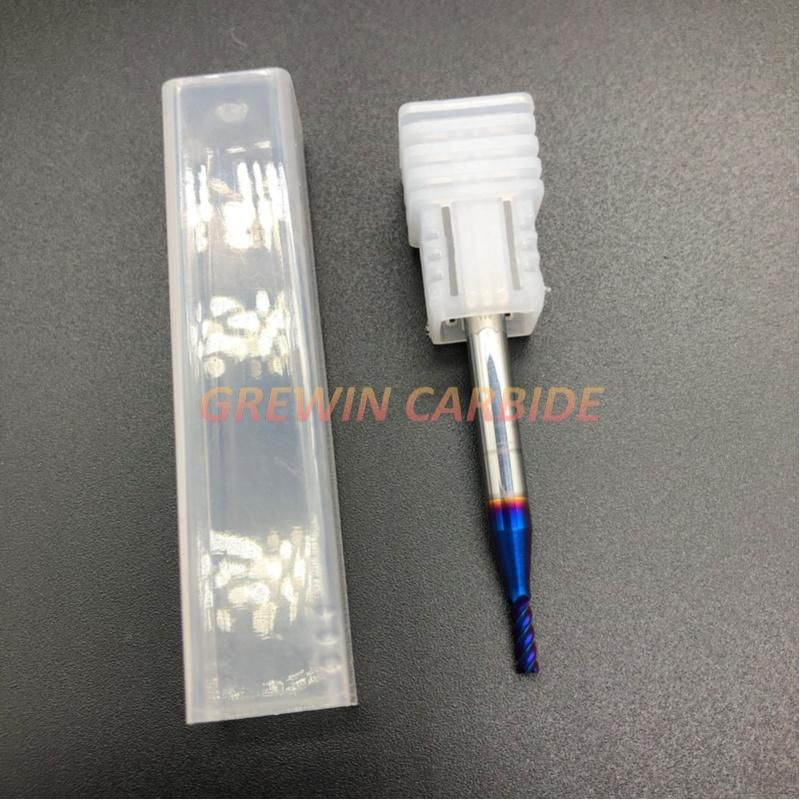

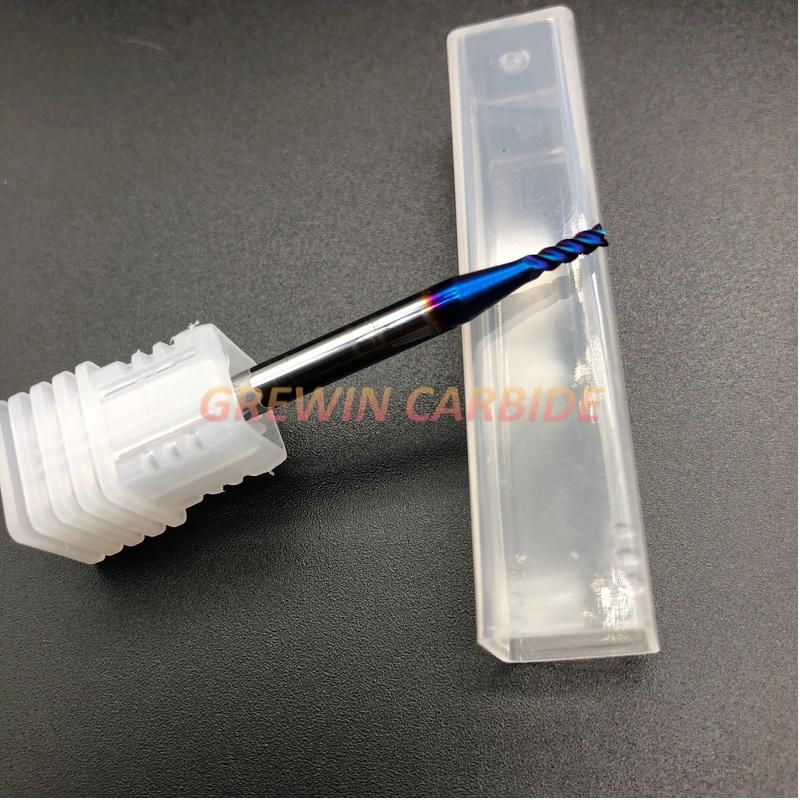

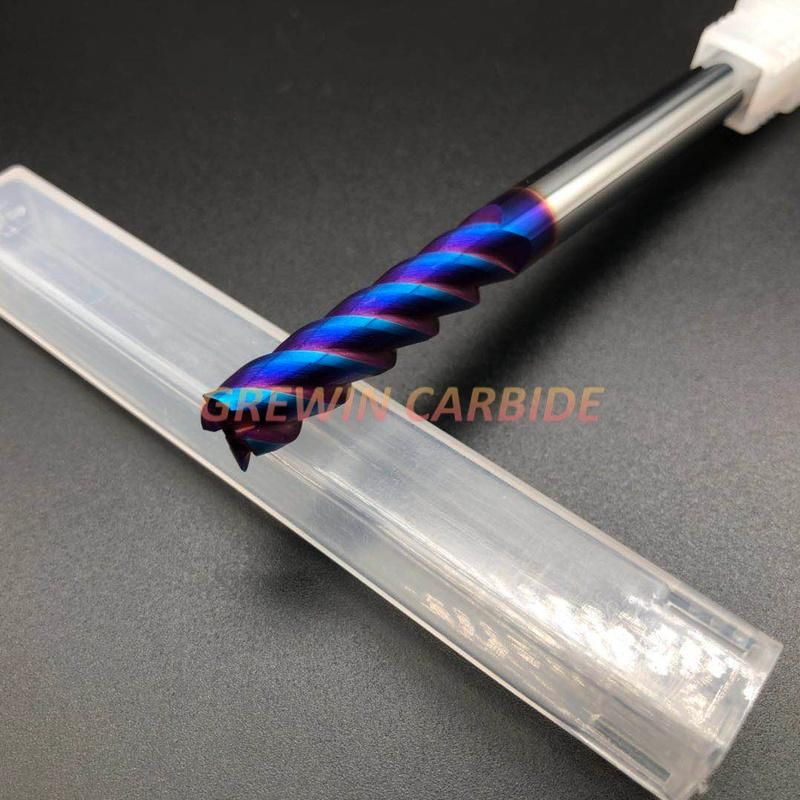

finished carbide end mills

Gw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good QualityGw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good QualityGw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good QualityGw Carbide - Tungsten Carbide End Mills Nano Coated Ball Nose Flat Radius Metal Cutter with High Resistance and Good Quality




Any quantity is always welcomed, please write us or call us freely!
