• Condition：New
• Name：Automatic Powder Coating Reciprocator
• Funtion：Painting Powders Automatically
• Stroke：as Required, 1m, 1.5m, 2.0m, 2.5m
• Speed：Adjustable Speed
• Color：Red,Orange,Yellow for Option
• Voltage：380V,3f&220V,1f@50Hz-60Hz
• Application Range：Mainly Used for The Powder Coating Line, Plant
• Speed Control：Frequency Converter
• Work Temperature：-10-50degrees
• Set System：Digital Button
• Related Product 1：Powder Coating Spray Machine
• Related Product 2：Powder Coating Spray Paint Booth
• Related Product 3：Powder Coating Curing Oven
• Related Product 4：Powder Coating Spray Line
• Related Product 5：Powder Coating Sieve Machine
• Transport Package：Standard Package for Sea Transport
• Specification：1.5cbm for LCL shipment
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100sets Per Month

Basic Info.

Condition New Name Automatic Powder Coating Reciprocator Funtion Painting Powders Automatically Stroke as Required, 1m, 1.5m, 2.0m, 2.5m Speed Adjustable Speed Color Red/Orange/Yellow for Option Voltage 380V/3f&220V/1f@50Hz-60Hz Application Range Mainly Used for The Powder Coating Line, Plant Speed Control Frequency Converter Work Temperature -10-50degrees Set System Digital Button Related Product 1 Powder Coating Spray Machine Related Product 2 Powder Coating Spray Paint Booth Related Product 3 Powder Coating Curing Oven Related Product 4 Powder Coating Spray Line Related Product 5 Powder Coating Sieve Machine Transport Package Standard Package for Sea Transport Specification 1.5cbm for LCL shipment Trademark Hongyuan Origin Shandong, China Production Capacity 100sets Per Month

Product Description

Introduction of the powder coating spray technology
Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as household appliances, aluminum extrusions, drum hardware and automobile and bicycle parts.

Specification of the Booth Reciprocator Powder Coating for powder coating line and auto booth use
Characteristic:
frequency converter, integrated transducer and worm gear. Make sure the process reliable and steadily.
Digital operation panel, could preset several mode data for backup.
You could preset the Max and Min limits according the working conditions so that avoiding the knocking.
You could preset automatic running when opening the electric power.
There are 8 sets of polyurethane roller inside to hold the direction guide pillar, work stable, abrasion rate low.

Parameter:
Rated voltage: AC220V~240V/50Hz
Rated power: 0.75Kw-1.1kW
Speed: 0.01m/S-6m/S(adjustable)
Max stroke: 1m, 1.5m, 2.0m, 2.2m, 2.5m,2.7m, 3.0m, 3.2m, 3.5m, 3.7m, 4.2m and as requested.
Setting system: digital button
Speed reducer: worm gear
Speed control method: frequency converter
Required temperature: -10~50ºC
It can hold 4-6-8-10pieces of powder coating gun.
Different colors can be supplied by customers' request .

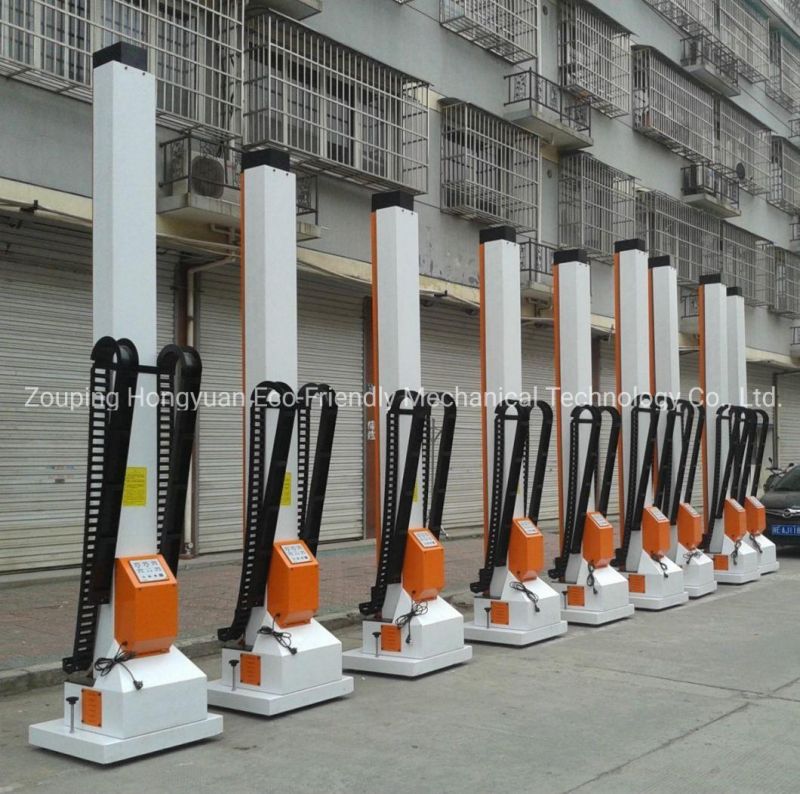

Picture of the Booth Reciprocator Powder Coating for powder coating line and auto booth use

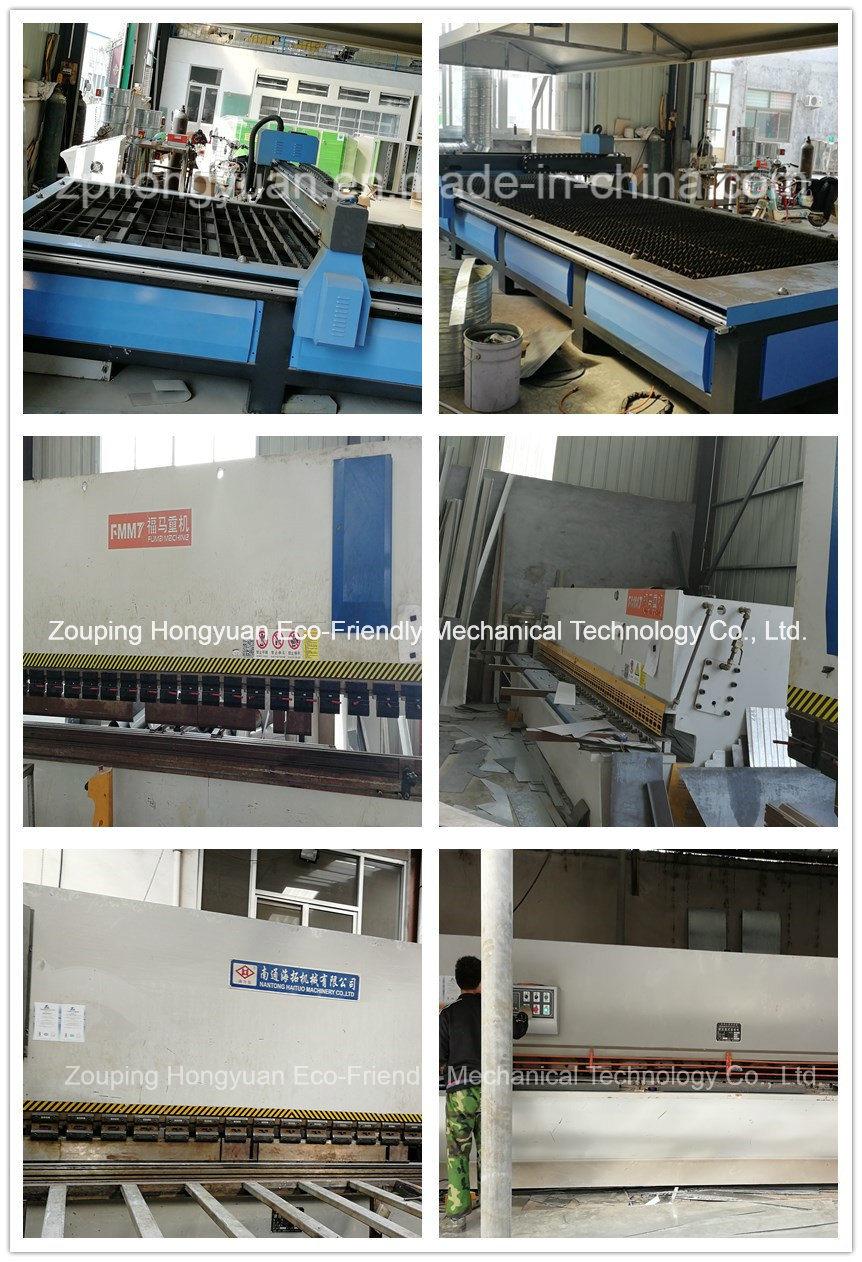

Production area and equipment for Booth Reciprocator Powder Coating for powder coating line and auto booth use

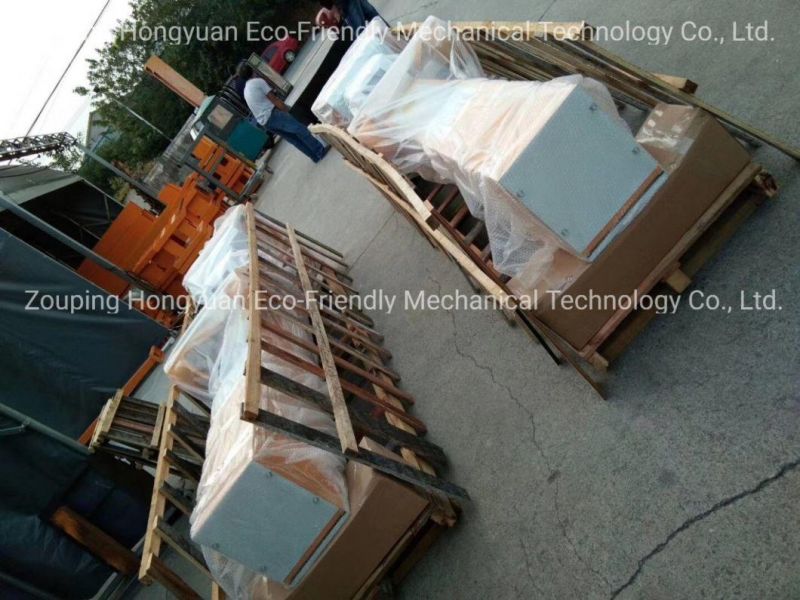

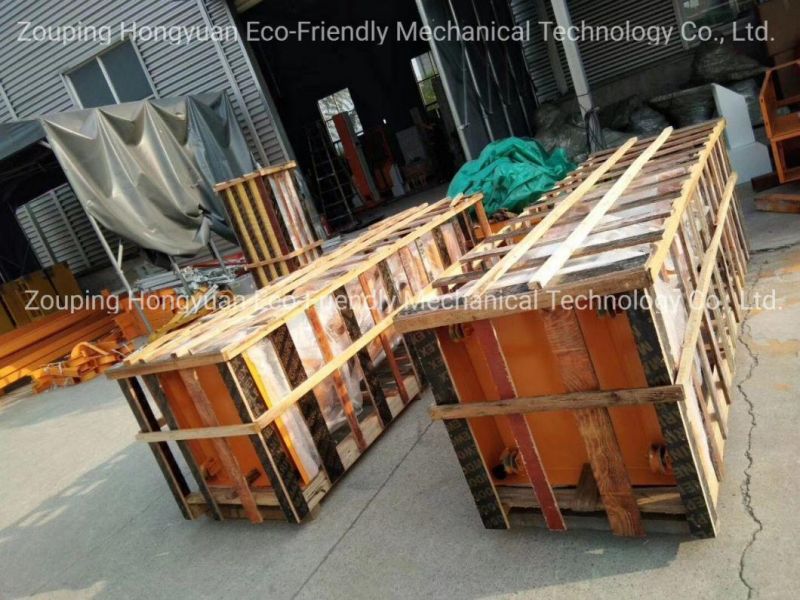

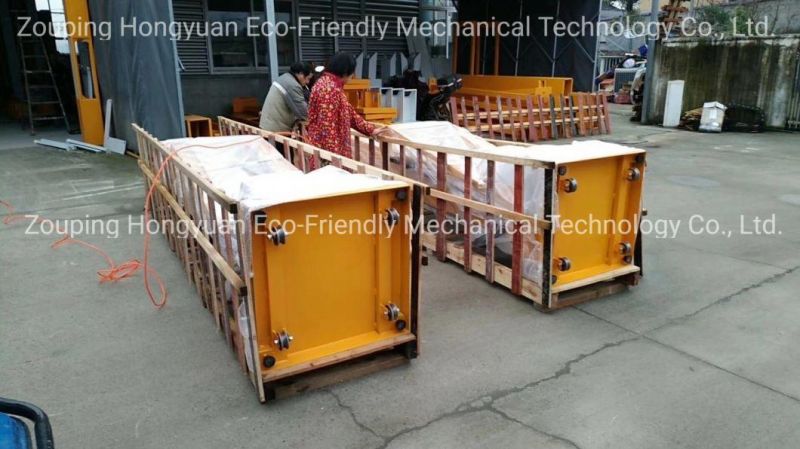

Package Show of Booth Reciprocator Powder Coating for powder coating line and auto booth use





Certificate of our product and company

Our Team is serving you at any time

Send us an inquiry about Booth Reciprocator Powder Coating for powder coating line and auto booth use
