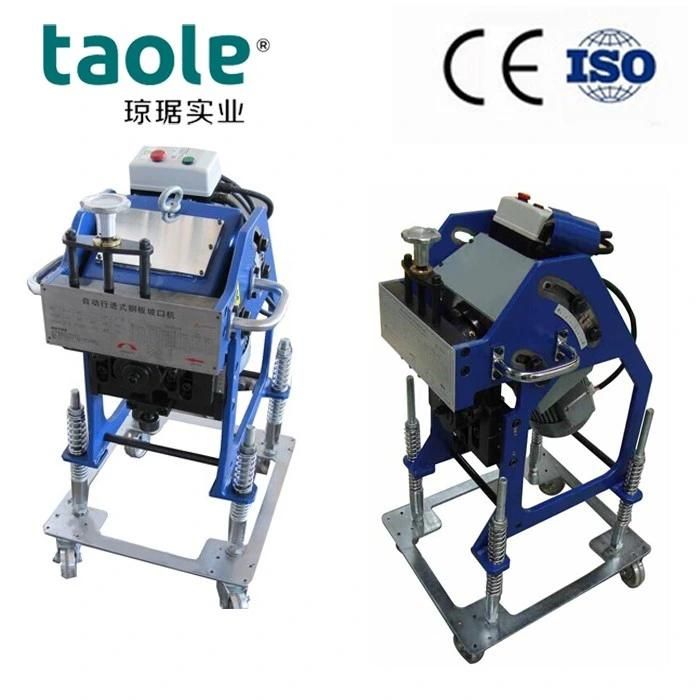

• Model NO.：GBM-12D
• Total Power：750W
• Motor Speed：1450r,Min
• Feed Speed：1.5-2.6 ,Min
• Clamp Thickness：6-30mm
• Clamp Width：>75mm
• Process Length：>70mm
• Bevel Angle：25-45 Degree
• Single Bevel Width：0-12mm
• Bevel Width：0-18mm
• Cutter Plate：93mm
• Net Weight：155kg
• Model：Gbm-12D
• Transport Package：Wooden Box
• Specification：800mm*800mm
• Trademark：taole
• Origin：Shanghai
• HS Code：8460310000
• Production Capacity：100

ModelGBM-6DGBM-12DGBM-12D-RGBM-16DGBM-16D-RClamping Plate Thickness4-16mm6-30mm6-30mm9-40mm9-40mmMin.Processing Plate Width≥55mm≥75mm≥75mm≥115mm≥115mmNet Weight for Machine33kg155kg235kg212kg315kgBeveling Width6mm/time
Max: 8mm12mm/time
Max. 18mm12mm/time
Max.18mm16mm/time
Max. 28mm16mm/time

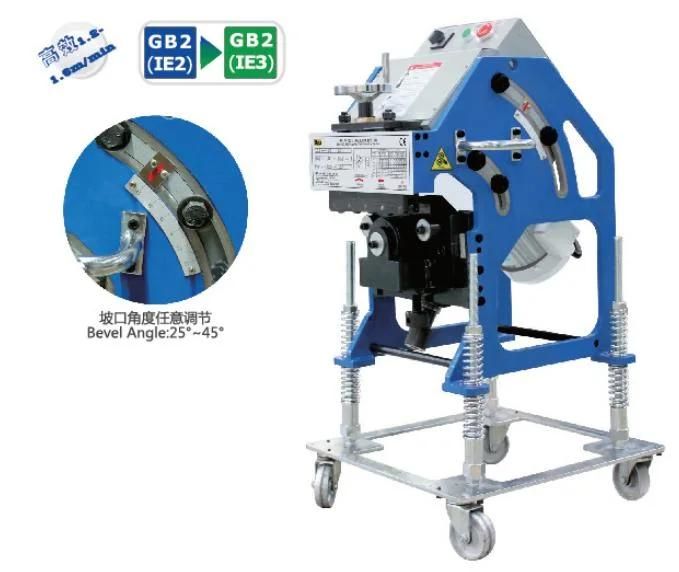

Max.28mmBeveling Angle25°, 30°, 35°, 40°, 45°25°-45°
 (adjustable)25°-45°
(adjustable)25°-45°
 (adjustable)25°-45
(adjustable)Beveling Speed1.2 - 1.8m/min1.5 - 2.6m/min1.5 - 2.6m/min1.2 - 1.6m/min1.2 - 1.6m/min







Features:

• High quality transmission reducer with efficiency and stability.
• Shock absorption to move with fast bevelling.
• Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
• Low noise while processing by imported motor.
• Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
• Feeding used efficient gear system.
• Electrical wiring comply with CE standard and safty systerm.
• Special parts used high wear-resisting and hardness material
• Favourite price for a high quality tool.
• Accessories & parts and tools will be offered in a tool box with manual .





Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required

• Advise your Plate material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed
