Ce Proved Aluminium Ridge Cap Cold Roll Forming Machine Sheet Metal Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：312
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Name：Metal Roof Ridge Cap Roll Forming Machine
- Suitable to Process：Color Steel Plate
- Width of The Plate：400mm
- Thickness of The Plate：0.3-0.8mm
- Rollers for Forming：10 Rows
- Diameter of The Roller：70mm
- Rolling Material：Carbon Steel 45#
- Main Motor Power：3kw
- Productivity：8-12m,Min
- Cutting Method：Hydraulic Mould Cutting
- Transport Package：One 20FT Container
- Specification：312
- Trademark：DIXIN
- Origin：Heibei China
- HS Code：84552210
- Production Capacity：10000,Year
Description
Basic Info.
Model NO. 312 Customized Customized Advantage Easy to Maintenance Condition New Name Metal Roof Ridge Cap Roll Forming Machine Suitable to Process Color Steel Plate Width of The Plate 400mm Thickness of The Plate 0.3-0.8mm Rollers for Forming 10 Rows Diameter of The Roller 70mm Rolling Material Carbon Steel 45# Main Motor Power 3kw Productivity 8-12m/Min Cutting Method Hydraulic Mould Cutting Transport Package One 20FT Container Specification 312 Trademark DIXIN Origin Heibei China HS Code 84552210 Production Capacity 10000/YearProduct Description

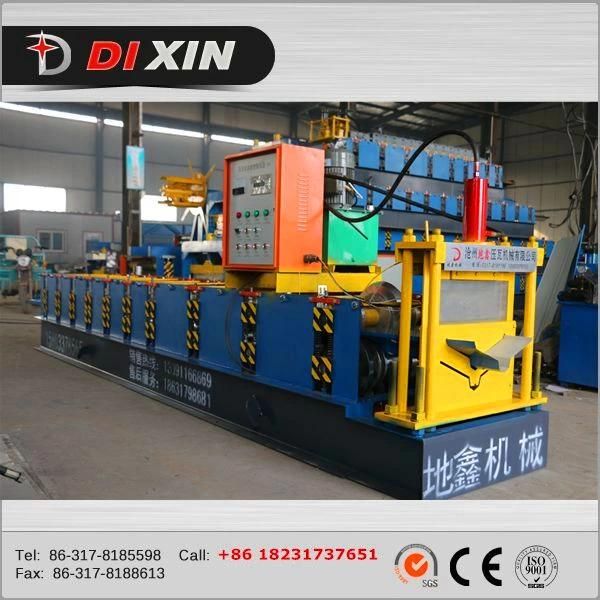

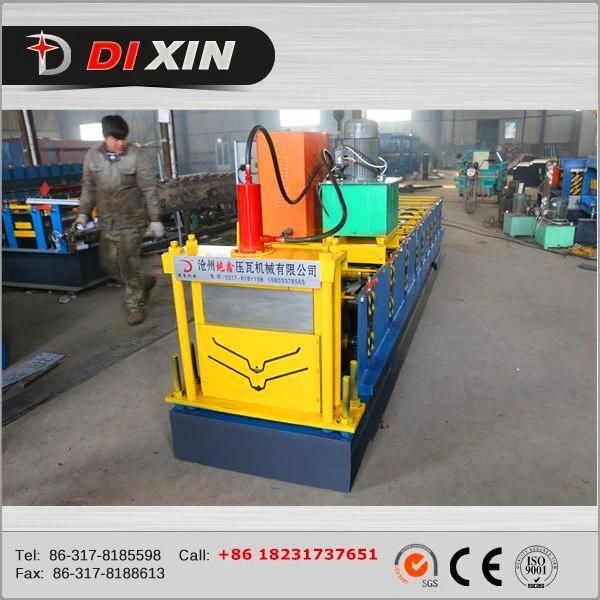

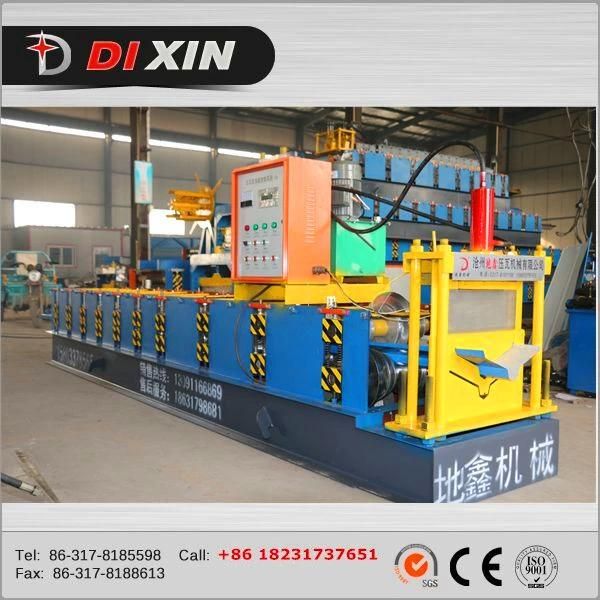

Ridge roll forming machine roof tile roll forming,metal roof ridge cap roll forming machinePPGI ridge cap roll forming machine / good quality rollformer
We design each machine according to user requirement.
Below techinical parameters can be adjusted if needed.
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 400mm |
3 | Thickness of the plate | 0.3-0.8mm |
4 | De-coiler | Manual one, can load 5 tons raw material |
5 | Rollers for forming | 10 rows |
6 | Diameter of the roller | 70mm |
7 | Rolling material | Carbon Steel 45# |
8 | Main motor power | 3kw |
9 | Productivity | 8-12m/min |

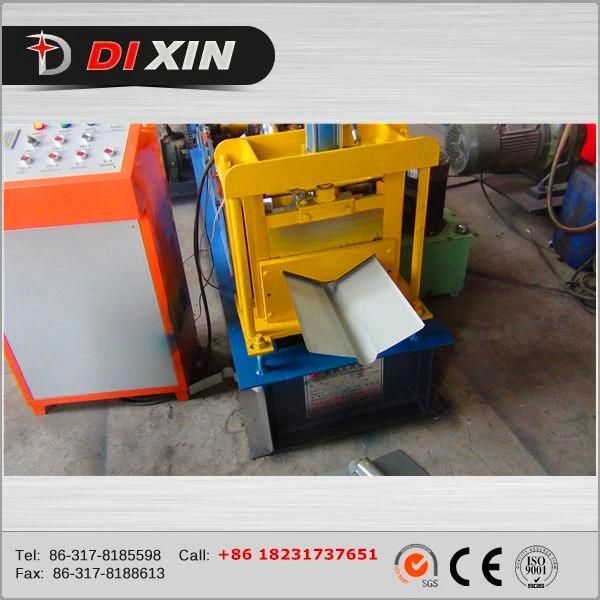

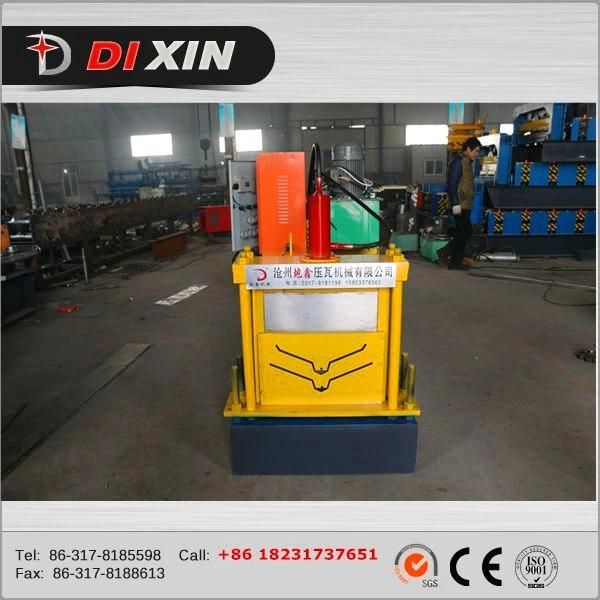

10 | Cutting method | Hydraulic mould cutting |
11 | Material of the cutting blade | Cr12 |
12 | Hydraulic cutting power | 3kw |
13 | Processing precision | Within 1.00mm |
14 | Control system | Delta PLC control |
15 | Side panel of machine | 14mm |
16 | Main structure of the machine | 300 H steel |
17 | Weight | About 2.8T |
18 | Dimensions | 5.6*1.0*1.5m |
19 | Voltage | 380V 50Hz 3phases(changeable as needs) |
20 | Certificate | CE/ISO |
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion
