• Model NO.：DZ
• Trademark：Datang
• Origin：China
• HS Code：84688000
• Production Capacity：500sets Per Month

Basic Info.

Model NO. DZ Trademark Datang Origin China HS Code 84688000 Production Capacity 500sets Per Month

Product Description

This machine adopts PLC programable controller to control the full processes of H-beam clamping, alignment and positioning, spot welding, which has rapid speed and high effeciency.

This machine without voltage protection device, assemlies and automaticly spot welding the variable section H-beam, the welding gun is mechanical and hydraulic tracing way, convienience operation and good quality.



This machine adopts PLC programable controller to control the full processes of H-beam clamping, alignment and positioning, spot welding, which has rapid speed and high effeciency.

This machine without voltage protection device, assemlies and automaticly spot welding the variable section H-beam, the welding gun is mechanical and hydraulic tracing way, convienience operation and good quality.

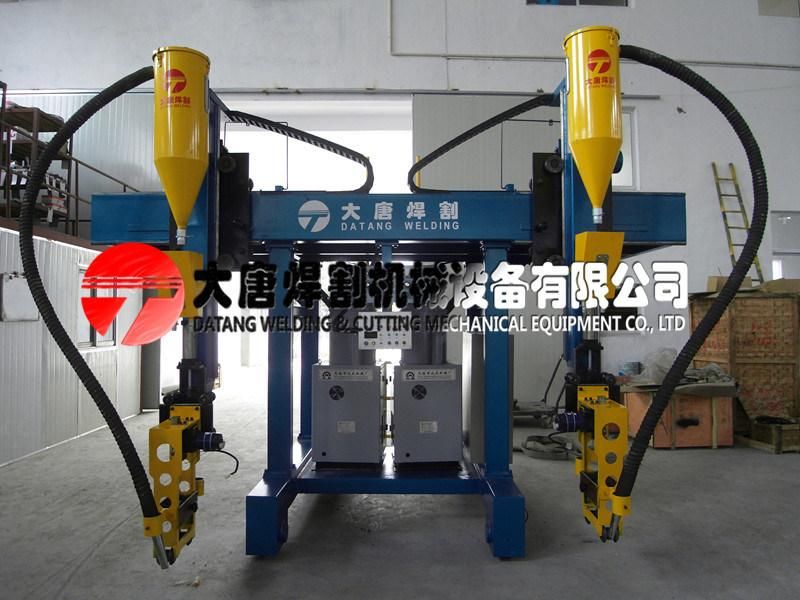

DZT type Gantry Welding Machine adopts imported alternating frequency changer.
It has stable function and fast kickback function.

This arc guiding rack is triple axis mechanical tracing way, to ensure the welding gun aim at the correct position. Mainframe and welder are operated together. It is easily operated and high quality.





H-beam production line
Cutting-Assembling-Welding-Straightening

Specification	parameter
Height of web(mm)	200-2000
Height of flange(mm)	200-800
Length of H beam(mm)	4000-15000(can be designed as required)
Welder model	MZ-1000 SAW welding power, wire feeding machine, 2unit
Welding form	arc
Welding speed(m/min)	0.15-2.5
Back speed(m/min)	3
Rail distance(mm)	1400
Power (Kw)	13(welder is exclude)
