• Model NO.：LDQ-450
• Power Source：Electric
• Cutting Mode：Saw Cutting
• Certificate：CE ISO
• Transport Package：Plywood Exporting Package
• Specification：160KG 850*850*1950MM
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9024109000
• Production Capacity：1500 Sets,Month

Basic Info.

Model NO. LDQ-450 Power Source Electric Cutting Mode Saw Cutting Certificate CE ISO Transport Package Plywood Exporting Package Specification 160KG 850*850*1950MM Trademark HST Origin Jinan, Shandong, China HS Code 9024109000 Production Capacity 1500 Sets/Month

Product Description

LDQ-450 Automatic Metallographic Precision Sample Cutter


1. Application:
Model LDQ-450 Automatic specimen cutting machine is a kind of durable cutting machine specially designed with the consideration of specimen-preparing environment. It is the ideal choice of the large specimen-preparing machine because of its mighty function and large cutting room. This machine consists of control system, cutting system, lighting system, cooling system and cleaning system etc. Two automatic cutting tables are equipped in the spacious cutting chamber. The X-axis direction is mainly used for continue parallel cutting, and the Y-axis direction is mainly used for the cutting of huge work piece. Three cutting modes make the job of cutting large specimen very easy. All kinds of cutting parameters can be displayed on the large touch-type LCD screen in real time. It is easy to operate the friendly interface. The automatic cutting can reduce operator's fatigue, improve the efficiency of specimen preparation and guarantee the consistency. The super cooling system avoids the damage of burning to the specimen when cutting. Imported gate type safety switch and explosion proof hood can provide the operator with safe guarantee.

2. Features
1. 7.5 inch touch-type LCD display system.
2. Variable frequency speed change: 0~2300rpm, wide cutting range
3. Three-axis linkage, max. distance of X-axis 200mm, max. distance of Y-axis 300mm, max. distance of Z-axis 240mm; movement speed 0-10mm/s, movement distance ±0.005mm
4. Cutting speed is adjustable within 0.005-10mm/s
5. 120L circulation cooling, with magnetic filter
6. Automatic cutting
7. Automatic switch guard
8. 680mmX1030mm oversized cutting chamber;
9. Human Machine Interface (HMI)
10. Supper large cutting chamber, T-shape worktable, quick clamping vise
11. 120L recycle cooling system
12.Gate type safety switch
13.Three kinds of cutting modes: chopping type, pulse-type and sweeping type (notes: according to materials, diameter and hardness)

3. Main specifications:

Model	LDQ-450
Max. pass diameter	Ø160mm
The largest travel	Z-axis 240mm; Y-axis 200mm;X-axis 245mm
Cutting room size	680 x 1030mm
Motor	7.5 KW
Power supply	three phases, 380V, 50Hz
Adjustable rotating speed	200-2200 rpm
Cutting speed	0.005-1mm/s
Dimension	1590X1600X1940mm

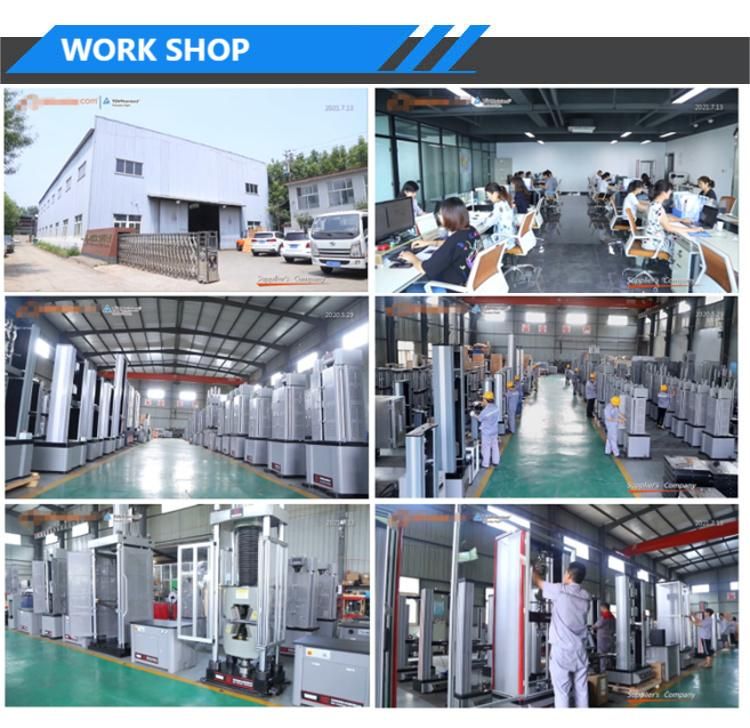

Company and Factory Pics:
