Yq32-500 Ton Hydraulic Press Machine
Shanghai Lejia CNC Machine Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YQ32-500
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Hydraulic Type：Frame Type
- Machine Name：Hydraulic Press Machine
- Color：Green,Blue, etc.
- Rated Pressure：5000kn
- Max. Pressure of Liquid：25MPa
- Knock-out Pressure：1000kn
- Stroke of Slide：900mm
- Stroke of Knock-out：350mm
- Daylight：1500mm
- Transport Package：Applicable for Shipment
- Specification：40ton~1600ton
- Trademark：SLJS
- Origin：Shanghai, China
- HS Code：8462919000
- Production Capacity：400 PCS, Year
Description

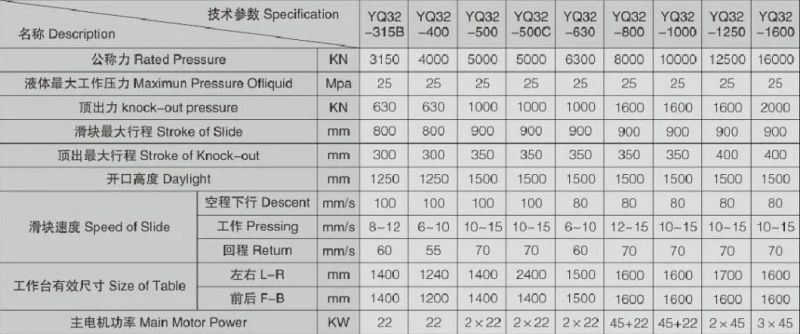

Model No.Unit YQ32-500 YQ32-500C YQ32-630 YQ32-800 YQ32-1000 Rated Pressure KN 5000 5000 6300 8000 10000 Max. Pressure of Liquid Mpa 25 25 25 25 25 Knock-out pressure KN 1000 1000 1000 1600 1600 Stroke of Slide mm 900 900 900 900 900 Stroke of Knock-out mm 350 350 350 350 350 Daylight mm 1500 1500 1500 1500 1500 Speed of Slide Descent mm/s 100 100 80 80 80 Pressing mm/s 10-15 10-15 6-10 12-15 10-15 Return mm/s 70 70 60 70 70 Dimensions of Table L-R mm 1400 2400 1500 1600 1600 F-B mm 1400 1400 1500 1600 1600 Motor Power KW 2x22 2x22 2x22 45+22 45+22
