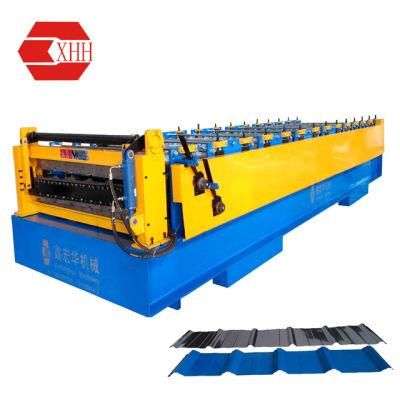

Steel Ceiling Panel Forming Machine (KB14-105)
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：SGS
- Warranty：12 Months
Base Info
- Model NO.：KB14-105
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Model No.：Kb14-105
- Material Width：148-152mm
- Effective Width：105mm
- Material Thickness：0.3-06mm
- Motor Power：4kw
- Hydraulic Cutting Power：2.2kw
- Working Speed：10-14m,Min
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：8455229090
- Production Capacity：10-15sets,Month
Description
1) Roll forming station: 15 steps
2) Roll forming motor Power: 4kw
Hydraulic cutting power: 2.2KW
3) Weight: 4500KG
4) Roll forming material Thickness: 0.3-0.7 mm
5) Roll forming speed: 10-14m/min
Main Machine Accessories:
1) Manual decoiler
2) Roll forming machine
(Roller material: 45# steel, with heat treating processing, then do chroming)
3) Hydraulic cutting device (Automatic cutting, Material of cutter: Cr12 steel)
4) Run out table
5) PLC control box( Simens brand etc. )
