Gmm-60s Metal Plate Beveling Machine Self-Moving Tool
Shanghai Taole Machine Co., Ltd.- After-sales Service：1 Year
- Warranty：Online Support
- Type：Plate Beveling Machine
- Style：Desktop
- Layout：Horizontal
- Automatic Grade：Semi-Automatic
Base Info
- Model NO.：GMM-60S
- Power Source：Electric
- Certification：CE, ISO
- Transport Package：Wooden Case
- Specification：Beveling width: 0-45mm
- Trademark：TAOLE
- Origin：Shanghai
- HS Code：8460909000
- Production Capacity：300 PCS
Description
Product Description
Product Application

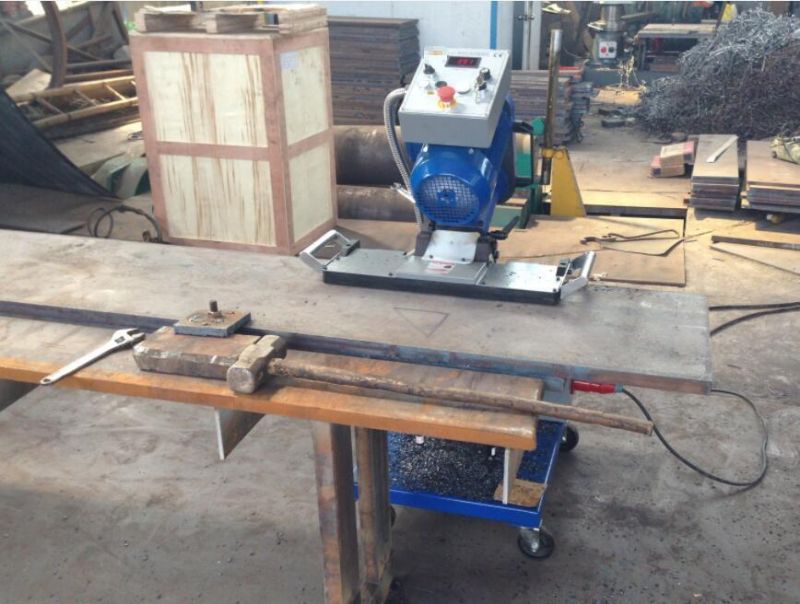

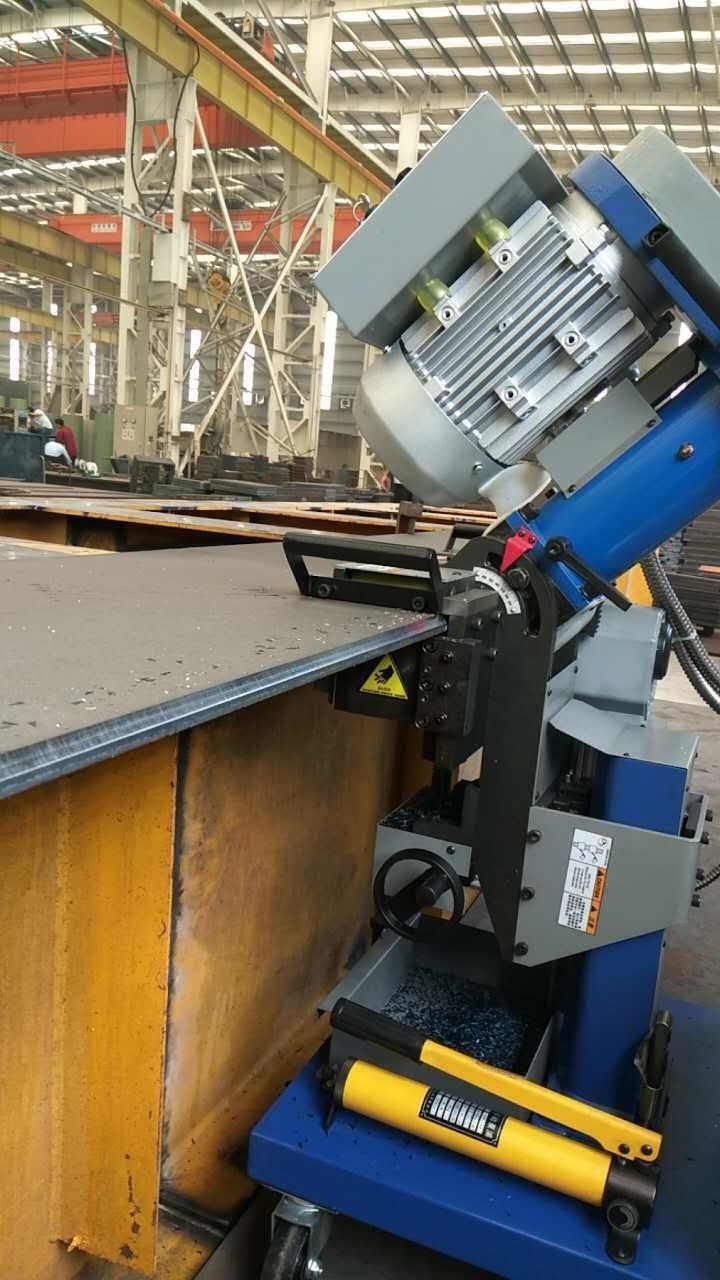

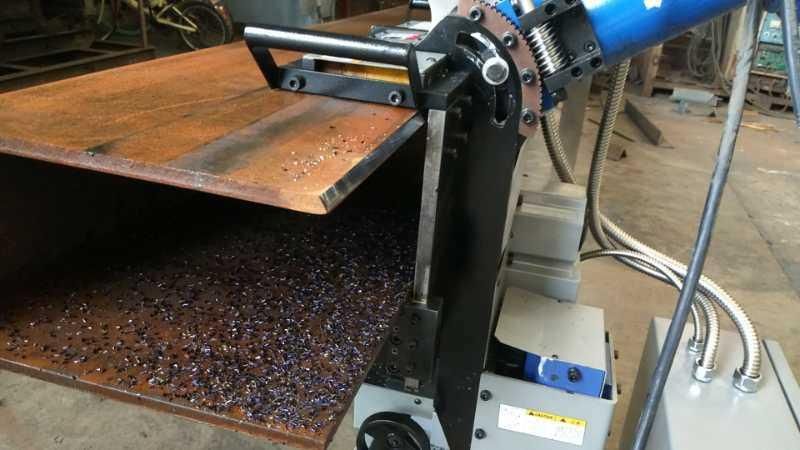

GMM-60S is compact and convenient metal plate beveilng machine . Widely using in the small workshop , welding workshop .

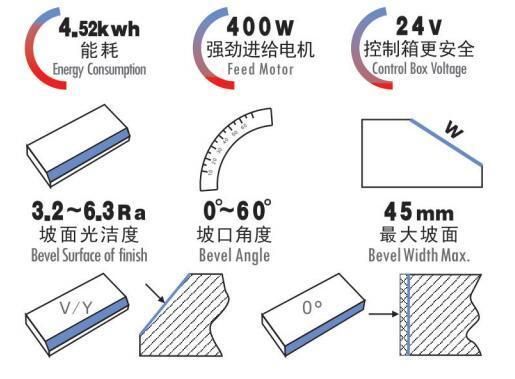

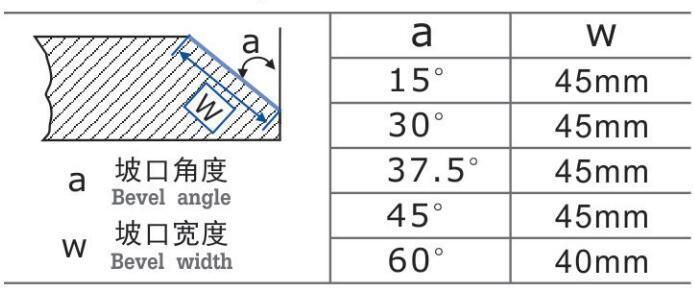

It is available for plate thickness 6-60mm, bevel angel 0 to 60 degree for vary type of welding joint such as V/Y, 0 degree. Max bevel width could reach 45mm.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
Product Application
GMM-60S is compact and convenient metal plate beveilng machine . Widely using in the small workshop , welding workshop .
It is available for plate thickness 6-60mm, bevel angel 0 to 60 degree for vary type of welding joint such as V/Y, 0 degree. Max bevel width could reach 45mm.
Main Features
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
