• Model NO.：CNCSG3000
• Flame Cutting Thickness：6-300mm
• Flame Cutting Speed：50-800mm,Min
• CNC Control System：Sjtu-Sk, Micro Edge, Edge PRO, Kp
• Available Plasma Power：Hypertherm, Thermadyne, Kjellberg
• Programming Software：Fastcam
• Transport Package：Wooden Case and Tray
• Specification：CE
• Trademark：TAYOR
• Origin：China
• HS Code：8456901000
• Production Capacity：500PCS,Year

Technical specificationCutting Width (mm)22002700320042005200Can be customizedTrack Width (mm)30003500400050006000800mmless than widthCutting Length (m)2mless than track lengthSuggested cutting thickness(mm)Oxy-fuel:6-120(Max 300mm)/ Plasma:1-80Basic componentsCutting ModePlasma / Oxy-fuelDrive Motor NumberDual-sideCutting Torch NumberCustomizationDriving MotorServo motorCNC ControllerSJTU-SK/Micro EDGE/EDGE pro/KPAvailable Plasma PowerHypertherm/Thermadyne/ Kjellberg /TAYOR LGKNesting softwareFASTCAMPower voltage3×380V±10% 50Hz or according to user's local conditionOperation languageMultilanguage

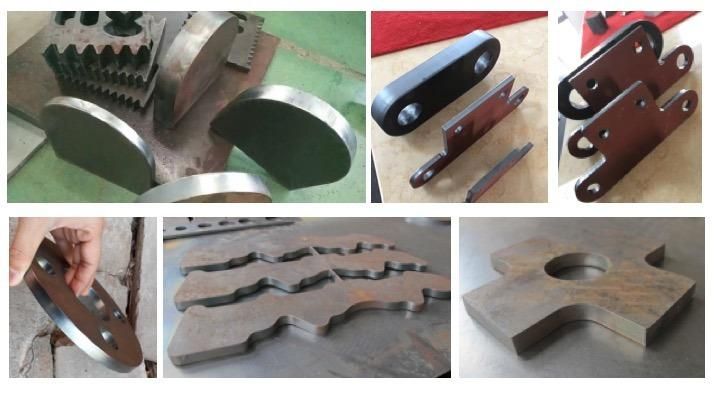

Cutting Samples

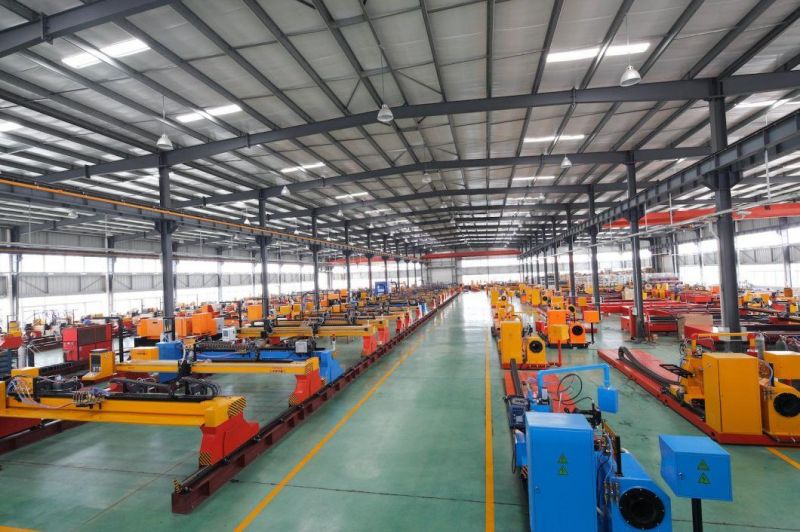

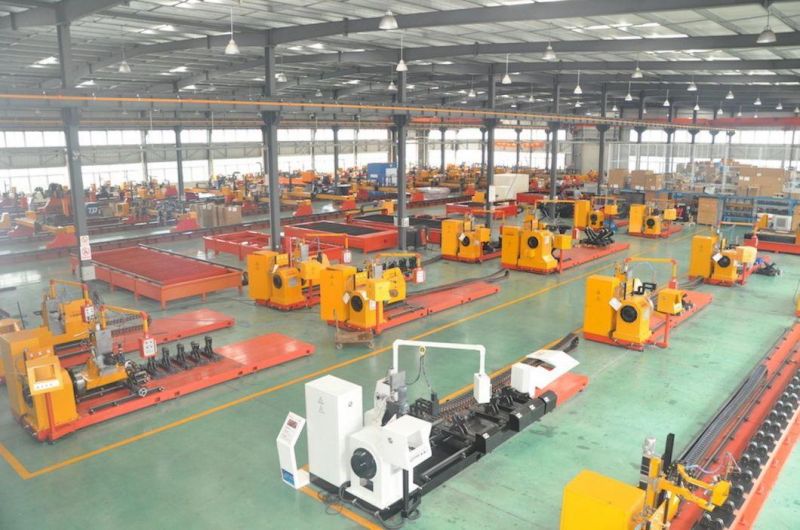

CNC cutting machine workshop

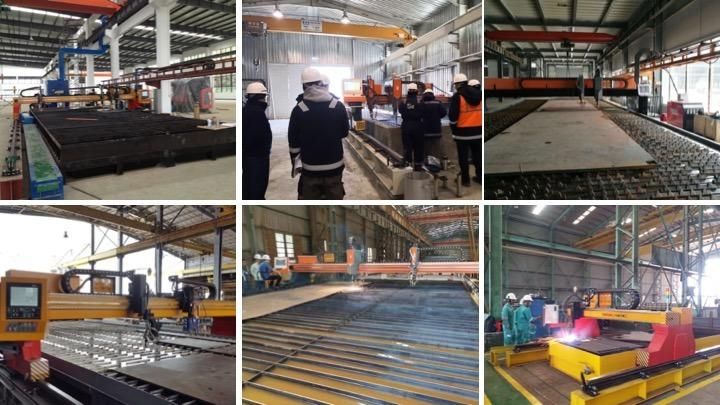

Machines at users' Site



Exhibition



Patents

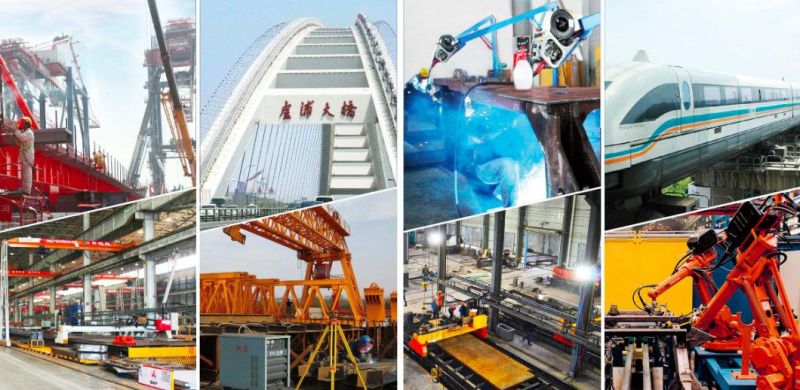

Our Projects
