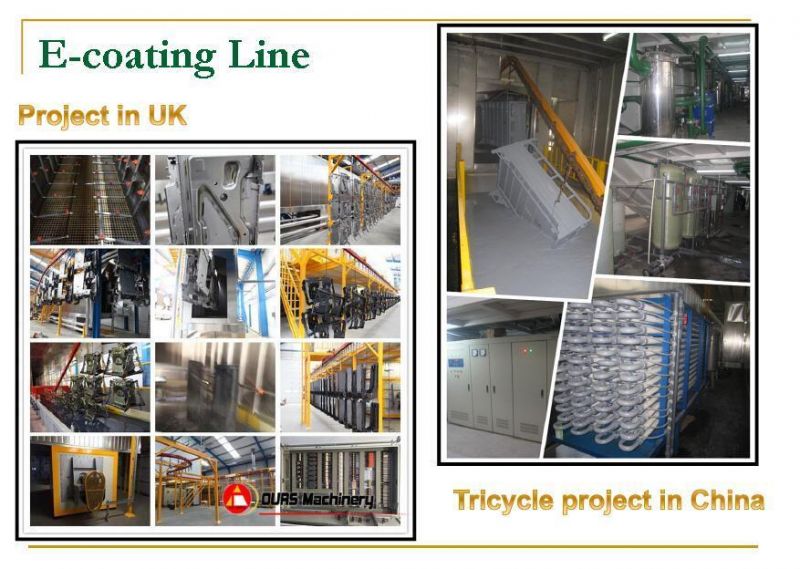

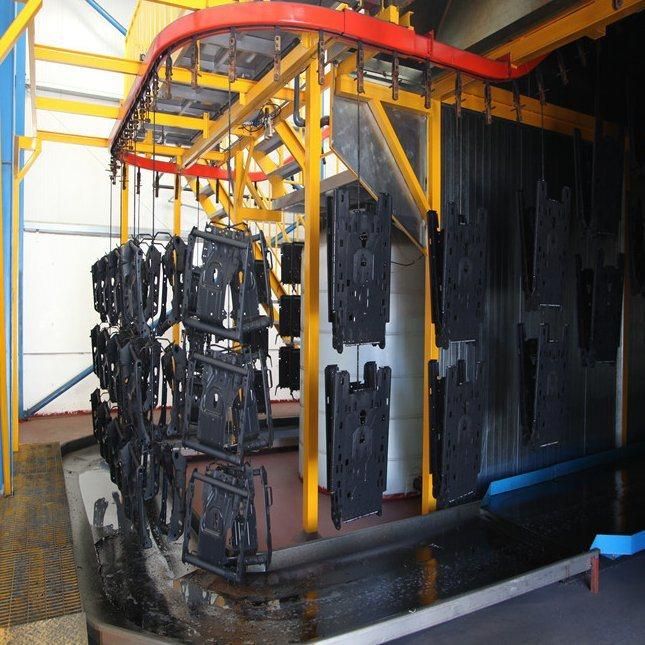

Automatic ED Painting Line/ Electro-Coating Line for Automotive Parts
Yangzhou OURS Machinery Co., Ltd.- After-sales Service：Field Installation, Commissioning and Training
- Warranty：12 Months
- Type：Coating Production Line
- Coating：Cathodic Electrodeposition
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：OURS-2017
- Condition：New
- Voltage：220V-415V, as Request
- Power：50kw-200kw
- Size：Customized
- Transport Package：Standard Container
- Specification：SGS, ISO
- Trademark：ours coating
- Origin：China(Mainland)
- HS Code：8424899990
- Production Capacity：6 Sets,Year
Description
Technical advantages:
1. Non-poisonous
2. Easy automatic control
3. Water solubility
Operating principle:
Putting the workpieces and corresponding electrode into the water-soluble paint and connecting the electricity supply. The resin and fillers in the paint will separate out equably on the surfaces of the workpieces and deposit to form water-fast paint films on the physical and chemical effects of electric fields.
Main parts of the full line:
1. Pretreatment device

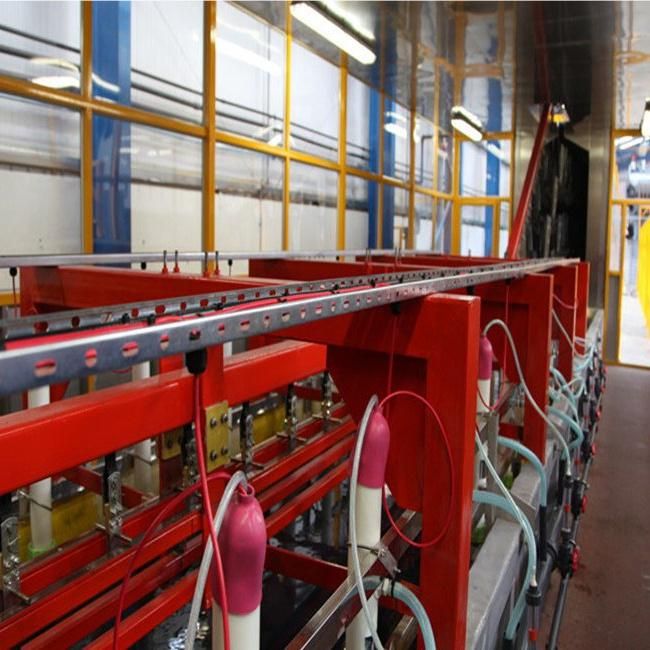

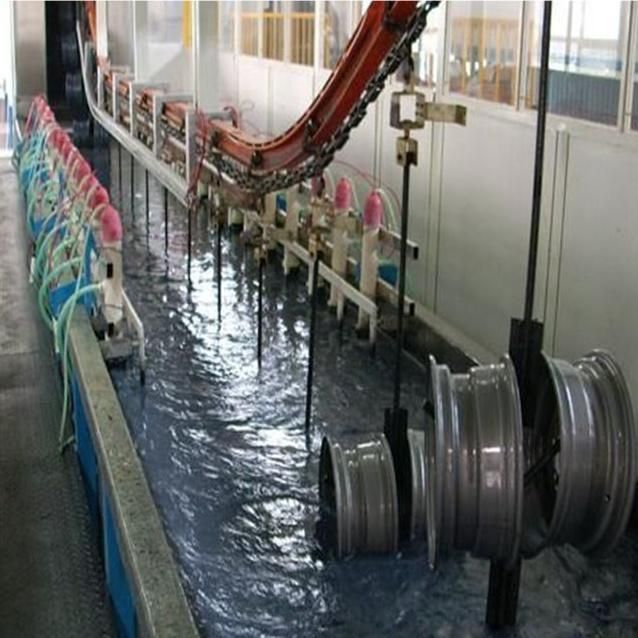

2. Electrophoretic tank system
3. Electrophoretic transferring tank system
4. Stirring apparatus
5. Filter system
6. Water washing system
7. Ultrafiltration system
| No. | Item | Description |
| 1 | Voltage | Iron and steel:40~70V;Aluminum: 60~100V;Zinc: 70~85V |
| 2 | Electrophoresis time | 1~3 min for normal workpieces,3~4 min for large workpieces |
| 3 | Temperature of paint | 15~30 degree |
| 4 | PH value of paint | 7.5~8.5 |
| 5 | Distance between the workpieces and the cathode | More than 20 cm |
