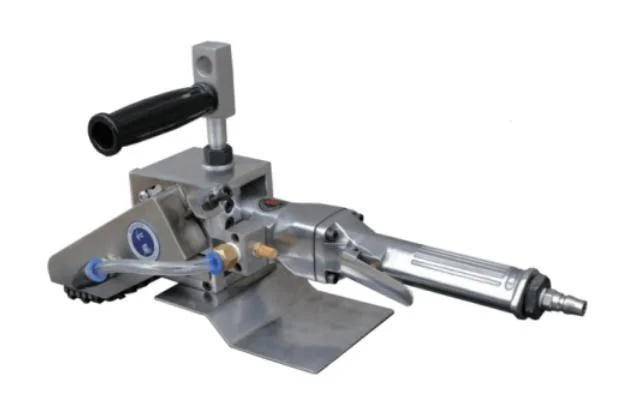

Waste Carton Stripper for Corrugated Board (HF02)
Tangshan Jiasun Import and Export Co., Ltd.- Speed：2500rpm
- Min Stripping Edge：10 mm
- Air Pressure：0.65MPa
- Net Weight：3.25kg
- Gross Weight：10kg
- Dimensions：470*250*60mm
Base Info
- Model NO.：HF02
- Brand：Hf
- Package：Rigid Box
- Total Weight：10kg
- Chain Weight：0.4 Kg
- Transport Package：Box
- Trademark：JIASUN
- Origin：Hebei China
- HS Code：8441809000
- Production Capacity：50 PCS,Month
Description
Gross weight 10KG(rigid box package) 470×250×60mm 7KG (carton package) 480×270×180mm Chain weight 0.4KG
The machine is used for strip off waste edges of die-cut cardboard ,thin or dinary corrugated paper.
Main Features
A) Safe and Durable
The Pneumatic motor is imported from Taiwan and equipped with double safe switch to ensure the safety of the opreator.Teeth chain adopts high-strength chromium and molybdenum alloy bu heat treatment --durable,long life span with easy and fast spare parts change.It produced according to CE standard.
B)Easy Operator
The structure is light ,compact and user friendly-only short time training can operate for male or female operators.
C)High Efficiency and Less Wast
The machine is high efficient equipment.The efficiency can be 5-10 times higher than the manul ine and no damages to the products.
Accessoroes and Spare Parts of the Machine:

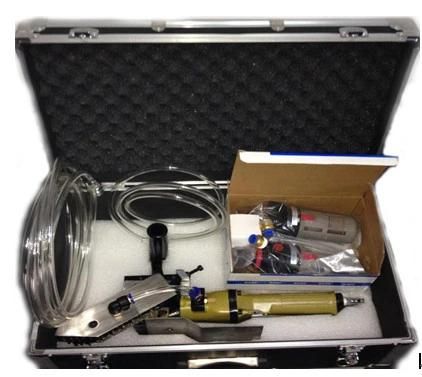

Spare parts :5 meters plastic pipe ,1 oil-water separator ,1 set internal hexagonal spanner,1 open wrench ,one pair of pipe connector
Chain reference
The machine is used for strip off waste edges of die-cut cardboard ,thin or dinary corrugated paper.
Main Features
A) Safe and Durable
The Pneumatic motor is imported from Taiwan and equipped with double safe switch to ensure the safety of the opreator.Teeth chain adopts high-strength chromium and molybdenum alloy bu heat treatment --durable,long life span with easy and fast spare parts change.It produced according to CE standard.
B)Easy Operator
The structure is light ,compact and user friendly-only short time training can operate for male or female operators.
C)High Efficiency and Less Wast
The machine is high efficient equipment.The efficiency can be 5-10 times higher than the manul ine and no damages to the products.
Accessoroes and Spare Parts of the Machine:
Spare parts :5 meters plastic pipe ,1 oil-water separator ,1 set internal hexagonal spanner,1 open wrench ,one pair of pipe connector
Chain reference
| small tooth HF-03 | waste edge >8mm | Cardboard ,E corrugated sheet |
| medium tooth HF-02 | waste edge >15mm | E,B,C,F with 3 lay corrugated sheet, above 300gsm cardboard |
| big tooth HF-01 | waste edge >20mm | 3,5,7 play corrugated sheet |
