• Model NO.：CL-191S-B
• Condition：New
• Trade Mark：Colo
• Carton Size：118*79*45
• Wooden Box Size：123*80*54
• Net Weight：48kg
• Power Range：110V,220V
• Frequency：50Hz ,60Hz Single Phase
• Spray Gun：Colo-08
• Transport Package：Carton,Wooden
• Specification：CE ,IOS
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：200set,Month

Basic Info.

Model NO. CL-191S-B Condition New Trade Mark Colo Carton Size 118*79*45 Wooden Box Size 123*80*54 Net Weight 48kg Power Range 110V/220V Frequency 50Hz /60Hz Single Phase Spray Gun Colo-08 Transport Package Carton/Wooden Specification CE /IOS Trademark COLO Origin China HS Code 8424899990 Production Capacity 200set/Month

Product Description

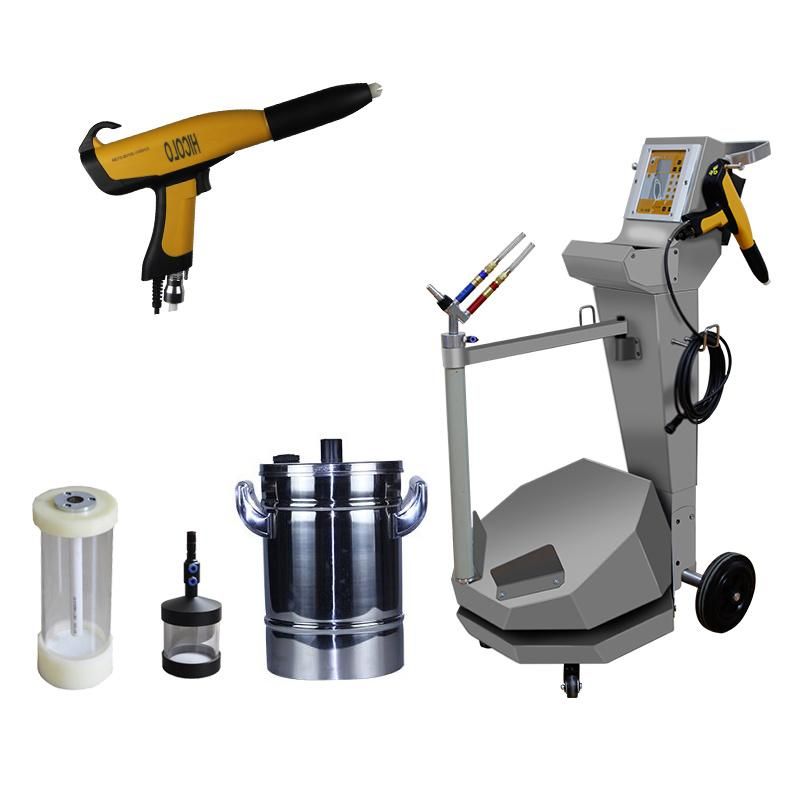

New Manual powder box feed unit CL-191S-B

Digital value intelligent powder coating systemFor constant use of bigger powder quantities

Quick and easy color changes carried out within a few seconds
Technical parameter

Power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Maximum compressed-air consumption	13.2 m3/h

Special features of new CL-191s digital intelligent control unit:
new accurate design
superior performance
optimum coating results
digital air flow technology
powder is more stable
more uniform
better atomization
More features:
Up to 20 coating programs can be stored in the control unit,which includes also 3 preset standard programs,they are perfectly configured to coat flat parts,complicated parts,recoat parts can be easily selected via the Display pilot





Designation	Function
A1-A4	Display of actual / preset values and system parameters
A5	Display of program numbers, error diagnosis codes and status information
B1	Powder output display (in %)
B2	Total air volume display (in Nm³/h)
B3	Spray current display (in µA)
B4	Fluidizing display (in Nm³/h)
B5	High voltage display (in kV)
B6	Electrode rinsing air display (in Nm³/h)

Testing samples  for complex workpieces

Application area:car rim,recycle stand,shelf,hanger etc.

Any  question,pls contact us ,
