• Production Capacity：100PCS,Month

Basic Info.

Production Capacity 100PCS/Month

Product Description

Automatic Wire Nail Making Machines India Bangladesh

My contact Way
My mobile: 86-15251635399
Contactor: Echo Shi

Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting
various machines and equipments since 1995.

Our main products include Nail Making Machine Production Line, Wire Drawing Machine
Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

Our engineer travels too many countries to assist customers to install the nail production line if necessary.
Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation.

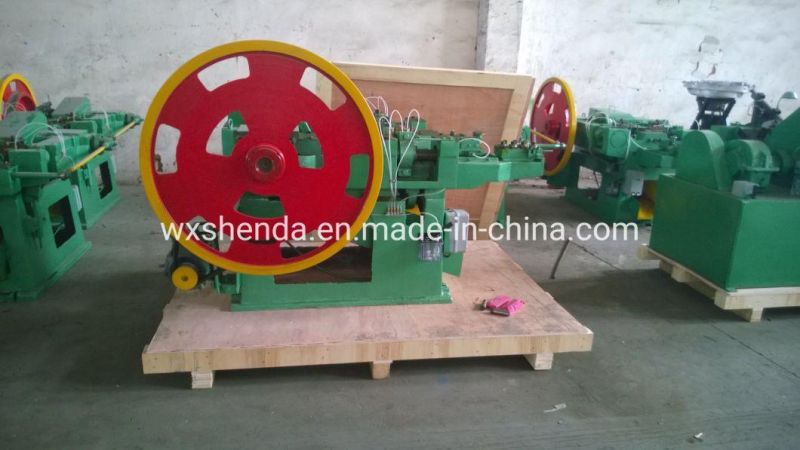

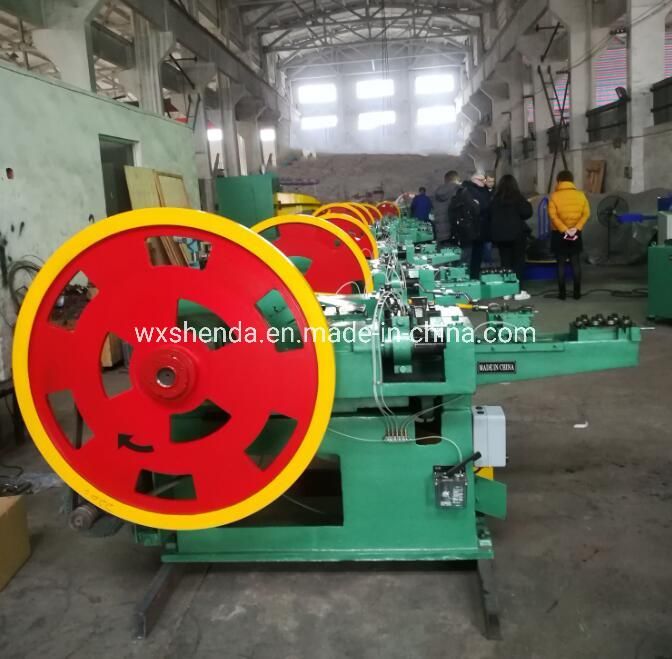

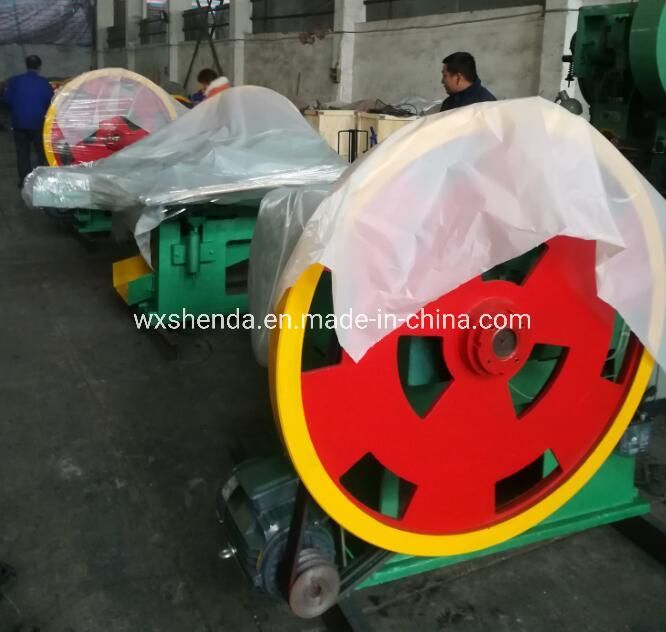

High Speed Low Noise Nail Making Machine

Nail making machine is used to make nails, it is easy to operate, and it can feed steel wire and making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.

There are seven models of wire nail making machines. The specification of each machines is as follow :

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C	Z94-6.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm	6.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.1mm	4.5mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm	200mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm	100mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min	180pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m	3.5*1.9*1.8
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons	5.5ton

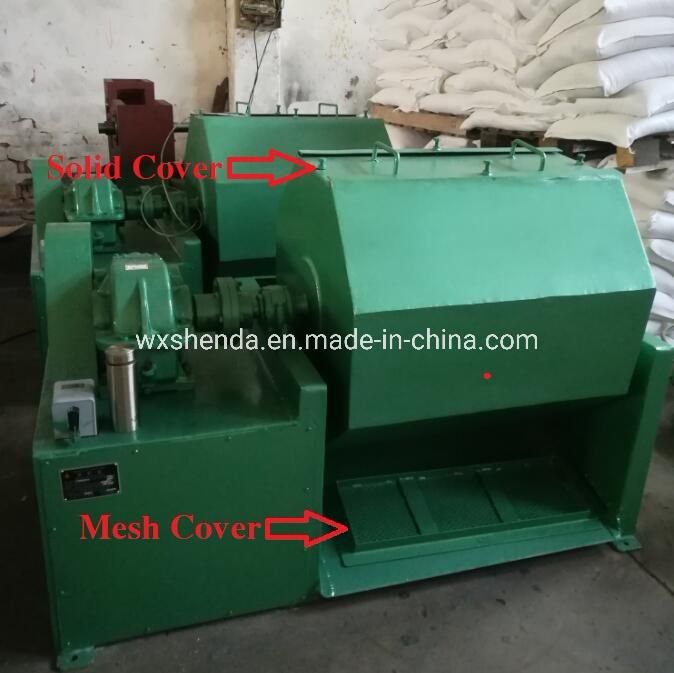

Nail polishing machine is used to make the nails clean &bright.

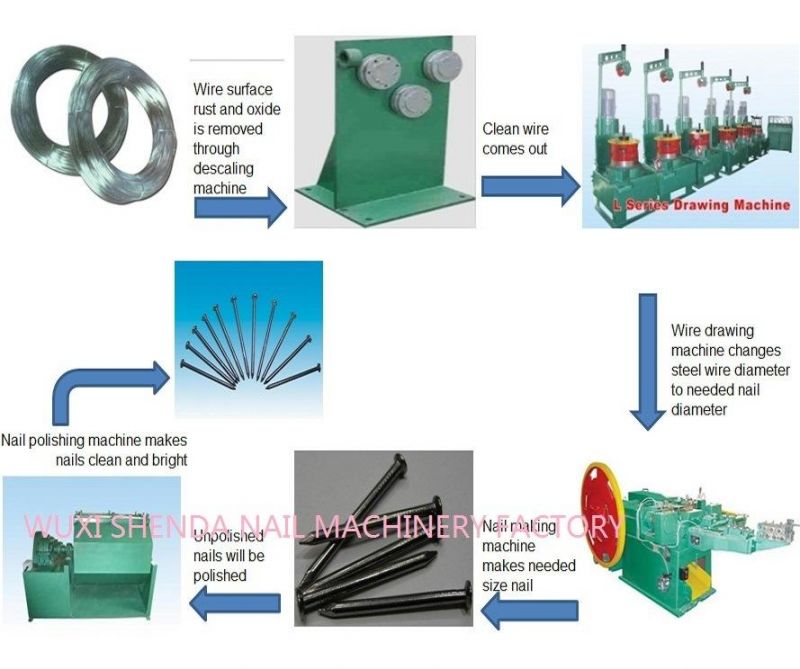

For your reference, following is the whole Nail making process::

1.Drawing steel wire: use wire drawing machine to change needed wire diameter.(If nail diameter is 3mm, wire diameter will be drawn to 3mm)
2.Making nail: Enter the finished steel wire into nail making machine.It can produce not-so-bright nail.
3.Polishing:Put the semi-finished nails into the poblishng machine with some saw dust,paraffins and gas. After clashing and crashing,the nails become bright.
4.Packing:Use wooden case to pack the nails.


Our service:
Your concern is our concern!Your win is our win! We expect double-win!

Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
After-sales service:
1 years quality guarantee, Life-long Maintenance
