• Model NO.：BZW-4T-C
• Trademark：bo zhi wang
• Origin：Jiangsu Changzhou
• HS Code：8479899090
• Production Capacity：800PCS,Year

Basic Info.

Model NO. BZW-4T-C Trademark bo zhi wang Origin Jiangsu Changzhou HS Code 8479899090 Production Capacity 800PCS/Year

Product Description

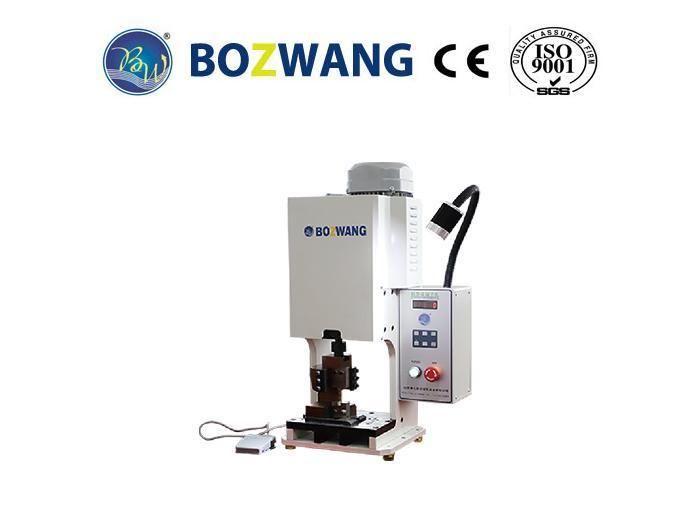

BZW-4T-C Mute terminal crimping machine
A weight of 58 kg and a pressure of 4 tons. Are only some main characteristics to describe the most powerful crimping machine. It is also easy to operate and has all the features than the lighter and less powerful ones. Included light and simply changeable terminal support so it can be adjust for the required type of applicator, vertical and horizontal.

Functions: Crimping.

Product features

Semi-automatic: It only requires one operator using a pedal that activates the crimping terminal.
High Precision: Controlled with advanced frequency converter, variable frequency motor and equipped with imported high precision approaching switch and reducer, which are accurate in operating. High in efficiency.
Crimping: The crimping height could be directly adjusted on the operating panel.
High efficiency: With an ecofriendly design, causing low noise and power saving. BW-4T-C has wider adjusting range for width, higher precision for adjustment, which results in saving time in adjusting the crimping.
Easy to use: Just a simple training is required to operate this machine efficiently. Easy to adjust and change the different applicators. Integrated illumination so the operator has a better view of the working area.

Technical parameters

Specification	310 x 270 x 710 mm
Crimping force	40kn
Weight:	80kg
Average power consumption	0.85kW
Motor power	1.5kW
Power:	220v 50Hz
Stroke	30mm or 40mm
