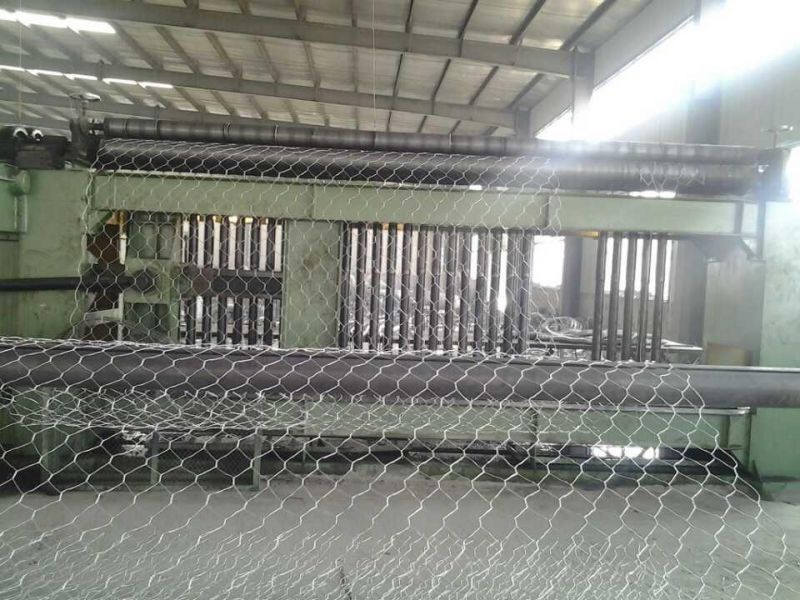

80*100 Automatic Hexagonal Wire Mesh Machine /Gabion Box Machine
Anping Xingmao Metal Wire Mesh Co., Ltd.- Type：Hexagonal Wire Mesh Machine
- Weight:T 13-15t：Mesh Width:T 2.3-4.3m
- Power:T 11-22kw：Mesh Size:T 80X100mm, 100X120, 60X80
- Voltage: 220V,380V.400V：Capacity: 165*4(L*W) (660 Square Meters Per Hour
- Galvanized Wire Diameter: 2-3.6mm：Block Dia.: 450mm
- Power: 22kw (Main Machine Power)：Dimension: 7200*1400*2300mm
Base Info
- Model NO.：XM
- Transport Package：According to International Standards to Avoid Any
- Specification：ISO9001
- Trademark：XM
- Origin：China
- HS Code：73142000
- Production Capacity：10 Set,Sets Per Month
Description
Specification(mm)
Max Net Breadth(mm)
Max Thread Diameter(mm)
Twisting Model
Main Shaft Ratary Speed
Motor Power(KW)
Theoretical Production Speed
Twisting
(Mesh/min)
m/h
Diamention(LXWXH)mm
Weight(T)
60X80
2300
2.8
double
25
11
25
165
5200X1400X2400
13
3300
2.8
double
25
15
25
165
6200X1400X2400
14
4300
2.8
double
25
22
25
165
7200X1400X2400
15
80X100
2300
3
double
25
11
25
195
5200X1400X2400
13
3300
3
double
25
15
25
195
6200X1400X2400
14
4300
3
double
25
22
25
195
7200X1400X2400
15
100X120
2300
3.2
double
25
11
25
225
5200X1400X2400
13
3300
3.2
double
25
15
25
255
6200X1400X2400
14
4300
3.2
double
25
22
25
225
7200X1400X2400
15
Note:Our factory also can produce the special size according to the client's requirement
