Manual Electrostatic Powder Coat Unit
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Moths
- Type：Coating Spray Gun
- Coating：Powder Coating
- Substrate：Iron
- Certification：CE, ISO
Base Info
- Model NO.：COLO-800DT-H
- Condition：New
- Model：Colo-800d-Th
- Packaging：Carton,Wood Case
- Name：Manual Electrostatic Powder Coat Unit
- Voltage：220V,110V Can Be Custmized
- Packing Dimension：52X 56X58cm
- Product：Manual Electrostatic Powder Coat Unit
- Packing Weight：21kg
- Item：Manual Electrostatic Powder Coat Unit
- Delivery：1-3 Working Days
- Transport Package：Carton
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：1000sets,Month
Description
Specifications of Electrostatic Powder Coating Spray Gun
| Technical Data | |
| Power Range | 110 (+10%) |
| Frequency: | 50/60HZ |
| Temperature range insure | -10 ºC+50 ºC |
| Powder gun weight | 500g |
| Rated output current | 180Ua(max) |
| Maximum output voltage | 0-100KV ( adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative (-) |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Minimum imput-air pressure | 4kg/cm |
| Maxmum water vapor contanet or compressed air | 1.4g/N M3 |
| Maximum compressed-air consumption | 13.2 m3/h |

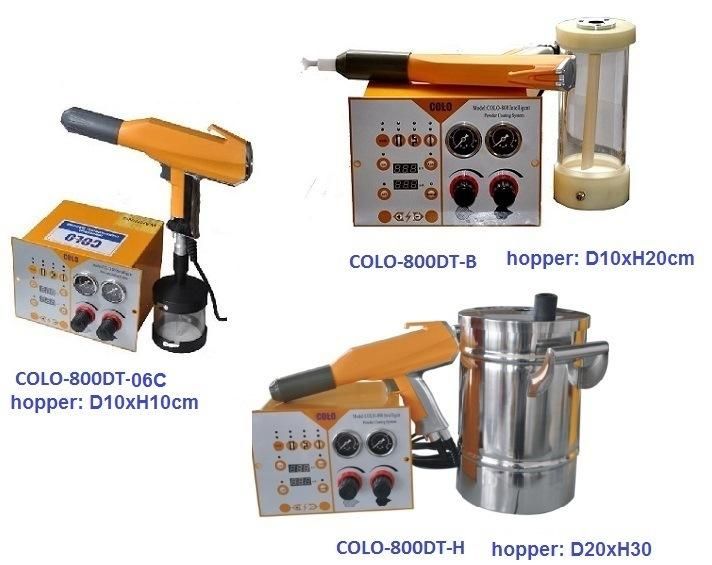

Different size of hoppers equip with the powder coating unit for choice
