• Model NO.：COLO-2447
• Condition：New
• Model No.：Colo-3127
• Name：Industrial Electric Powder Curing Oven
• Application：Powder Coating
• Material：Rock Wool Board
• Item：Industrial Electric Powder Curing Oven
• Voltage：220V,380V
• Power Supply：Electric
• Working Size：W1.2*H1.7*L3.2m
• Warm Board：Thinkness:100-150mm
• Product：Industrial Electric Powder Curing Oven
• Transport Package：Bulk
• Specification：W1.2*H1.7*L3.2m
• Trademark：COLO
• Origin：China
• HS Code：8417809090
• Production Capacity：50sets,Months

Basic Info.

Model NO. COLO-2447 Condition New Model No. Colo-3127 Name Industrial Electric Powder Curing Oven Application Powder Coating Material Rock Wool Board Item Industrial Electric Powder Curing Oven Voltage 220V/380V Power Supply Electric Working Size W1.2*H1.7*L3.2m Warm Board Thinkness:100-150mm Product Industrial Electric Powder Curing Oven Transport Package Bulk Specification W1.2*H1.7*L3.2m Trademark COLO Origin China HS Code 8417809090 Production Capacity 50sets/Months

Product Description

Industrial Electric Powder Curing Oven / Electrostatic Powder Curing Oven Factory supplier

Powder coating oven is for curing the workpiece which painted by powder coating , it will working on the oven more or less 20 minutes in 180 degree.

Features
1  double-side doors, can use overhead conveyors to loading the work-pieces
2 Material: rock wool board 100-150mm, to preserve the heat.
3 Circulation Fan motor:2.2kw, to make the heat spreads equally.
4 PLC Control panel, easily setting heating time and temperature.

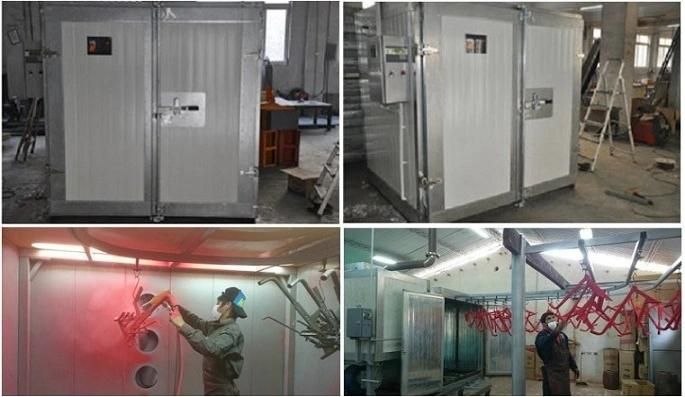

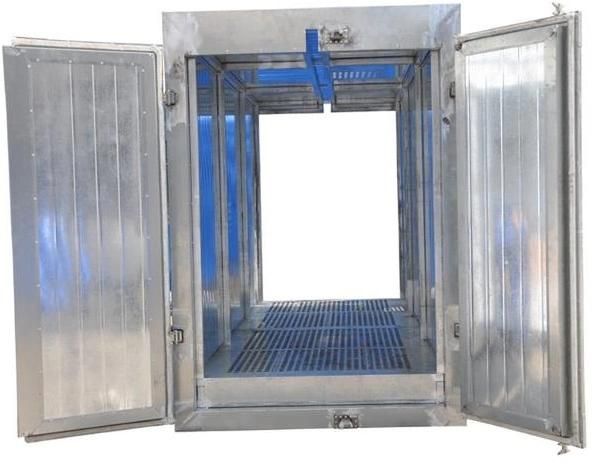

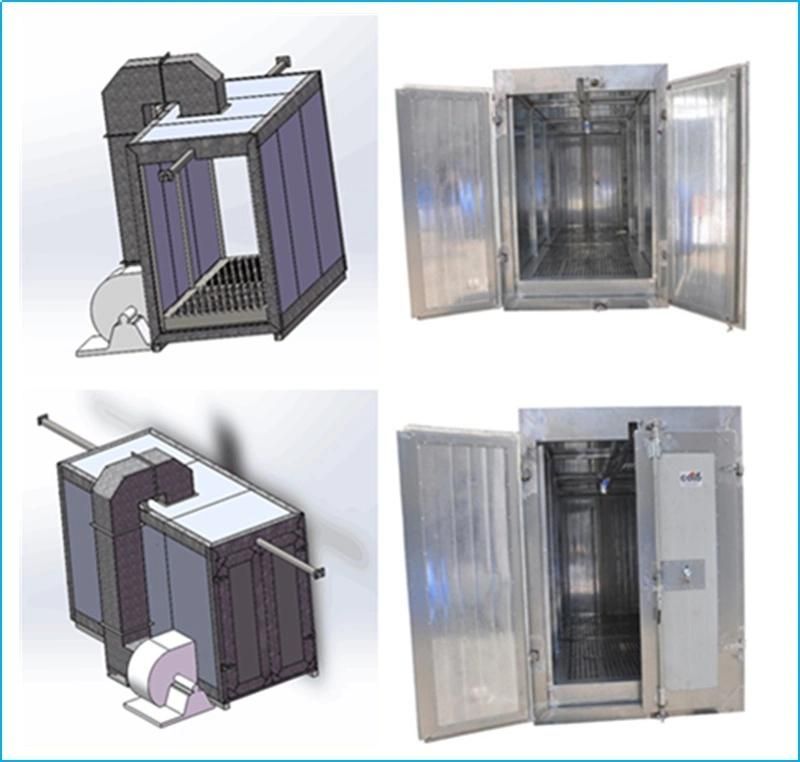

Detailed Photos of Powder Curing Oven:


Technical Data of The powder curing oven.

Model	Colo-2447
Worksize dimensions	1200width x 1700 height x3200 depth
Overall dimensions	1407 width x 2203 height x 3424depth
Power supply	Electric/ kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 1-3°C
Temperature max.	250° C
Ventilation performance	m3/h
Motor power	2.2kw
Warranty	12 months

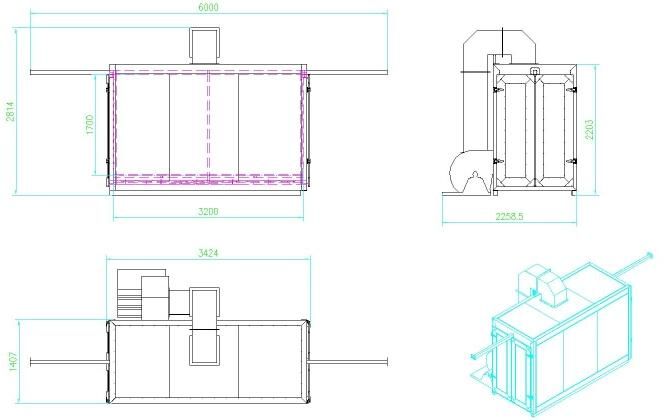

The Drawings OF COLO-2447 Electric Powder Coating Oven


Delivery : By 20' GP or 40' GP container.




Applications of powder curing oven, equip with powder coating gun and spray booth

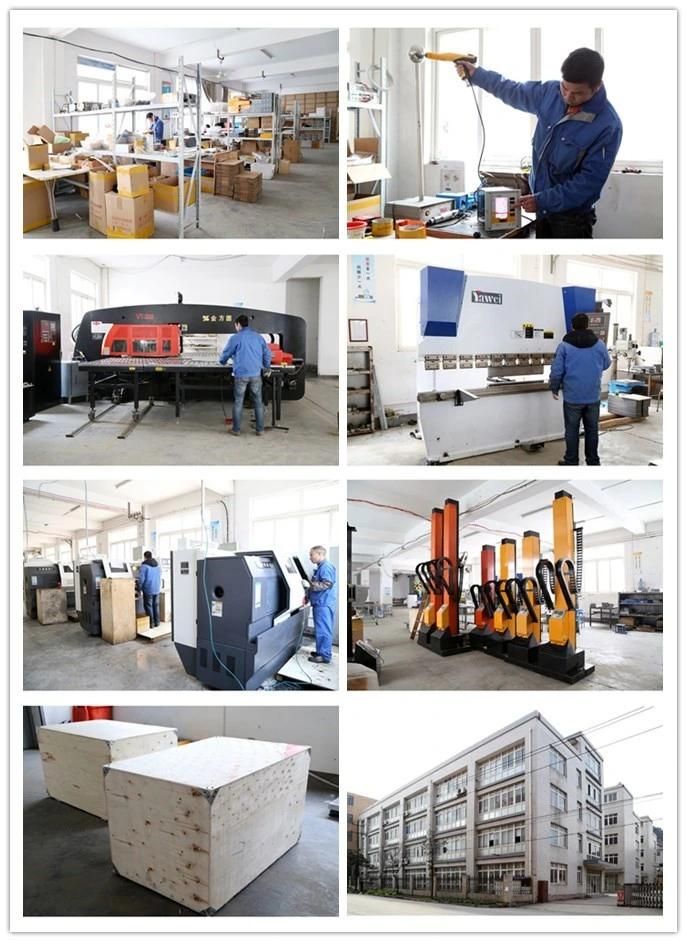

About us & Contact us!
1.   More than 10 years manufacturing experience in whole powder coating and powder painting line
2.   Afford one-stop service :reseach ,development design ,production,abroad installation, after  sale service.
3.   Customed as you want.
4.   Competitive price: we are factory.Design, produced ,installed all by ourself-save cost
5.   One year of warranty period and life long technical support.
6.   Market share in Global: about 90%, is a leading factory in this filed.

For more products detail, welcome to contact with us
