Vibration Powder Coating Machine Powder Coating Equipment China′s Industry Spray Industry Benchmark
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：1year
- Type：Powder Coating Machine
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：COLO-191S-B
- Condition：New
- Brand：Colo
- Packaging：Carton,Wood Case
- Delivery：3 Working Days After Payment
- Name：Vibration Electrostatic Powder Paint Gun
- Power Range：220V
- Frequency：50Hz
- Product：Vibration Electrostatic Powder Paint Gun
- Packing Dimension：69*56*52
- Packing Weight：45kg
- Transport Package：Carton
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：1000sets,Month
Description
Basic Info.
Model NO. COLO-191S-B Condition New Brand Colo Packaging Carton/Wood Case Delivery 3 Working Days After Payment Name Vibration Electrostatic Powder Paint Gun Power Range 220V Frequency 50Hz Product Vibration Electrostatic Powder Paint Gun Packing Dimension 69*56*52 Packing Weight 45kg Transport Package Carton Specification CE ISO Trademark COLO Origin China HS Code 8424899990 Production Capacity 1000sets/MonthProduct Description

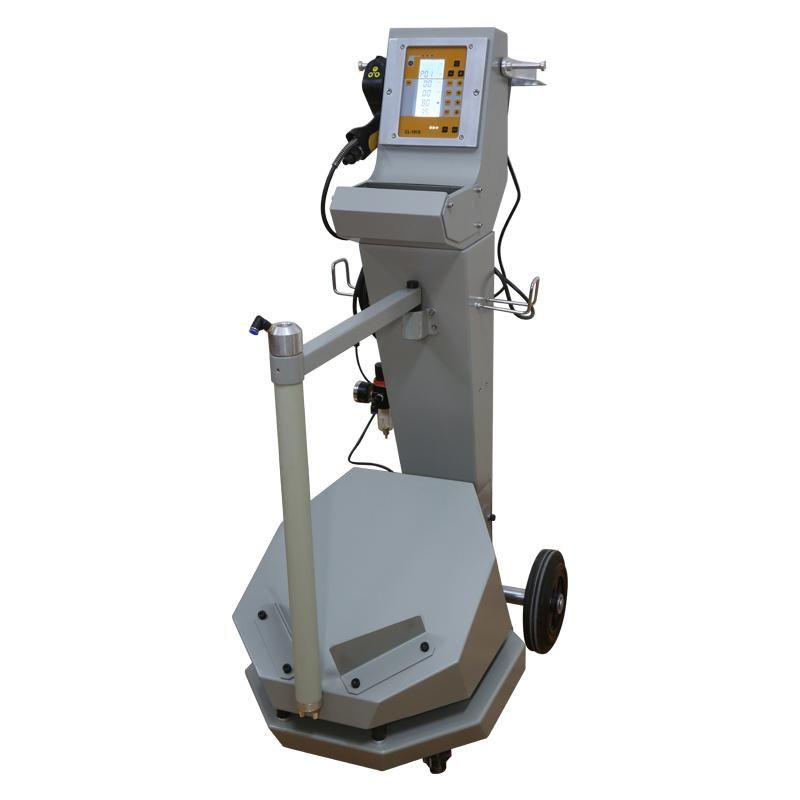

Vibration Powder coating machine powder coating equipment China's industry spray industry benchmarkModel: COLO-191S-B Vibrating Type
Excellent features of COLO-191S-B1) can easily and precisely control all pneumatic and electrostatic datas, male good powder coatoing quality2).Ensure powder output regulate, save the powder3).Easy to operato and offers 3 pre-set standard application programs for flat parts, profiles and recoating.
4) Directly put the powder box on the trolly, quick for color change.

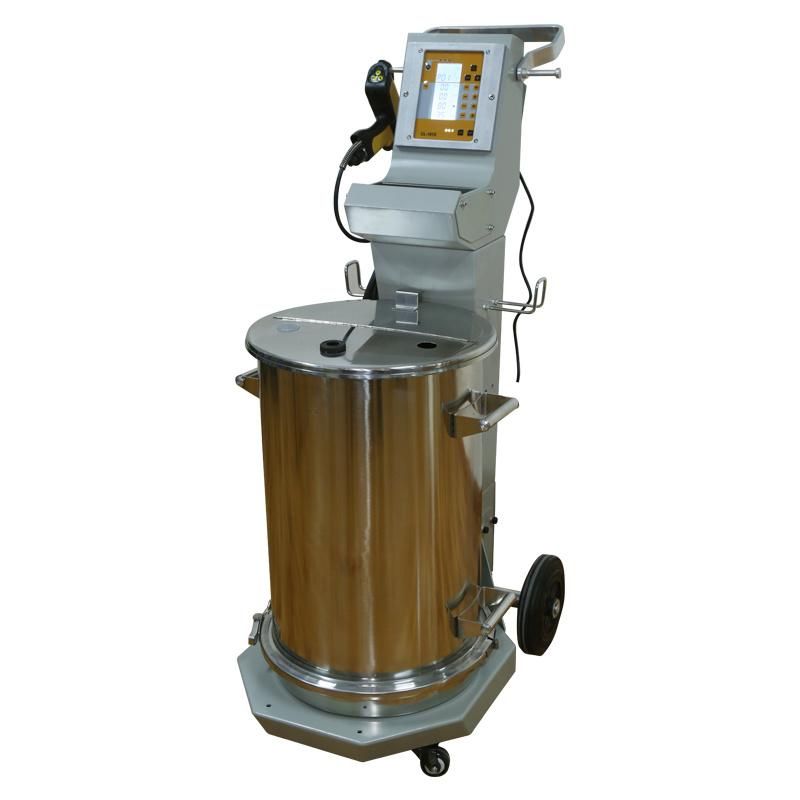

Powder Hopper Type COLO-191S
Technical Specifications
Electrical Data
| MODEL | COLO-191S-B |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |

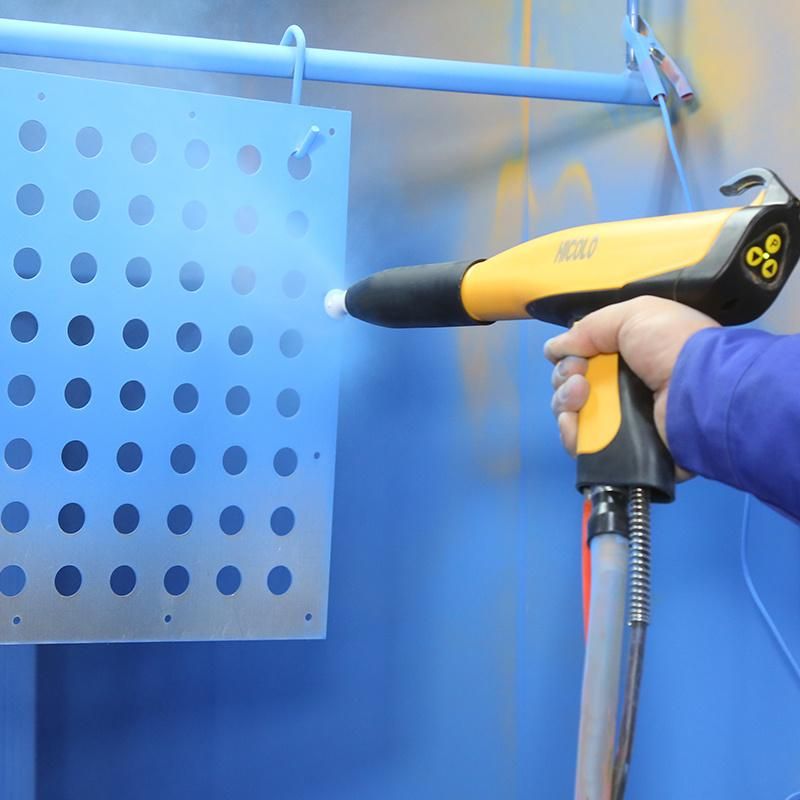

Advantages of COLO-08 Powder Spray Gun*Optimized design*Innovatine nozzle*High quality cascade*Long lifespan*Reduce operators' fatigue*Remote control of powder feeding* The weight is 500g, Light & Portable for using.
More details, contact with us
